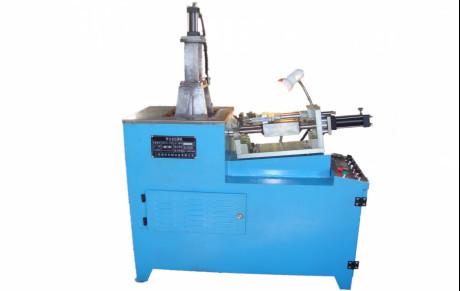

Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 380V
Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 380V
Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 380V
Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 380V
Specifications
Brand Name :
Litron
Certification :
ISO9001
Place of Origin :
China
Price :
To be negotiated
Payment Terms :
T/T
Supply Ability :
10 Set/Sets per Year
Delivery Time :
35-45 Working Days
Voltage :
380V±5％
Frequency :
50±5 Hz
Electronic Control Unit :
PID bi-directional controllable temperature controller,Contactor, circuit breaker,TRIAC
Fastest Speed of Die cast :
20／min
Tool Box :
screwdriver, pliers. Pumps，pipe 2pcs
Port :
Shanghai/ Guangzhou
Description

Horizontal Die Cast Machine For Die Casting IW Ф1-Ф3.5mm Steel Wire Rope

Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 380V

This machine mainly consists of the following eight parts:

1 Melting system: 4KW electrical heated tube ,heat crucible to 420℃

2 Hydralic system: 2P Taiwan vane pump, oil flow plate, magnetic valve

3 Mold:Adopt the original Taiwan mold size, whole series of die-casting machine is available

4 Frame parts: adopt 45# steel plate ,cut by CNC and welded together. high temperature setting,painting, good shaping and stain resistance.

5 Electronic control unit: PID bi-directional controllable temperature controller,Contactor, circuit breaker,TRIAC

6 Coling system: Coling pump,pipe,connector,cooling housing, work on die cast mold

This machine is used for die casting of IW ф1-ф3.5mm. Main features are Stable,reliable ,high precision and fast.Use 45# steel , Precison Machining,Shape material cut by CNC machine.Good appearance, strong and durable.Main guide pillar using 40 cr steel after heat treatment of the surface chromium plating. Hydraulic pump adopt Taiwan CML vane pump,low noise,the advantages of long life and not hot.Heating by electric heat pipe into the pot .Heating system with bi-directional controllable temperature controller to adjust temperature with advanced PID way.small temperature difference,good insulation,long life.This equipment is widely used in transportation, aviation, medical and other industries control cables.
Comment:
We can customerize the product to meet your need.
Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 380V
Company Profile

Company Profile

Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 380V

Chongqing Xiang Rui Jie machinery equipment Co., Ltd is a non-standard equipment manufacturer integrating design ,development ,manufacturing and sales.

Company was founded on 20th May ,2013. After serveral years of development ,taking the lead in auto producing industry ,instrument and meter,household appliances ,electronic logistics and another industries. At present the products developed by our company are : auto window regulator assembly line, automatic wiper assembly ,auto shift cable assembly line , auto cable parts and auto parts automation assemly line etc :conveyor line and opening machine, cleaning machine and other auxiliary equipment ; Assembly equipment and assembly line of electronic industrial products; Equipment and assembly line of instrument and instrument industrial products;The development and manufacture of assembly machine ,jig, mould and inspection tools of other industrial.

CERTIFICATION

Packaging & Shipping

Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 380V

Our Services

1. OEM Manufacturing welcome : Product ,Package

2. Sample Order

3. We will reply you for you inquiry in 24 hours .

4. After sending , we will track the products for you once every two days , until you get the products . When you

got the goods , test them, and give us feedback . If you have any question about the problem , contact with us

, we wil help you solve the problem .

Horizontal Die Cast Auto Cable Machine For 3.5mm Steel Wire Rope 380V
