Helical Gear Rack Driven Manual Linear Stage With Hand Wheels On Both Sides
Helical Gear Rack Driven Manual Linear Stage With Hand Wheels On Both Sides
Helical Gear Rack Driven Manual Linear Stage With Hand Wheels On Both Sides
Helical Gear Rack Driven Manual Linear Stage With Hand Wheels On Both Sides
Helical Gear Rack Driven Manual Linear Stage With Hand Wheels On Both Sides
Helical Gear Rack Driven Manual Linear Stage With Hand Wheels On Both Sides
Specifications
Brand Name :
PDV
Model Number :
PT-SD103P(200)
Place of Origin :
Beijing, China (Mainland)
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
2-3 weeks
Packaging Details :
Carton or wooden box packaging
Platform Size :
90mm×240mm
Travel Range :
200mm
Load capacity :
20kg
Actuator Type :
Bevel Wheel & Rack
Parallelism :
50μ
Driving Parallelism :
40μ
Description

200mm Travel Helical Gear Rack Driven Manual Linear Stage With Hand Wheels On Both Sides

This precision manual translation platform is made of aluminum alloy, with high sensitivity. It uses a dovetail auxiliary guide rail, and has a large bearing capacity. Use the helical gear rack for displacement adjustment. This series of products has good sensitivity. There are two stroke specifications available: 75mm and 200mm, which can be used alone or combined with other displacement tables to form a multi-dimensional system.

Product features:

■ The guide rail is a dovetail pair with large bearing capacity.

■ The displacement adjustment adopts a helical gear ruler with large driving force.

Large handwheels on both sides, flexible and lightweight in rotation, and the handwheel can be lengthened according to user needs.

■ Vernier reading, adjusting quantitative.

■ Mounting holes with standard hole spacing are distributed on the table and base, facilitating installation and assembly.

■ It can form a multi-dimensional adjustment rack or form a multi-dimensional adjustment with other series of products.

Product specification

Model Number PT-SD103P(200)
Platform Size 90mm×240mm
Travel Range 200mm
Actuator Type Bevel Wheel & Rack
Drive Position Center
Minimum Scale 0.02
Minimum Adjust Distance 10μm
Travel Guide Dovetail
Load capacity 20kg
Accuracy 0.01mm
Straightness 30μ
Parallelism 50μ
Driving Parallelism 40μ
Weight 2.3kg
Material – Finish Aluminum Alloy - Black-Anodized

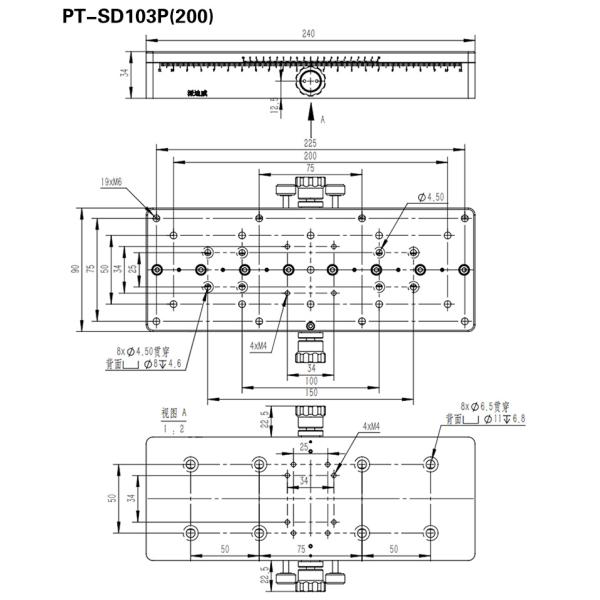

Product Size

Helical Gear Rack Driven Manual Linear Stage With Hand Wheels On Both Sides

Helical Gear Rack Driven Manual Linear Stage With Hand Wheels On Both Sides

Introduction to technical indicators of precision manual translation platform:

Accuracy: The maximum difference between the actual position and the ideal position for a given input.

Resolution: refers to the minimum position increment that can be resolved by the mobile system.

Load capacity: refers to the combined force allowed to act on the center of the translation table and perpendicular to the direction of movement and the working table.

Repetitive positioning accuracy: refers to the ability of the translation system to reach a fixed point multiple times.

Helical Gear Rack Driven Manual Linear Stage With Hand Wheels On Both Sides
