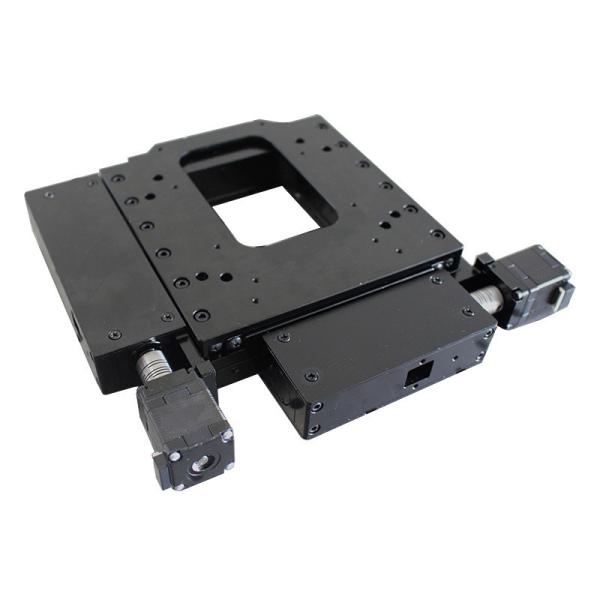

XY Motorized Double Axis Linear Stage PT-XY2560

Product performance:

The standard configuration is a 28 step motor and RS232 interface, which can be automatically controlled using the company's independently developed motion controller;

The product structure is compact and lightweight, suitable for use under light loads, low speeds, repeated scans, and scientific experiments;

Precision grinding TBI lead screw drive, small lead, same fineness can achieve high resolution;

The ingenious structure design of the void elimination nut can reduce the clearance of the grinding lead screw pair to Z small;

Precision THK cross roller guide rail, comfortable movement, with lateral adjustment of guide rail preload and clearance elimination functions;

Precise grinding of the bottom plate of the electric moving table and reasonable fixing method of the guide rail greatly reduce the pitch and yaw of the electric moving table, and greatly improve the straightness and parallelism of the movement

The hollow design in the middle of the platform allows for placement of light sources and light transmission;

High product life, X-axis movement approaching 6.6 million times (within the range of travel); Y-axis movement is close to 2.6 million times (within the range of travel);

Platform motion characteristics: X-axis - small stroke motion (0.35mm), fast start and stop; Y-axis - small stroke movement (0.25mm), gap start and stop;

XY motorized double axis linear stage Product specification:

F&Q

Q: Are you a trading company or a manufacturer?

A: We are a factory.

Q: How long is your delivery time?

A: If the goods are in stock, it usually takes 5 days. Or 15-20 days, depending on the quantity if the goods are not in stock.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples for testing, but you need to pay the sample fee and shipping costs.

Q: What are your terms of payment?

A: Payment<=$2000, 100% prepaid. Payment>=$2000, 50% in advance, balance settled before shipment.
