XY Manual Linear Stage Linear Optical Sliding Table PT-XY135 Trave:±13mm, Load:40kg

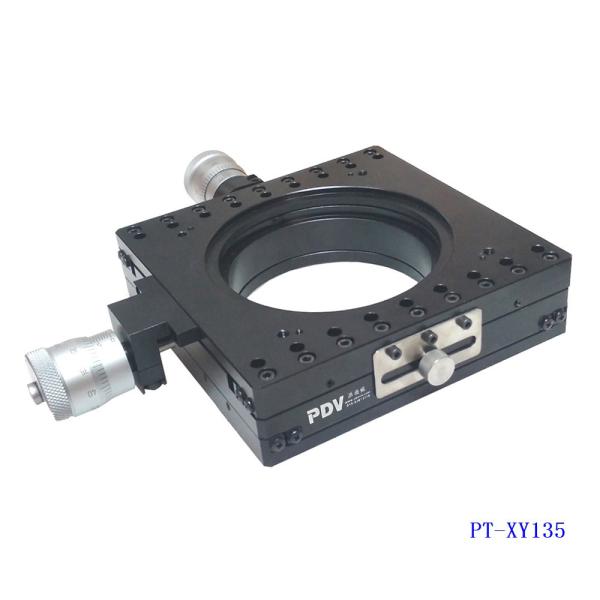

XY Manual Linear Stage: PT-XY135

Product characteristics:

■ Precise processing of duralumin material, surface anodized and blackened.

■ Adopt high-precision cross roller guide rail, with high precision, large bearing capacity and long service life.

■ High-precision base and table ensure the straightness, deflection, pitch and motion parallelism of the translation table.

■ Displacement adjustment is driven by micrometer head or differential micrometer head.

■ High-precision and small-resolution micrometer head ensures the micro-displacement adjustment of the product at nanometer level.

■ The micrometer head is placed in the center of the translation table, which is easy to operate.

■ Spring return is adopted to eliminate axial clearance.

■ The installation holes with standard hole spacing are distributed on the table and base for convenient installation and combination.

■ It can form a multi-dimensional adjustment frame with other series of displacement tables.

■ Grating ruler can be added to display the small displacement.

Product parameters:

Product dimension drawing:

Product details

1. High accuracy

The worm gear and worm structure with precision grinding is adopted, which can rotate freely in forward and reverse directions and has very little backlash.

2. Low noise

The imported high-quality elastic coupling is used for connection, the transmission is synchronous, the anti-bias performance is good, and the eccentric disturbance is greatly reduced and the noise is low.

3. Strong function

The scale circle on the periphery of the table top is a laser marking scale. The scale can rotate relative to the table top to facilitate the initial positioning and reading. The limit function can be added. The initial zero position can be replaced by a servo motor.
