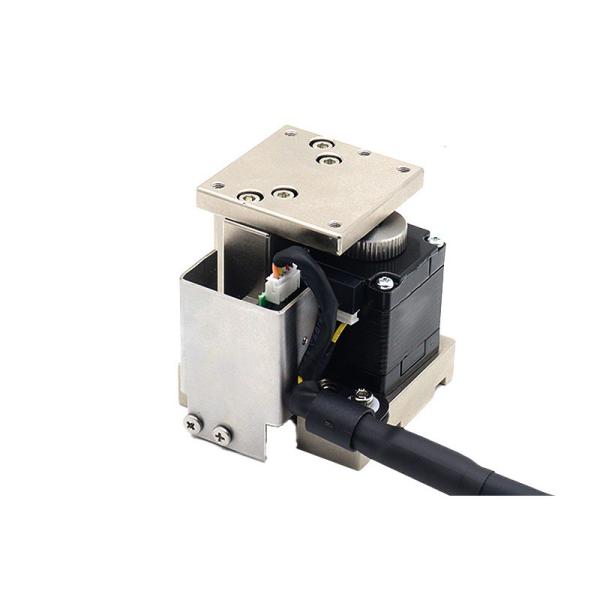

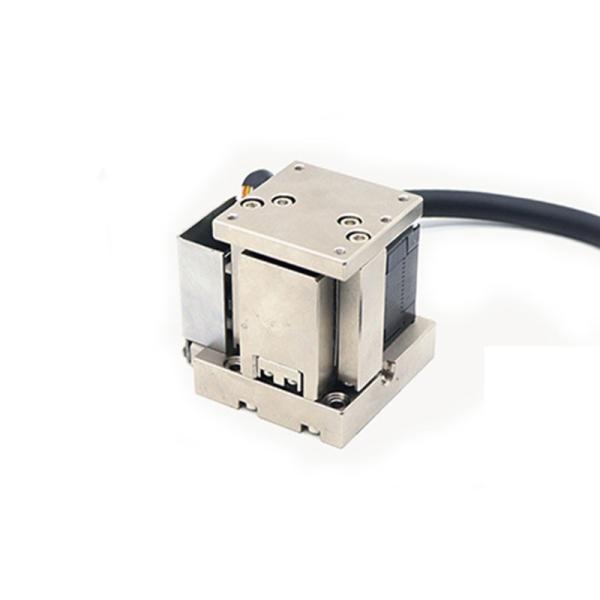

Linear Ball Screw Fine Adjustment Optical Experimental Electric Lifting Platform

The electric lifting platform is driven by ball screw, which has high load capacity, greatly reduced return clearance, and higher motion accuracy and positioning accuracy. The main material is high quality stainless steel, guided by four linear bearing guide rails to ensure smooth operation during high load movement. Product travel range of three specifications optional: 6mm/8mm/10mm, can meet most of the travel requirements. This electric lifting slide is especially suitable for precision optical experiment, precision positioning, precision machining and other fields with small load capacity and small stroke.

Product specification of electric lifting platform

◎ The standard joint type of the product is D-SUB.

◎ If the outgoing line of the organization needs to be HRS, please inform separately.

◎ General outgoing line is standard, regardless of left and right outgoing lines.

Remarks:

The above is an economical configuration, including one 35cm long ordinary cable, one D-SUB15pin male connector, one Xinnong 28 stepper motor, and one photoelectric switch. The basic parameters are designed and produced according to the standard travel. If the customer has other technical requirements, the specific price shall be subject to the actual offer.

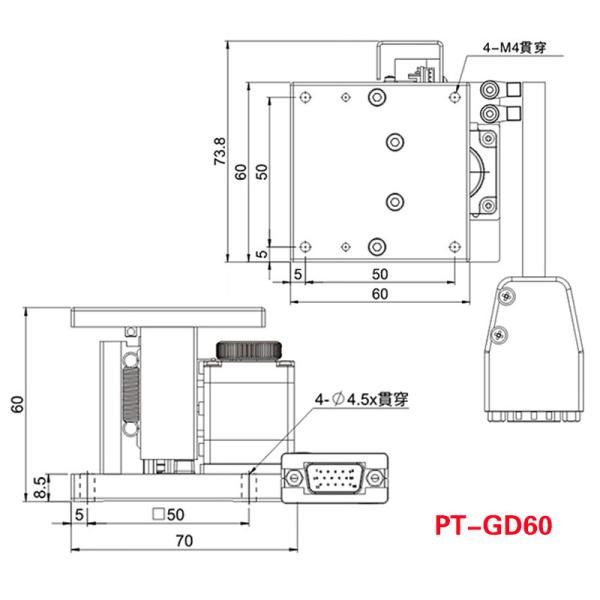

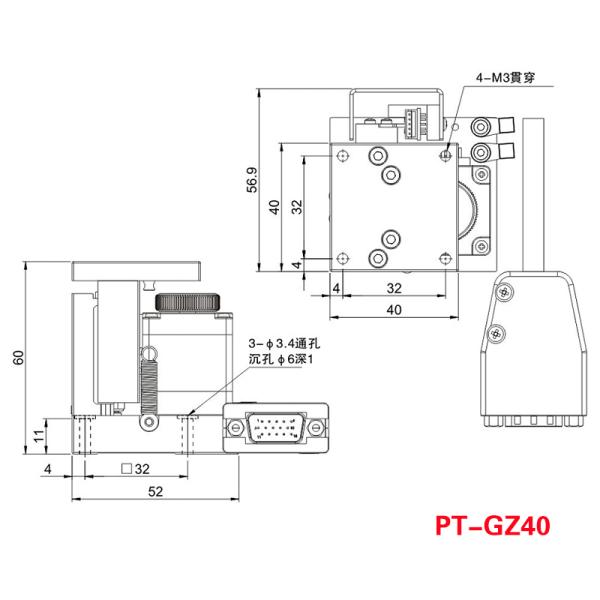

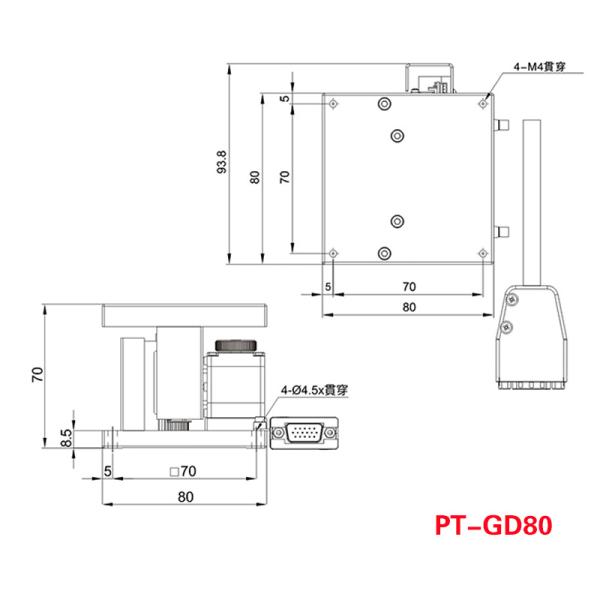

Dimensional drawing of electric lifting platform

Features of high-precision electric lifting platform

1. High-quality stainless steel main material, without electrolytic nickel treatment on the surface, has good durability, uniform color and beautiful appearance.

2. Precision grinding screw drive is adopted, with smooth movement and strong durability.

3. Precision linear guide rail is adopted, and the movement is stable.

4. Standard connection holes are designed on the bottom and the table, which are convenient for connection and fixation, and have strong applicability.

5. It can be combined with other types of tables to form a multi-dimensional electric adjustment table, and can also be replaced with servo motors to accept product modification and customization.

Electric lifting platform is used in the field

The products are widely used in industrial automatic detection, intelligent robots, intelligent transportation, automotive electronics, aerospace, optical communication, laser technology, medical devices and other fields.
