Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage
Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage
Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage
Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage
Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage
Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage
Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage
Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage
Specifications
Brand Name :
PDV
Model Number :
PT-SD76
Place of Origin :
Beijing, China (Mainland)
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
1-2 weeks
Packaging Details :
Carton or wooden box packaging
Platform Size :
60mm*60mm
Mobile Mechanism :
Hand Screw Type
Central Hole :
Ø15mm/Ø6.2mm
Travel Range :
±2°
Load :
4kgf
Net Weight :
0.161kg
Material :
7075 Aluminum Alloy
Description

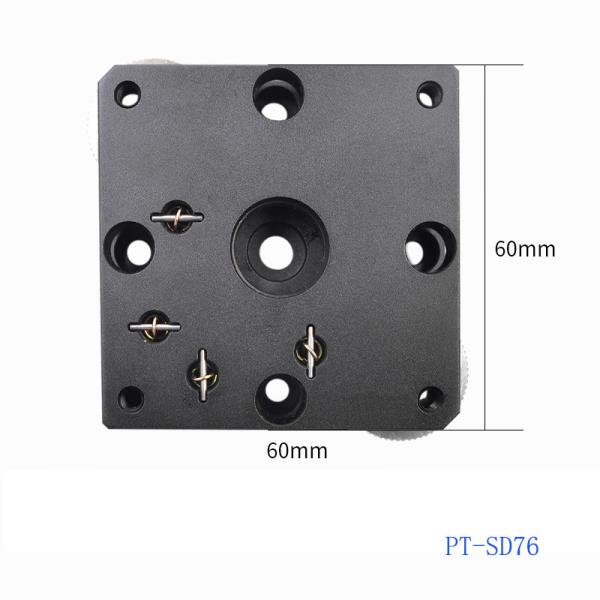

Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage

The manual horizontal tilt stage is widely used for positioning with cameras, sensors, etc. It can be combined with displacement tables, direct motion tables, optical lens calibration and adjustment sensors for positioning; Used for two-dimensional position adjustment of optical components, fine adjustment of XY axis spatial positioning, and other purposes.

Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage

Product characteristics

1. The horizontal tilt stage can be combined with displacement table, direct motion table, optical lens calibration and adjustment sensor for positioning;

2. Maximum adjustable ± 4 º tilt resistance load (4 kgf);

3.There is a 6mm through-hole on the bottom surface for fixation;

4. The 16mm screw hole on the workbench can be used in conjunction with various optical components;

5. M4 threaded holes are opened at the four corners of the countertop to allow for the installation of optical components;

Product specification parameters

Model Number

PT-SD76

PT-SD77

Platform Size

60mm*60mm

60mm*60mm

Mobile Mechanism

Hand Screw Type

Hand Screw Type

Central Hole

Ø15mm/Ø6.2mm

Ø15mm/Ø20mm

Travel Range

±2°

About 40′0° per week

Load

4kgf

4kgf

Weight

0.161kg

0.156kg

Material

7075 aluminum alloy

7075 aluminum alloy

Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage

Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage

Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage

Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage

Manual Horizontal Tilt Dual Axis Fine Adjustment Chamber Positioning Stage

The manual linear stage of PDV has multiple travel options, ranging from 6mm to 50mm, and even longer large area platforms. Most displacement and translational platforms can be assembled into a multi axis system, providing XY or XYZ multi axis translation. In addition to standard linear displacement tables, we also provide rotary displacement tables, pitch deflection displacement tables, and angle displacement tables.
