Lifting Translation Rotation XYZR Manual Four-Dimensional Mobile Stage

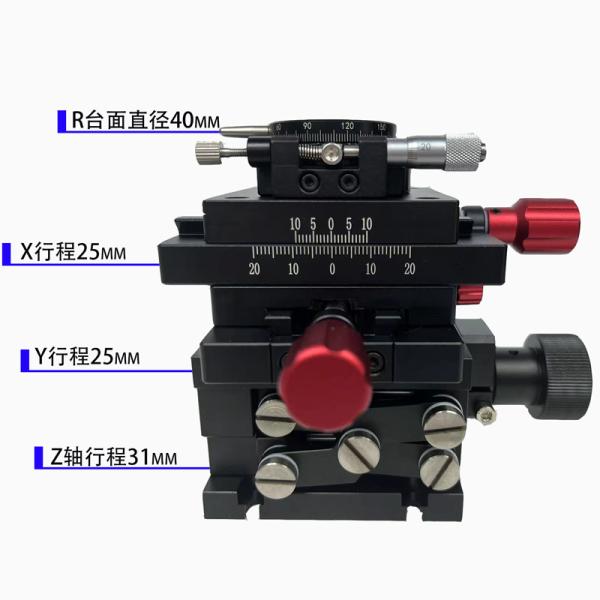

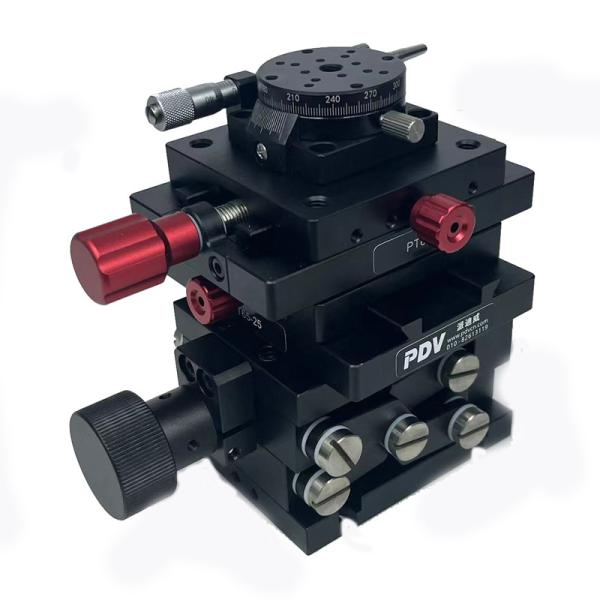

This manual multi-dimensional adjustment displacement stage is composed of a manual lifting stage PT-SD31, two manual linear stages PT65-25, and one manual rotary stage PR40-L. XY travel 25mm, R diameter 40mm, Z-axis lifting travel 31mm.

There are various types of manual displacement stages with complete combination methods. It is widely used in scientific research institutions, fully automated measurement and inspection, industrial automation and other fields, and can achieve automatic displacement control in vacuum, pollution, aseptic, radiation and other environments. From the direction of movement, it can be divided into horizontal displacement direction, namely the X-axis (Y); Vertical lifting direction, i.e. Z-axis; Vertical rotation direction, i.e. R-axis: Horizontal rotation direction, i.e. G-axis. Arbitrary combinations between each axis help meet the user's various spatial requirements and the precision displacement of each degree of freedom.

Product parameters of Manual Four-Dimensional Mobile Stage

Manual Lifting Stage PT-SD31

Model Number

PT-SD31

Platform

60x80mm

Travel Range

31mm

Distance per Circle

1.8mm

Load Capacity

6kgf(58.8N)

Parallelism

200μm

Weight

0.7kg

Surface Material

Aluminum Alloy - Black-Anodize

Lifting Translation Manual Rotation Stage Xyzr Four Dimensional Mobile

Manual Linear Satge PT65-25

Model Number

PT65-25

Travel(mm)

25

Platform size(mm)

65*65

Body length(mm)

90

Thickness(mm)

20

Guide rail

Dovetail auxiliary guide rail

Driving mode

Grinding lead screw,Ø8×1

Drive position

Center drive

Main material and surface
treatment

Aluminum alloy, black anodized

Weight(kg)

0.3

Minimum reading(mm)

0.1

Horizontal load(kg)

1.0

Vertical load(kg)

5

Lifting Translation Manual Rotation Stage Xyzr Four Dimensional Mobile

Manual Rotation Stage PR40-L

Item Number

PR40-L

Plarform Size

φ38

Travel

360 ° coarse adjustment, ± 5 ° fine adjustment

load

9.8N(1kgf)

Material

Aluminium alloy

Minimum scale

10’

Concentricity

0.03mm

Parallelism

0.03mm

Weight

0.1kg
