Small Angle Adjustment Swallowtail Slider Drive Manual Goniometer Stage PT-SD82

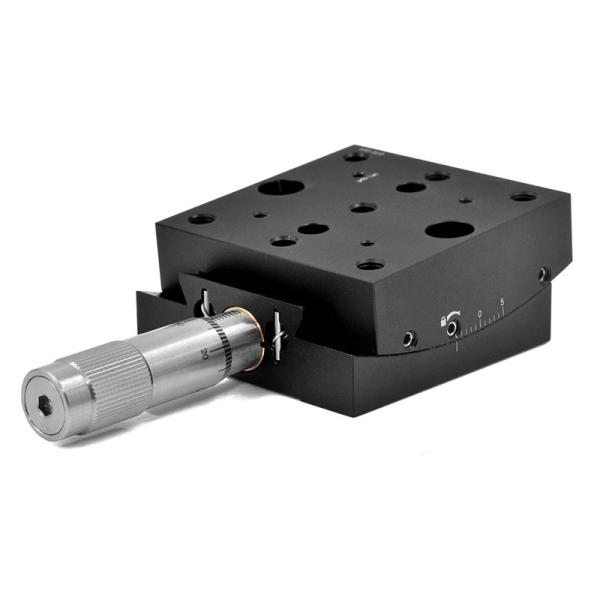

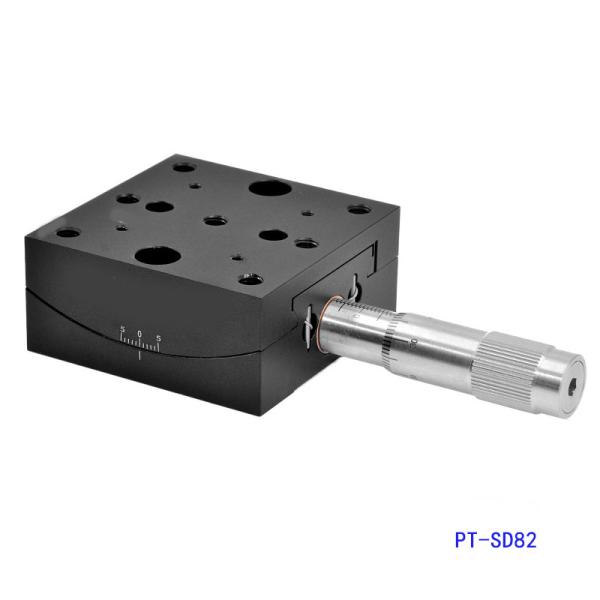

The PT-SD82 manual angle displacement staf is a device used to accurately rotate objects within a small angle range, rotating around a fixed point in space. This angle measuring rotary table uses a precision dovetail slider driven by a driver and spring loaded to reduce recoil that is common in worm gear driven platforms. The spring loaded design has the additional advantage of interchangeable actuators, allowing for the selection of adjustment sensitivity from various actuators such as precision adjustment screws, differential micrometers, or electric actuators.

Product characteristics of manual goniometer stage

1. No recoil spring load design, detachable and interchangeable with multiple actuators.

2. The side mounted fixing screws can be used to fully lock the platform.

3. When used with a vernier micrometer head, PT-SD82 provides ± 5 ° rotational motion, while PT-SD83 provides ± 10 ° rotational motion;

4. Pure rotational motion around virtual points;

5. The edge has a mark with a division of 1 °.

Product specificationof manual goniometer stage

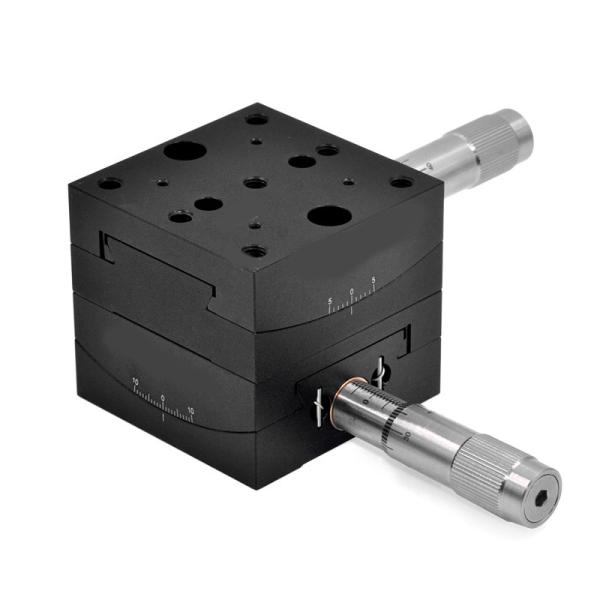

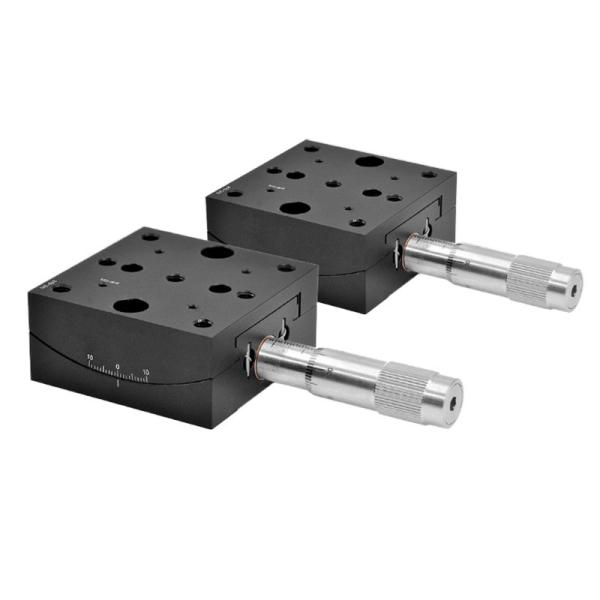

The angle displacement table can achieve unobstructed pure rotational motion around the rotation point within the rotation angle range. The compact design that can be stacked allows the angle displacement table to be fixed to the upper surface of another angle displacement table, with the rotation points of the two angle displacement tables overlapping.

The precise dovetail design, combined with a recoil free screw and micrometer head, enhances the angle positioning ability of the top plate, providing accurate and repeatable positioning. The locking screws on the side of the platform can be used to lock the platform and lock the movement on the displacement platform.

When used with a vernier micrometer head, the PT-SD82 manual angle table has a ± 5 ° rotational motion and can be securely locked onto the movement on the moving table using the hexagonal screws on the side of the platform.

The angle displacement table has a threaded hole array for installation, including 7 M6 and 4 M3 threaded holes. Easy to connect the optical components to the displacement table. This series can be stacked through M6 countersunk mounting holes or installed on mini series bread boards.
