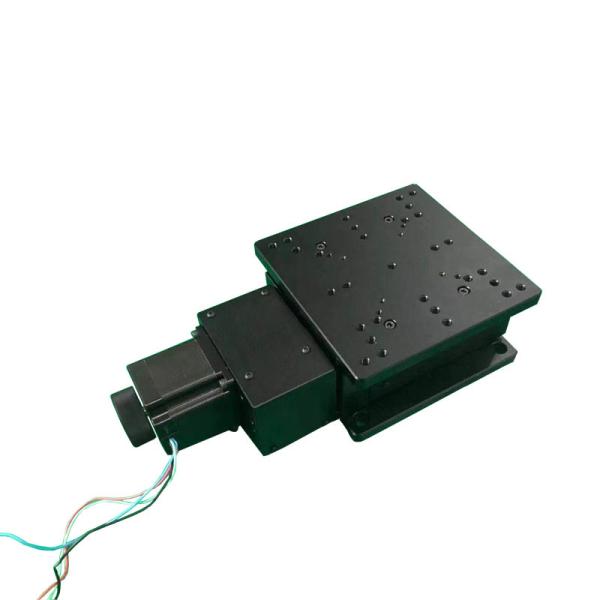

70mm Height High Precision Motorized Lab Jack Z Axis Sliding Table
70mm Height High Precision Motorized Lab Jack Z Axis Sliding Table
Specifications
Brand Name :
PDV
Model Number :
PT-GD148
Place of Origin :
Beijing, China (Mainland)
MOQ :
1piece
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Delivery Time :
1-2 weeks
Trip :
20mm
Platform Size :
148mm×148mm
Height :
70mm
Material :
Hard aluminum alloy
Surface Treatment :
Anodizing blackening
Weight :
4.5kg
Table parallelism :
0.03mm
Motor type :
Two phase 58 step motor
Description

High Precision Electric Lifting Table , Elevator , Z Axis Sliding Table , Lifter

High Precision Motorized Lab Jack PT-GD148

The standard two-phase stepping motor can provide high resolution and positioning accuracy, so that it has high motion accuracy. The main material is made of high-strength aluminum alloy and treated with oxidized black on the surface, which has good wear resistance, uniform color and exquisite appearance. This product is very suitable for precision instruments and equipment, automation systems, industrial production lines and so on.

Product characteristics

The main material of high-strength aluminum alloy, with black oxide treatment on the surface, has good durability, uniform color and exquisite appearance.

Unique design, high strength, large load capacity, compact structure, smooth movement and strong durability.

Precise linear guide rail is adopted to ensure smooth movement.

It has limit function and initial zero function.

It can be combined with other types of tables to form a multi-dimensional electric adjustment table.

Product specification

Structure description

Product Model

PT-GD148

Platform Size

148mm×148mm

Height (base height)

70mm

Trip

20mm

Table bearing: dynamic load

20kg

Main material

Hard aluminum alloy

surface treatment

Anodizing blackening

Dead weight

4.5kg

Accuracy description

Screw specifications

Precision screw rod: lead: 1mm

Repeatability accuracy

Level P:±0.015mm Level U:±0.005mm

Table parallelism

0.03mm

Electrical specifications

Motor type

Two phase 58 step motor

Limit sensor model

Panasonic photoelectric switch

Cable

Sell separately

Product Dimension Map
