Xyz Three Axis Displacement Manual Lab Jack Linear Stage With Handwheel
Xyz Three Axis Displacement Manual Lab Jack Linear Stage With Handwheel
Xyz Three Axis Displacement Manual Lab Jack Linear Stage With Handwheel
Xyz Three Axis Displacement Manual Lab Jack Linear Stage With Handwheel
Xyz Three Axis Displacement Manual Lab Jack Linear Stage With Handwheel
Xyz Three Axis Displacement Manual Lab Jack Linear Stage With Handwheel
Xyz Three Axis Displacement Manual Lab Jack Linear Stage With Handwheel
Xyz Three Axis Displacement Manual Lab Jack Linear Stage With Handwheel
Specifications
Brand Name :
PDV
Model Number :
PT-80-50+PT-SD408, PT-80-100+PT-SD408, PT-80-150+PT-SD408
Place of Origin :
Beijing, China (Mainland)
MOQ :
1piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
1-2 weeks
Material :
Aluminum Alloy
Surface Preparation :
Black-Anodized
Lifting Stage Platform :
120mm x 80mm
Lifting Stage Driving Mode :
Comminution Lead Screw
Lifting Travel :
15kg
Lifting Stage Minimum Adjustment :
5
Description

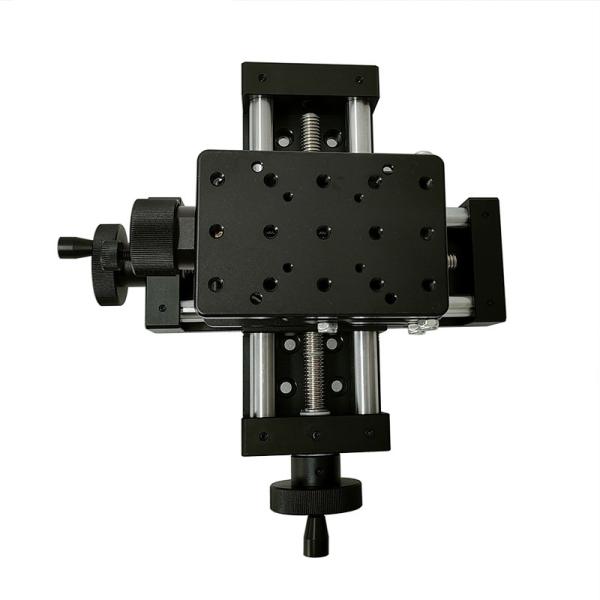

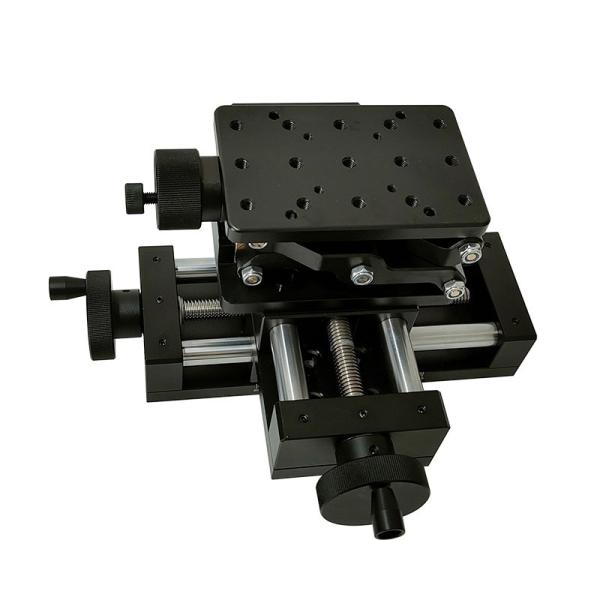

XYZ Three Axis Displacement Stage Manual Lab Jack Linear Stage With Handwheel

The XYZ manual three-dimensional stage is composed of two manual linear stages and a manual lab jack. The linear stage has three specifications: PT80-50, PT80-100 and PT80-150. The manual lab jack adopts pt-sd408 with a lifting travel of 60mm.

Advantage

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages, High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.

If our standard doesn't meet your needs, you can customize it.

Matters needing attention:

We're glad you're working with us. In order to save your time, when choosing products, please check the parameters or communicate with our sales, so as to avoid your purchase of products, because the parameters are inconsistent with your use requirements, delay your schedule. We thank you again for your support.

Precision Manual Linear Stage PT80-50/100/150

Specification

Subject Guide axle Handwheel Feed screw
Material Quality Surface Treatment Material Quality hardness Surface Treatment Texture of material Surface Treatment Material quality
AI6063 Black Anodizing GCr15(Bearing steel) HRC56 Hardness chromium AI6063 Clear Anodizing 0Cr18Ni9(304) Stainless steel

Model Slide table (mm) Mixtravel (mm) Z(mm) A(mm) B(mm) Load tolerance level (N) weight(g)
PT80-50 80*80 50 25 100 170 196 2.2
PT80-100 100 50 150 220 196 2.4
PT80-150 150 75 200 270 196 2.8

Xyz Three Axis Displacement Manual Lab Jack Linear Stage With Handwheel

PT-SD408 Precision Manual Lab Jack

Product parameters:

Model Number PT-SD408
Platform 120mm x 80mm
Driving Mode Comminution Lead Screw
Travel Range 60mm
Minimum Adjustment 5
Load Capacity 20Kg
Weight 1.15Kg
Material Duralium
Surface Preparation Black-Anodized

PT-SD408 Product dimension drawing:

Xyz Three Axis Displacement Manual Lab Jack Linear Stage With Handwheel
