Xyr Angle Motorized Rotation Stage Left And Right Adjustment Xy Axis Travel 100mm
Xyr Angle Motorized Rotation Stage Left And Right Adjustment Xy Axis Travel 100mm
Xyr Angle Motorized Rotation Stage Left And Right Adjustment Xy Axis Travel 100mm
Xyr Angle Motorized Rotation Stage Left And Right Adjustment Xy Axis Travel 100mm
Xyr Angle Motorized Rotation Stage Left And Right Adjustment Xy Axis Travel 100mm
Xyr Angle Motorized Rotation Stage Left And Right Adjustment Xy Axis Travel 100mm
Xyr Angle Motorized Rotation Stage Left And Right Adjustment Xy Axis Travel 100mm
Xyr Angle Motorized Rotation Stage Left And Right Adjustment Xy Axis Travel 100mm
Specifications
Brand Name :
PDV
Model Number :
PT-XY100+PX110-200
Place of Origin :
Beijing, China (Mainland)
MOQ :
1piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
1-2 weeks
Rotation Range :
360°
Rotation Stage Platform Size :
φ100mm
Rotation Stage Max Velocity :
25°/sec
X,Y Axis travel :
100mm
Material :
Aluminum Alloy
Travel Guide :
Precise Crossed Roller Bearing
Description

XYR Angle Stage Left And Right Adjustment Stage XY Axis Travel 100mm, 360 ° Rotation

Product description

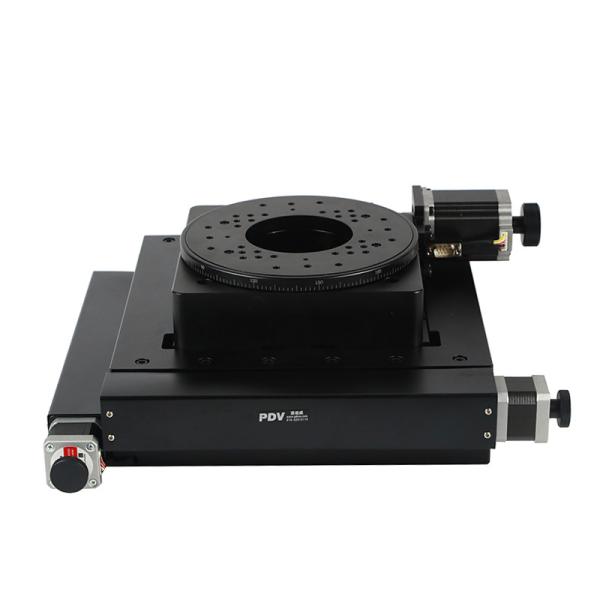

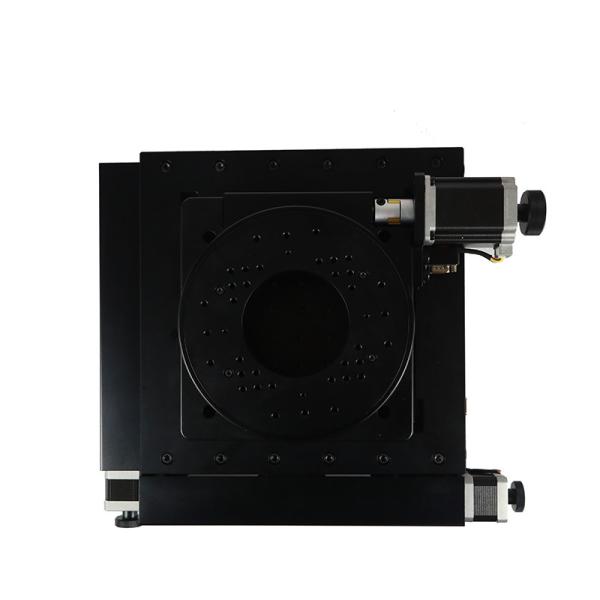

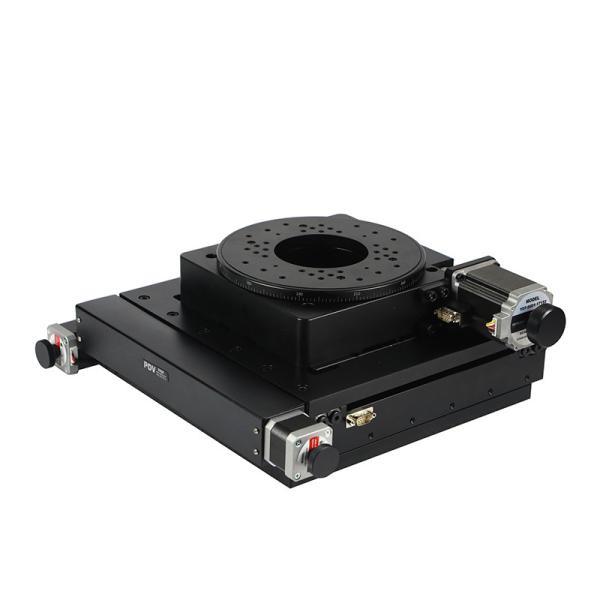

This XYR electric three-dimensional table is composed of PX110-200 electric rotary table and PT-XY100 electric left and right adjustment table. The rotary table can rotate 360 ° continuously, and the XY axis stroke of the electric left and right adjustment table is 100mm.

PDV is an independent high-tech R & D enterprise integrating optics, precision machinery and automatic control technology. Since the establishment of the company, we have been serving scientific research institutes and universities. We have developed hardware and software systems (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. After long-term unremitting efforts, we have provided good services to customers in the construction of optical path control system. We have grown into a reputable manufacturer in scientific research, colleges and universities, mechanical automation and other fields.

Product parameters:

Model Number PT-XY100 Model Number PX110-200
Structure Travel Range(mm) 100mm

Structure

 Rotation Range 360°
Platform Size 300mm x 300mm Platform Size φ200mm
Screw Guide 4 Worm Gear Ratio 180 : 1or 90:1or 45:1(Choose one of the three)
Travel Guide Precise Crossed Roller Bearing Drive Mechanism Worm Gear
Stepper Motor 42(1.8°) Guide rail form Bearing
Material Aluminum Alloy Stepper Motor (1.8°): 57BYG
Surface Preparation Black-Anodized Material Aluminum Alloy
Load Capacity(kg) 50 Surface Preparation Black-Anodized
Weight(kg) 8.3 Load Capacity 55kg
Accuracy Resolution(μm) 20(Non MS), 2.5(8 MS) Weight 7.9kg
Max Velocity 40mm/sec

Accuracy

 Resolution

0.01°=36″(Non MS),

0.0005°=1.8″(20MS)
Repeatability(μm) 2 Max Velocity 25°/sec
Absolute Accuracy(μm) 3 Repeatability 0.005°=18″
Straightness(μm) 5 Absolute Accuracy 0.01°=36″
Moving Parallelism(μm) 15 End jump accuracy 15μ
Pitching 50" Empty return 0.005°=18″
Yawing 25" eccentric 20μ
Backlash(μm) 2 Lose step 0.005°=18″
Lost Motion(μm) 2 Parallelism 100μ
Accessory Installing Grating Ruler (Optional)
Reloading Servo Motor (Optional)

Product dimension drawing:

PT-XY100

Xyr Angle Motorized Rotation Stage Left And Right Adjustment Xy Axis Travel 100mm

PX110-200

Xyr Angle Motorized Rotation Stage Left And Right Adjustment Xy Axis Travel 100mm
