Miniature Motorized Lab Jack XZ Two-Dimensional Linear Lifting Combined Stage

Product description

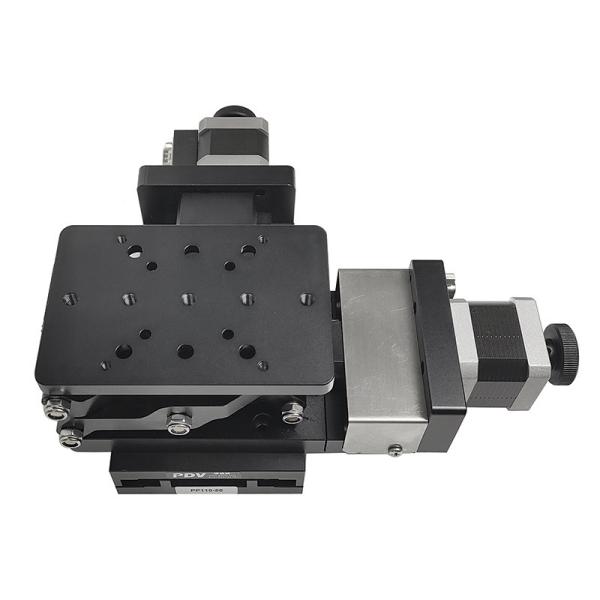

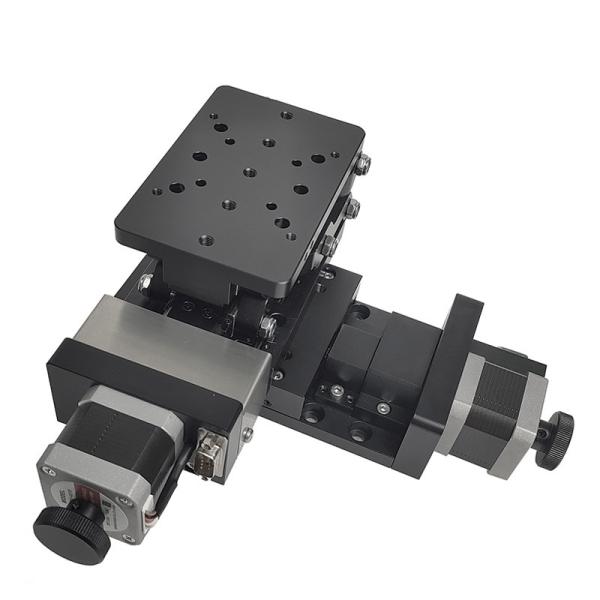

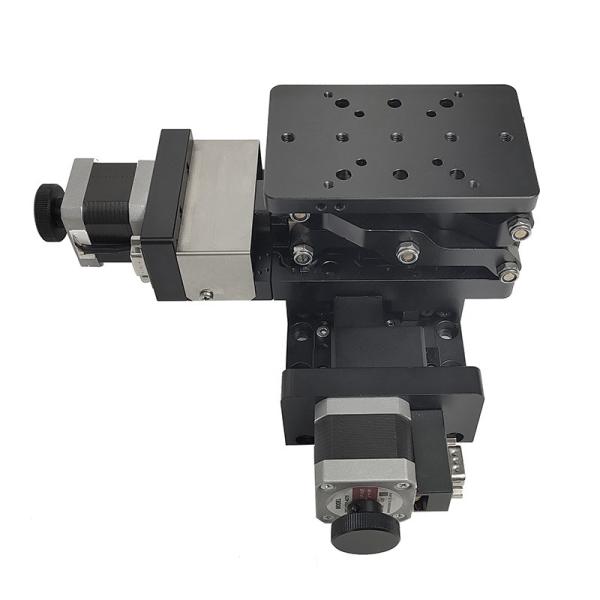

This motorized two-dimensional combination stage is composed of an motorized linear stage and an motorized lab jack . The motorized linear stageis available in three travel specifications: 30mm, 50mm and 75mm. The lifting travel of the motorized lab jack is 60mm.

Precision motorized linear stage (cross roller): pp110 - (30-75)

Product characteristics:

■ the stepper motor is equipped with 9-pin interface as standard, which can be automatically controlled by the company's motion controller.

■ the product structure is small and light, which is suitable for light load, low-speed use and scientific test.

■ high quality fine grinding lead screw drive, small lead, the same fine fraction can achieve high resolution.

■ the ingenious structural design of air elimination check nut can minimize the clearance of grinding lead screw pair.

■ the guide rail adopts cross roller guide rail, which is comfortable to move. It has the function of laterally adjusting the guide rail preload and eliminating clearance, and can be used in multi-dimensional combination.

■ the fine grinding of the bottom plate of the electric moving table and the reasonable fixing mode of the guide rail reduce the pitch and yaw of the electric moving table, and greatly improve the straightness and parallelism of the movement.

■ the stepping motor and grinding screw are connected through high-quality elastic coupling, with synchronous transmission, good depolarization performance, reduced eccentric disturbance and low noise.

■ equipped with hand wheel for easy commissioning.

■ limit switches are installed at both ends to facilitate accurate positioning and protection of products.

■ the base has threaded holes and through holes with standard hole spacing, which is convenient for installation and fixation.

■ optional replacement of servo motor and grating ruler, and accept product restructuring and customization.

Precision Motorized Lab Jack (Scissor Type): PT-GD401

Product features:

■ standard stepper motor, which can be automatically controlled by the company's zd-kz series motion controller

■ the lifting platform adopts shear type lifting support, double guide rails and five axis positioning mechanism to ensure stable movement, large bearing and long service life

■ it is driven by precision grinding and matching lead screw, which is comfortable to move, can rise and fall arbitrarily and has small empty return

■ the stepping motor and screw rod are connected through high-quality elastic coupling, with synchronous transmission and good depolarization performance, greatly reducing eccentric disturbance and low noise.

■ the electric lifting table is placed horizontally and can be combined with other types of tables to form a multi-dimensional electric adjustment table

■ it has limit function and initial zero function. It is equipped with servo motor and rotary encoder. It accepts product restructuring and customization.
