Multi Station Table Top Diameter 560mm Super Large Table Electric Rotary Table

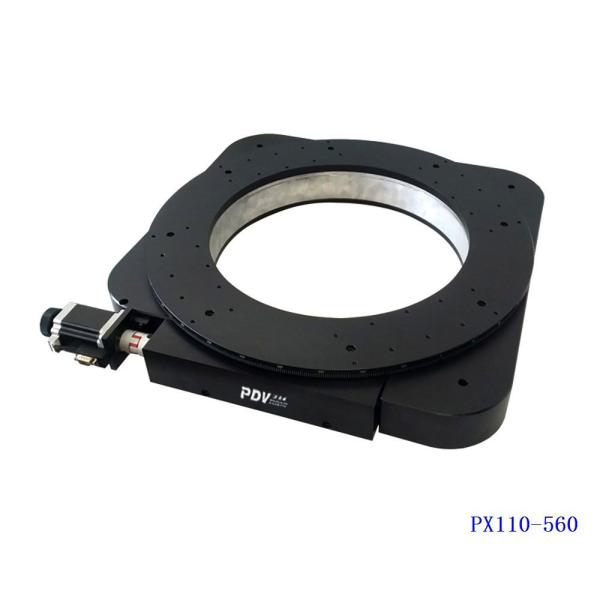

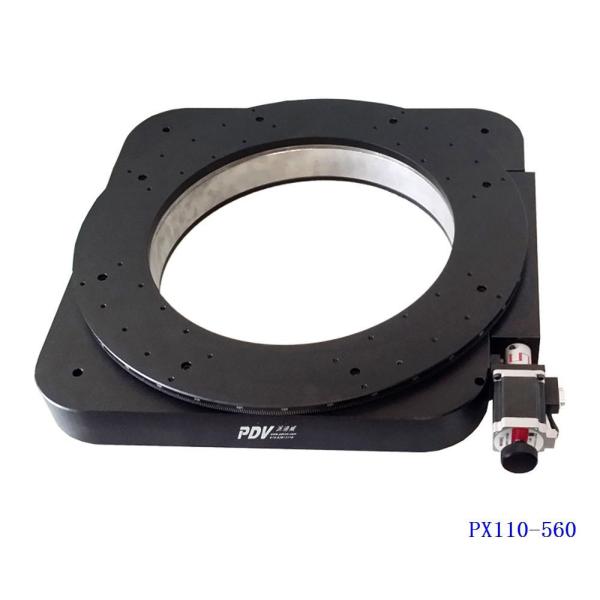

Precision electric rotary table (worm gear)PX110-560

Product features

Does the standard stepper motor using my company independent research and development of the motion controller for the automated control.

Does the rotating precision processed using multi-channel technology, with high precision, bearing large, long service life.

Does adopts precision lapping with worm gear and worm structure, movement and comfortable, can be arbitrary forward and reverse rotation and returned empty.

Does well-designed returned empty structure, adjustable caused by long-term use of air gap back.

Does the structure of the special design guarantees the jump and eccentric rotary table very low end, make rotation movement is more stable.

Does rotary table at the center of the hole with the rotation center have strict alignment requirements, rotary table at the center of the aperture with strict tolerance limit, facilitating the clients to do precision positioning.

Does mesa of the outer ring is laser score scale, scale can turn relatively mesa, convenient initial locating and reading.

Does the stepping motor and worm by importing high quality elastic coupling connection, transmission synchronization, eliminate partial performance is good, greatly reduces the eccentric disturbance and noise is small.

Does electric rotary tables can be used flat and vertical use, can be adjusted and other kinds of counter multidimensional electric machines.

Does can increase the limit function, increase the initial zero, change the servo motor, equipped with rotary encoder, accept the restructuring and customized products.

Product specification

Product diagram
