210mm×150mm Manual Lab Jack Heavy Duty Anodizing Blackening
210mm×150mm Manual Lab Jack Heavy Duty Anodizing Blackening
210mm×150mm Manual Lab Jack Heavy Duty Anodizing Blackening
210mm×150mm Manual Lab Jack Heavy Duty Anodizing Blackening
210mm×150mm Manual Lab Jack Heavy Duty Anodizing Blackening
210mm×150mm Manual Lab Jack Heavy Duty Anodizing Blackening
210mm×150mm Manual Lab Jack Heavy Duty Anodizing Blackening
210mm×150mm Manual Lab Jack Heavy Duty Anodizing Blackening
Specifications
Brand Name :
PDV
Model Number :
PT-SD412
Place of Origin :
Beijing, China (Mainland)
MOQ :
1piece
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Delivery Time :
1-2 weeks
Platform size :
210mm×150mm
Driving mode :
Fine grinding lead screw drive
Lifting stroke :
120mm
Minimum adjustment :
10μ
Material Science :
6061 duralumin
Surface treatment :
Anodizing blackening
load bearing :
30kg
Dead weight :
3.8kg
Description

Heavy Duty Lifting Platform , Precision Manual Lift SlideTable PT - SD412

In order to meet the different needs of different customers, we adjust the length and size of platform stroke and table, such as a series of products, and the platform can be combined into four dimensional, five dimensional, six dimensional multi-dimensional platform, to meet the adjustment of different directions and different angles.

Product features:

1. Scissor lifting mechanism, compact structure, large stroke, strong load capacity;

2. Using fine grinding screw drive to ensure absolutely smooth and comfortable movement, with locking;

3. The main material is high strength aluminum alloy, surface oxidation black treatment, good durability, beautiful appearance;

4. The upper and lower sides of the porous design, strong applicability, can be used as mounting surface, equipped with locking handwheel, safe and reliable;

5. Both the base and the table are equipped with connecting holes with standard hole spacing, which can be combined with other displacement tables to form multi-dimensional adjustment tables.

Product Specifications:

Model

PT-SD412

Platform size

210mm×150mm

Driving mode

Fine grinding lead screw drive

Lifting stroke

120mm

Minimum adjustment

10μ

load bearing

30kg

Dead weight

3.8kg

Material Science

6061 duralumin

Surface treatment

Anodizing blackening

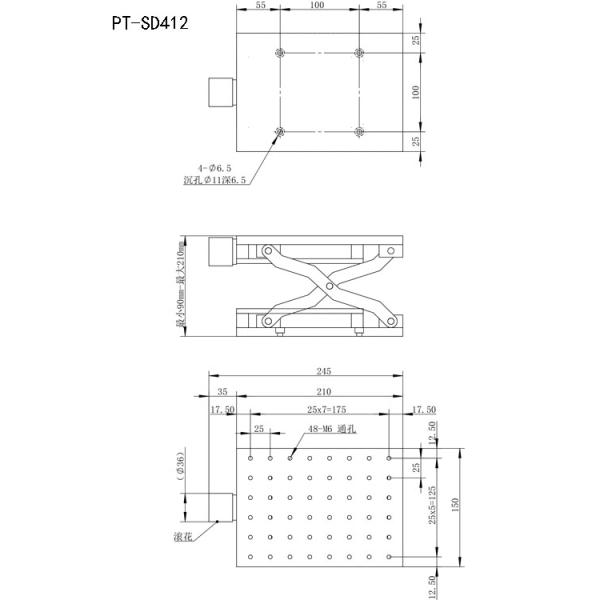

Product Dimension Map:

210mm×150mm Manual Lab Jack Heavy Duty Anodizing Blackening
