Micrometer Head Linear Bearing Scissor Lift Work Table 13mm Travel
Micrometer Head Linear Bearing Scissor Lift Work Table 13mm Travel
Specifications
Brand Name :
PDV
Model Number :
PT-SD406
Place of Origin :
Beijing, China (Mainland)
MOQ :
1piece
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Delivery Time :
1-2 weeks
Travel Range :
13mm
Actuator Type :
Micrometer Head
Platform :
62mm x 44mm
Travel Guide :
Linear Bearing
Minimum Readout :
0.01mm
Positional Accuracy :
5μm
Load Capacity :
2Kgs
Weight :
0.05kgs
Description

13mm Travel Linear Table , Z Axis Lifting Table, Height Adjustment Table PT-SD406

Manual lifting height adjustment table: PT-SD406

Product features:

■ High quality linear bearing guide rail, high precision.

■ Double guide rail over positioning structure to ensure smooth and comfortable movement.

Micrometer head direct drive, differential head reading.

■ Lifting platform spring reset, eliminate empty return.

■ Table with φ12mm hole can be directly connected with the rod.

■ Base and table are standard hole spacing connection hole, convenient to connect with other displacement table, forming a multi-dimensional mobile table.

Application area:

Microelectronics, optical communication, science and universities, fiber laser, ultra-precision laser processing, ultra-precision THREE-DIMENSIONAL scanning measurement, automatic measurement instrument testing equipment, industrial automation and other fields.

Product Specifications:

Item Number

PT-SD406

Travel Range

13mm

Actuator Type

Micrometer Head

Platform

62mm x 44mm

Travel Guide

Linear Bearing

Minimum Readout

0.01mm
Positional Accuracy 5μm
Minimum Adjust Distance 2μm
Parallelism 100μm
Straightness 20μm
Driving Parallelism 40μm

Material – Finish

Aluminum Alloy - Black-Anodized

Load Capacity

2Kgs

Weight

0.05kgs

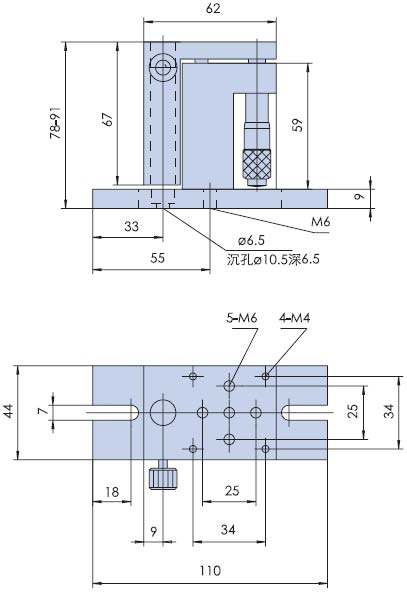

Product Dimension Map:

Micrometer Head Linear Bearing Scissor Lift Work Table 13mm Travel
