Specifications
Brand Name :
PDV
Model Number :
PT-GD40
Place of Origin :
Beijing, China (Mainland)
MOQ :
1piece
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Delivery Time :
1-2 weeks
Platform Size :
40×40mm
Lifting stroke :
6mm
Transmission mode :
1/2 wedge, grinding screw, pitch 1 mm
Surface treatment of main materials :
Black Anodic Oxidation
Center load :
2.5Kg
Mix speed :
5mm/sec
Accuracy of one-way positioning :
≤50μm
Gap clearance :
≤10μm
Description

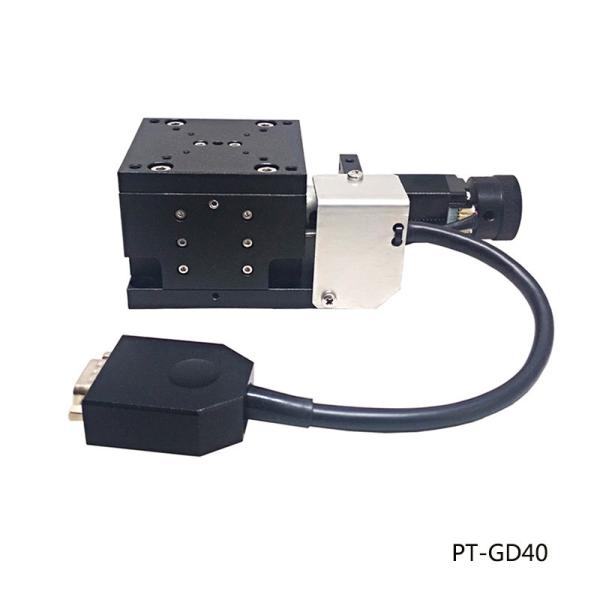

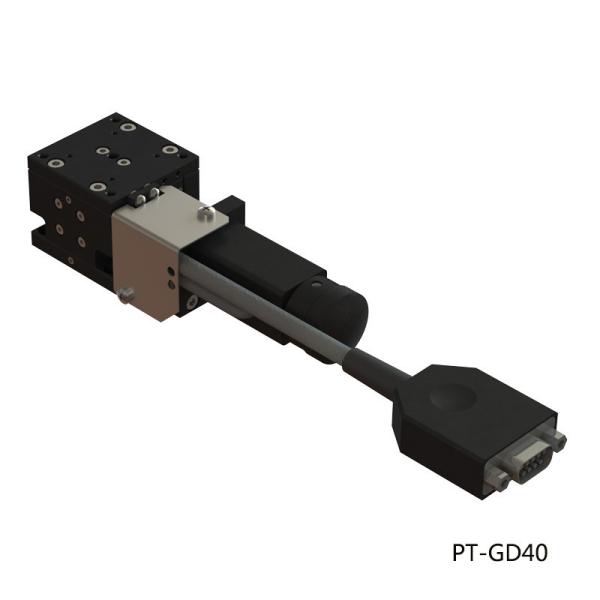

Small Motorized Lab Jack Electric Elevator Lifting Platform PT-GD40

Characteristic:

The main material of high-strength aluminum alloy, with black oxide treatment on the surface, has good durability, uniform color and exquisite appearance. High strength, large load capacity and compact structure.

It adopts precise research and matching lead screw transmission, with smooth movement and strong durability.

Precise linear guide rail is adopted to ensure smooth movement.

It has limit function and initial zero function.

The connection between the table top and the bottom is convenient, and the applicability is strong.

It can be combined with other types of tables to form a multi-dimensional electric adjustment table, and can also be replaced with servo motors to accept product restructuring and customization.

Product specification

Model

PT-GD40

Platform Size

40×40mm

Lifting stroke

6mm

Transmission mode

1/2 wedge, grinding screw, pitch 1 mm

Guide form

Precision cross roller guide

Main material

High Strength Aviation Aluminum (6061)

Surface treatment of main materials

Black Anodic Oxidation

Instrument weight

0.3Kg

Center load

2.5Kg

Resolution 8 subdivision/step

0.000625mm/0.005mm

Mix speed

5mm/sec

Accuracy of one-way positioning

≤50μm

Repeated positioning accuracy

≤20μm

Gap clearance

≤10μm

Surface runout

≤30μm

Motor type

Double Out Shaft 20 Stepper Motor

Stepping angle of motor

1.8°

Rated working current

1A

supply voltage

24V±10%

Joint

DB9 needle connector

Limit switch

Photoelectric switch

Product Dimension Map

Small Motorized Electric Hydraulic Scissor Lift Lab Scissor Lift 6mm Stroke
