10mm Travel Linear Slide Axis Motorized Lab Jack With Grinding Screw
10mm Travel Linear Slide Axis Motorized Lab Jack With Grinding Screw
10mm Travel Linear Slide Axis Motorized Lab Jack With Grinding Screw
10mm Travel Linear Slide Axis Motorized Lab Jack With Grinding Screw
10mm Travel Linear Slide Axis Motorized Lab Jack With Grinding Screw
10mm Travel Linear Slide Axis Motorized Lab Jack With Grinding Screw
10mm Travel Linear Slide Axis Motorized Lab Jack With Grinding Screw
10mm Travel Linear Slide Axis Motorized Lab Jack With Grinding Screw
10mm Travel Linear Slide Axis Motorized Lab Jack With Grinding Screw
10mm Travel Linear Slide Axis Motorized Lab Jack With Grinding Screw
Specifications
Brand Name :
PDV
Model Number :
PT-GD404
Place of Origin :
Beijing, China (Mainland)
MOQ :
1piece
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Delivery Time :
1-2 weeks
Travel Range :
10mm
Dimension of Platform :
50mm×74mm
Drive Mechanism :
Grinding Screw
Load Capacity :
10kg
Weight :
1.5kgs
Max Velocity :
5mm/sec
Repeatability :
7μm
Lost Motion :
3μm
Description

Electric Lifting Platform , Motorized Lab Jack , 10mm Travel Linear Slide Axis

High precision electric lifting platform: PT-GD404

Product features

■ Standard step motor 9 pin interface, the company's motion controller can achieve automatic control.

■ The lifting platform system adopts scissor-type lifting support, double guide rail and five axis over positioning mechanism, smooth movement, large load bearing and long life.

■ Precision grinding with screw drive, comfortable movement, can be arbitrary lifting and small return.

■ Stepper motor and screw are connected by high quality elastic coupling, synchronous transmission, good depolarization performance, reduce eccentric disturbance and low noise.

■ The electric lifting platform is flat and can be used with other kinds of platforms to form a multi-dimensional electric adjustment platform.

■ Limit function, optional: initial zero function, replace servo motor, add rotary encoder, accept product restructuring and customization.

Product specification

Item Number PT-GD404
Structure Specifications Travel Range 10 mm
Dimension of Platform 50mm x 74mm
Drive Mechanism Grinding Screw
Travel Guide Crossed- Roller Bearing
Stepper Motor (1.8°) SST42D2121 - Stepping Motor with 2-Phases & 1.8° of Step Angle
Material – Finish Aluminum Alloy - Black-Anodized
Load Capacity 10kg
Weight 1.5kg
Accuracy Specifications Minimum Adjust Distance 5μm Non-MS Driver; 0.25μm/Pulse, 20MS Driver
Max Velocity 5mm/sec
Repeatability 7μm
Backlash 4μm
Lost Motion 3μm

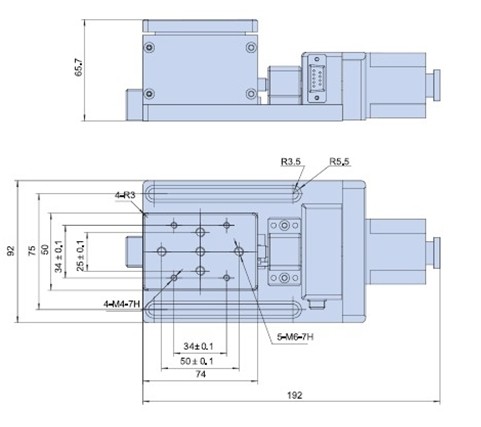

Product Dimension Map

10mm Travel Linear Slide Axis Motorized Lab Jack With Grinding Screw
