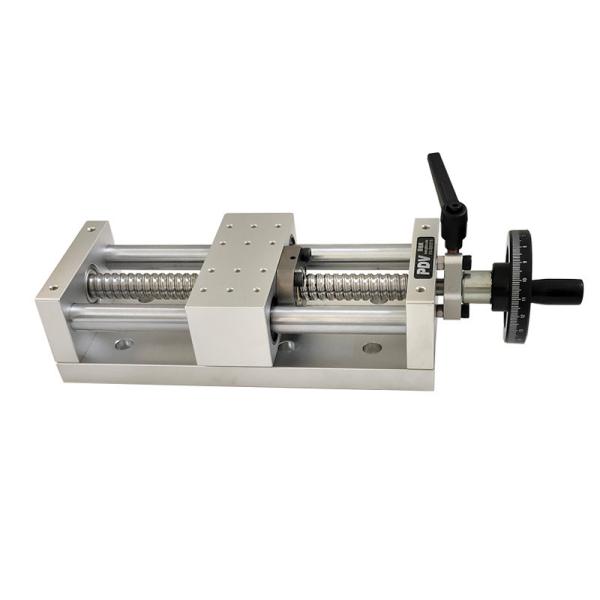

Ball Screw Manual Linear Stage
Ball Screw Manual Linear Stage
Ball Screw Manual Linear Stage
Ball Screw Manual Linear Stage
Ball Screw Manual Linear Stage
Ball Screw Manual Linear Stage
Ball Screw Manual Linear Stage
Ball Screw Manual Linear Stage
Ball Screw Manual Linear Stage
Ball Screw Manual Linear Stage
Specifications
Brand Name :
PDV
Model Number :
PT-LX100 , PT -LX200 , PT-LX300 , PT-LX400
Place of Origin :
Beijing, China (Mainland)
MOQ :
1piece
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Delivery Time :
1-2 weeks
Linear Bearing :
LM16UU
Weight Bearing :
50KG
Material :
Aluminum
Guide Rail Specification :
16mm
Lead :
5mm
screw specification :
ball screw 1605
Description

Linear Module Ball Screw Linear Sliding Table Displacement Table With Locking

Product description

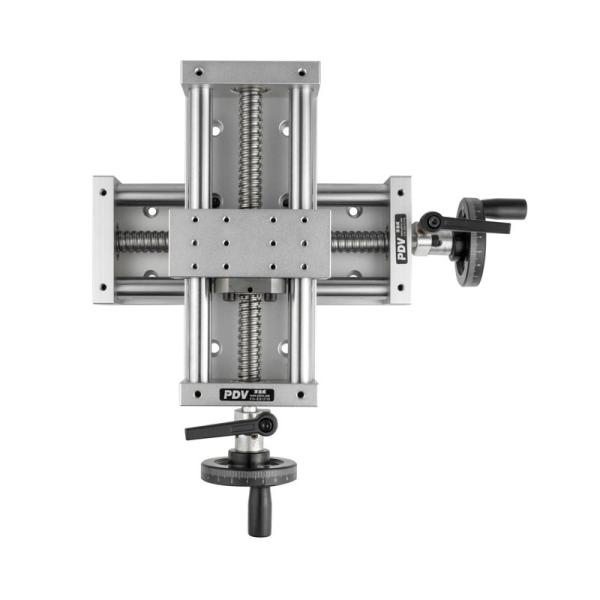

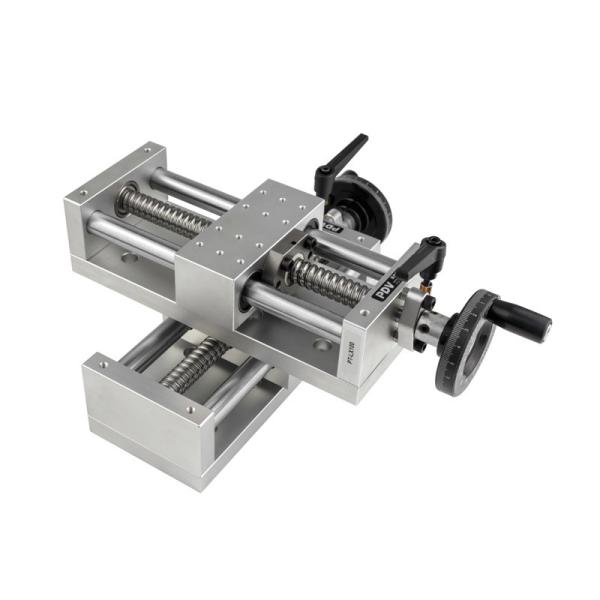

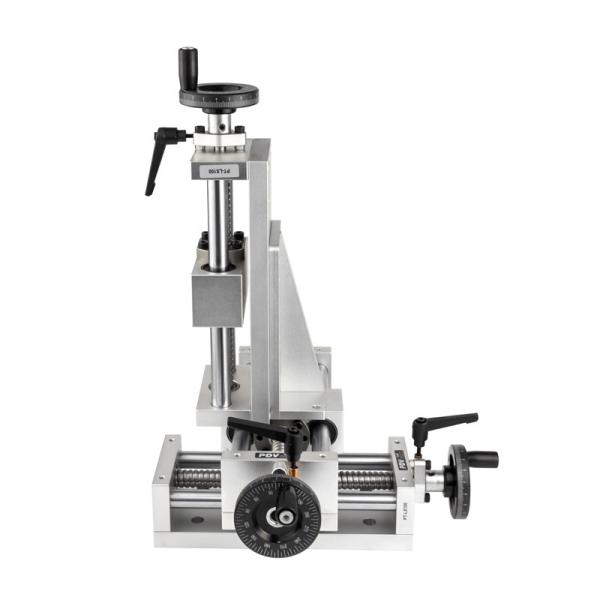

Flexible and convenient composition XYZ

★ screw specification: ball screw 1605

★ guide rail specification: 16mm

★ lead: 5mm

★ aluminum thickness: 15mm model: 6061

★ high precision and heavy load;

★ repeat positioning accuracy up to ± 0.02mm

Product specification

Model

Travel(mm)

Linear Bearing

Weight Bearing

PT-LX100

130mm

LM16UU

50KG

PT-LX200

230mm

LM16UU

50KG

PT-LX300

330mm

LM16UU

50KG

PT-LX400

430mm

LM16UU

50KG

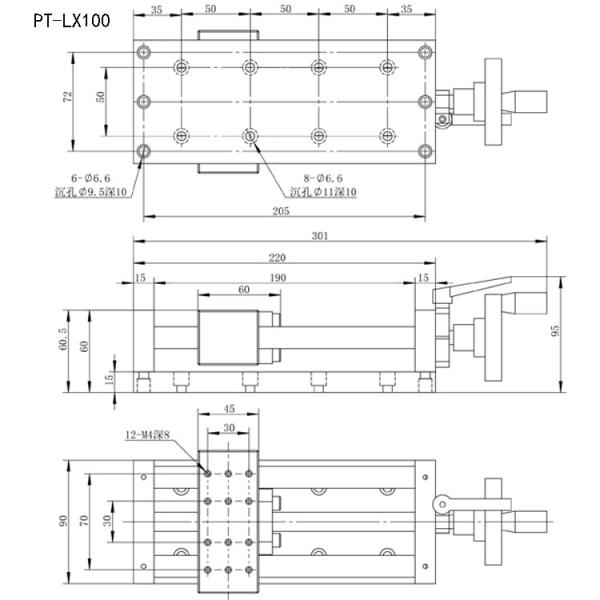

Product Dimension Map

Ball Screw Manual Linear Stage

Ball Screw Manual Linear Stage

Ball Screw Manual Linear Stage

Ball Screw Manual Linear Stage

This product is applicable to all kinds of conventional production environments. It is specially customized with aluminum alloy profiles with reasonable structure and high strength, integrated molding and overall CNC processing to ensure that the parallelism, roughness and straightness meet the requirements of the module. Various itineraries can be customized or non-standard changes can be made according to the requirements; Profile surface electrophoresis, beautiful and wear-resistant; The cover plate is removable, which is convenient for installation, cleaning and maintenance; All moving parts adopt ball screw to ensure stable and reliable product performance.
