Specifications
Brand Name :
PDV
Model Number :
PT-SD112
Place of Origin :
Beijing, China (Mainland)
MOQ :
1piece
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Delivery Time :
1-2 weeks
Travel Range :
80mm
Actuator Type :
Bevel Wheel & Rack
Travel Guide :
Dovetail
Platform :
40mm × 100mm
Parallelism :
50μm
Straightness :
20μm
Load capacity :
4Kgs
Weight :
0.07kgs
Description

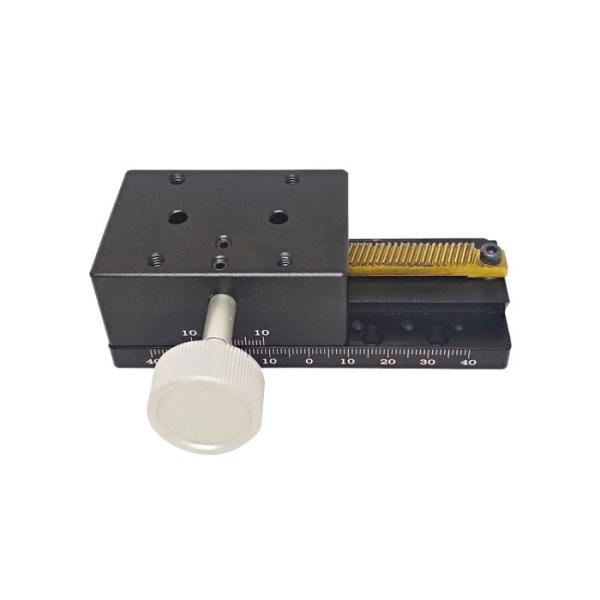

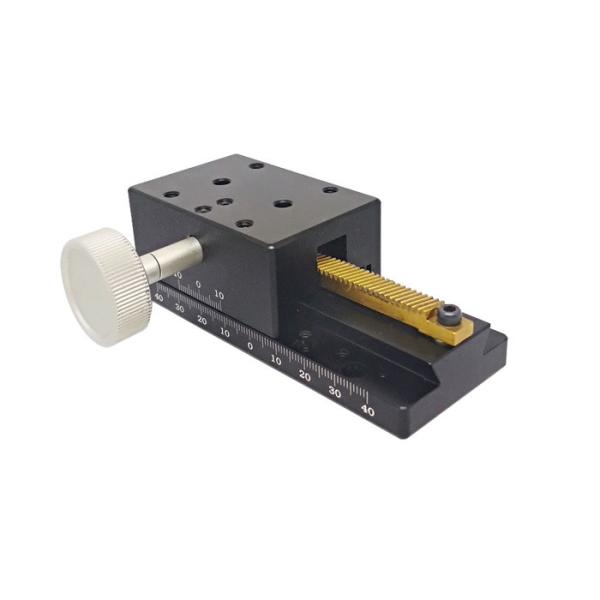

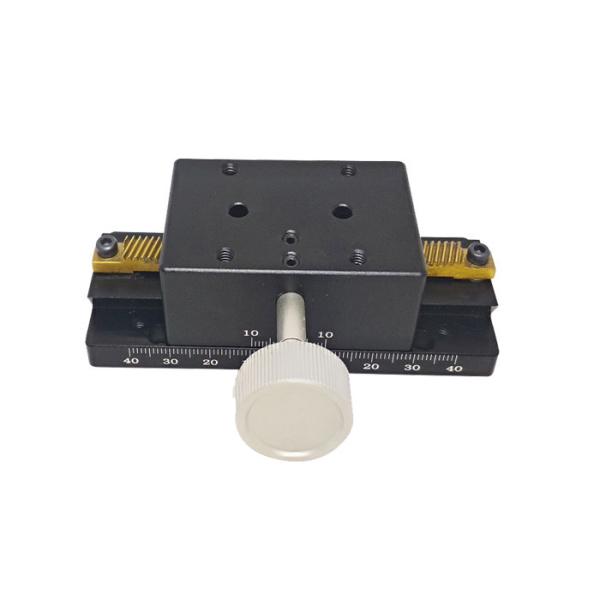

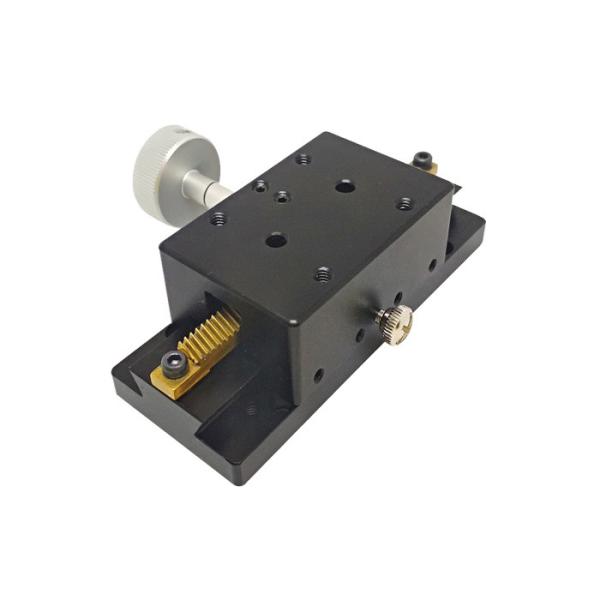

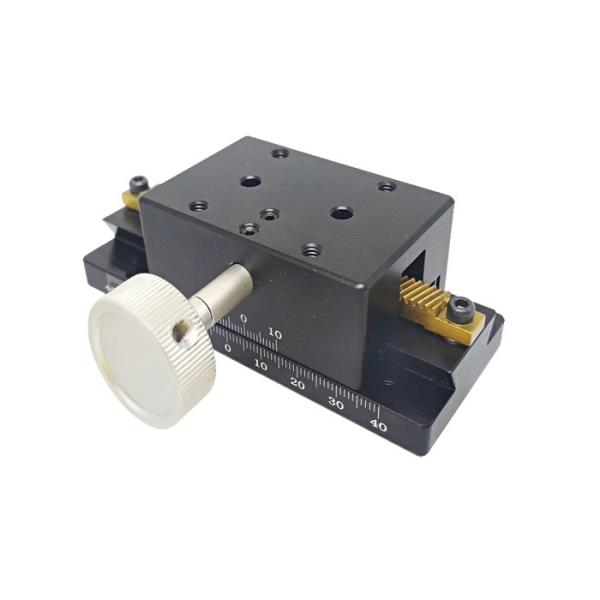

X Axis Manual Linear Stage , Dovetail Slide , Manual Platform PT-SD112

Dovetail sliding platform guide is dovetail pair, bearing capacity is large; Large handwheel on both sides, flexible and light rotation, handwheel can be extended according to user needs; Vernier reading, adjust the quantitative; Table and base are distributed with standard hole spacing mounting holes, convenient installation and combination; It can be composed of multi-dimensional adjustment rack or multi-dimensional adjustment with other series products.


Product features

■ Dovetail auxiliary guide rail, strong load capacity.

■ With locking function, good locking effect, high stability.

■ Long stroke, suitable for simple and precise transmission.

■ Small size, suitable for embedded in other devices.


Product parameters:

Item Number

PT-SD112

Travel Range

80mm

Actuator Type

Bevel Wheel & Rack

Travel Guide

Dovetail

Platform

40mm × 100mm

Parallelism

50μm

Straightness

20μm

Driving Parallelism

40μm

Minimum Scale

0.02mm

Positional Accuracy

5μm

Minimum Adjust Distance

5μm

Pitching

80”

Yawing

60″

Material – Finish

Aluminum Alloy - Black-Anodized

Load capacity

4Kgs

Weight

0.07kgs

Product Dimension Map

X Axis Manual Linear Stage , Dovetail slide , Manual Platform PT - SD112

The development of manual displacement table is very fast, and the market of manual displacement table is gradually expanding. Next precision displacement slide professional manufacturer -PDV in the actual work, what are the characteristics of manual displacement table:

1. Easy installation

The installation of the manual translation platform is very convenient, and the composition of this product is very simple, so when installing it, just remember a few simple steps.

2. Work efficiently

In the case of some high load work, manual displacement table is also fully capable of, now the density of some raw materials are very high, and the wear-resistant situation is also very good, the translation table is of course used by these new materials, the use of these materials to increase its working effect.

3. Corrosion resistance

Manual displacement table's ability to resist acid and alkali is very strong. It is because of this advantage that the manual displacement table can see its super working ability in many aspects. These advantages are the main advantages that it shows in work, and they are very practical.
