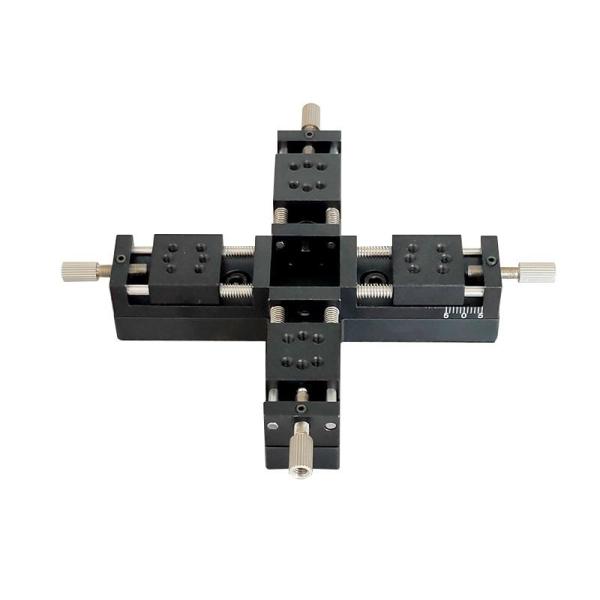

X Axis 35mm / 65mm / 95mm Travel Manual Linear Stage , Optical Sliding Table

Exquisite workmanship, with precision, compact, stable operation, easy installation, can provide 3D map files, convenient design.

Product features

The aluminum alloy base plate is refined and anodized, with good wear resistance and beautiful appearance.

High positioning accuracy can be achieved by using precision grinding screw.

The use of precision linear slide square guide rail, with our company's unique precision grinding process, can effectively ensure the straightness, flatness and other indicators of the translation table;

The product can be used alone, or can form a multi-dimensional adjustment table.


Product parameters:

Model

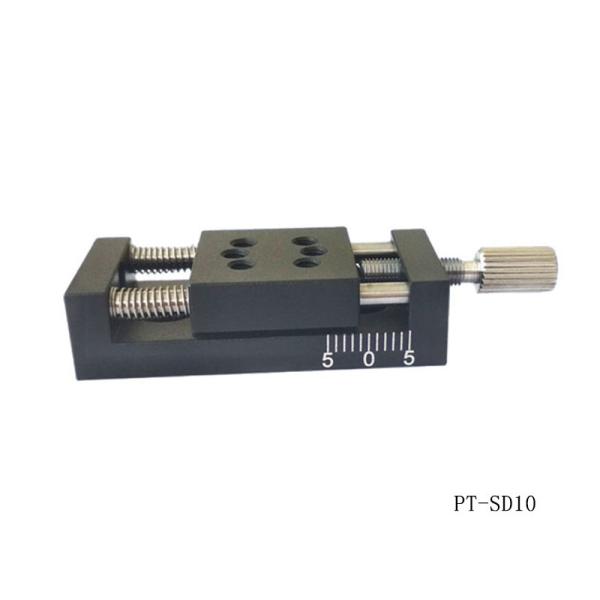

PT-SD10

PT-SD35

 PT-SD65 PT-SD95

Platform(mm)

20 x 20

40×25

 40×25 40×25

Travel Range(mm)

10

35

 65 95

One revolution of displacement

Turn the knob once, the displacement is 0.5mm

Turn the knob once, the displacement is 0.8mm

 Turn the knob once, the displacement is 0.8mm Turn the knob once, the displacement is 0.8mm

Load Capacity(Kgf)

1

4

 4 3

Weight(g)

30

160

 180 210

Shape Size

Model

Slide table (mm)

Maximum travel(MM)

Z(mm)

A(mm)

B(mm)

Load tolerance level(N)

Self-weight(g)

PT-SD35

40×25

35

17.5

48

90

39.2

160

PT-SD65

65

32.5

78

120

39.2

180

PT-SD95

95

47.5

108

150

29.4

210

Product Dimension Map

X Axis 35mm / 65mm / 95mm Travel Manual Linear Stage , Optical Sliding Table

X Axis 35mm / 65mm / 95mm Travel Manual Linear Stage , Optical Sliding Table

Precautions for use of manual translation platform

No matter what kind of translation platform products, are precision production auxiliary equipment, only when using more attention to make the equipment better use effect, longer service life.

For manual translation platform this kind of precision instrument, we should pay attention to the usual maintenance and maintenance, timely repair, find problems in time to solve. Before the manual translation platform is formally used and energized, it should have a basic understanding of it, check some parts that may have problems, ensure that the product is normal, before it can be energized.

After the use of the translation platform products, we should also pay attention to check whether there are any legacy problems, and repair them every once in a while. Even in the usual use of the process, and did not find any abnormal products in Shanghai manual translation table, but also to regular maintenance.
