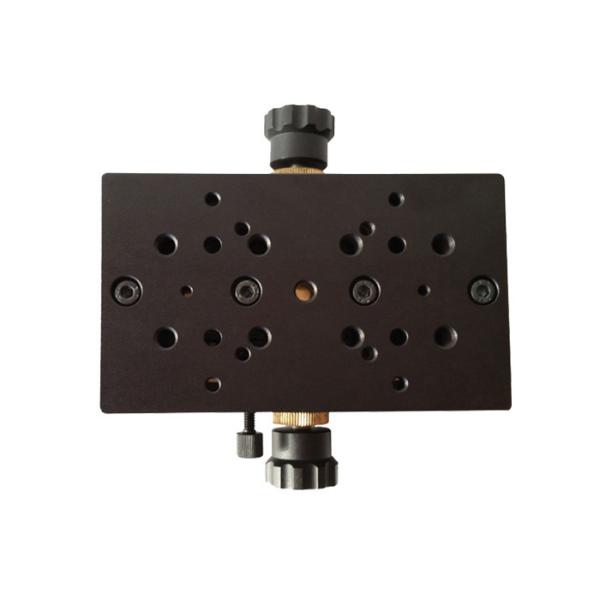

X Axis Manual Linear Stage , Manual Displacement Station PT-SD103P

Compared with the electric translation table, the manual translation table mainly changes the driving part to the hand wheel, removes the control part, and directly uses the hand to artificially control its accurate displacement. Because of its simple drive and flexible use, the manual displacement table is also widely used in various occasions where precision displacement is required without on-line automatic control.


Product features

Guide rail for dovetail pair, bearing capacity.

The displacement adjustment is driven by helical gear ruler.

Large handwheel on both sides, flexible and light rotation, handwheel can be extended according to user needs.

Vernier reading, adjust the quantity.

Mounting holes with standard spacing are distributed on the table and base for easy installation and combination.

It can be composed of multi-dimensional adjustment rack or multi-dimensional adjustment with other series products.


Product parameters:

Item Number

PT-SD103P

Travel Range

75mm

Actuator Type

Bevel Wheel & Rack

Travel Guide

Dovetail

Platform

110mm × 65mm

Parallelism

50μm

Straightness

30μm

Driving Parallelism

40μm

Minimum Scale

0.02mm

Positional Accuracy

0.02mm

Minimum Adjust Distance

10μm

Pitching

80”

Yawing

60″

Material – Finish

Aluminum Alloy - Black-Anodized

Load capacity

20Kgs

Weight

0.85kgs

Product Dimension Map
