40×40mm One Dimensional Manual Goniometer Stage High Precision
40×40mm One Dimensional Manual Goniometer Stage High Precision
40×40mm One Dimensional Manual Goniometer Stage High Precision
40×40mm One Dimensional Manual Goniometer Stage High Precision
40×40mm One Dimensional Manual Goniometer Stage High Precision
40×40mm One Dimensional Manual Goniometer Stage High Precision
40×40mm One Dimensional Manual Goniometer Stage High Precision
40×40mm One Dimensional Manual Goniometer Stage High Precision
Specifications
Brand Name :
PDV
Model Number :
PT-SD4027, PT-SD6075, PT-SD6095, PT-SD60115, PT-SD7558, PT-SD7583
Place of Origin :
Beijing, China (Mainland)
MOQ :
1piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Price :
Negotiable
Delivery Time :
1-2 weeks
Platform Size :
40×40mm
Adjustment range :
±15°
Minimum reading :
1°
resolving power :
0.01°
load bearing :
3kg
Weight :
0.11kg
Description

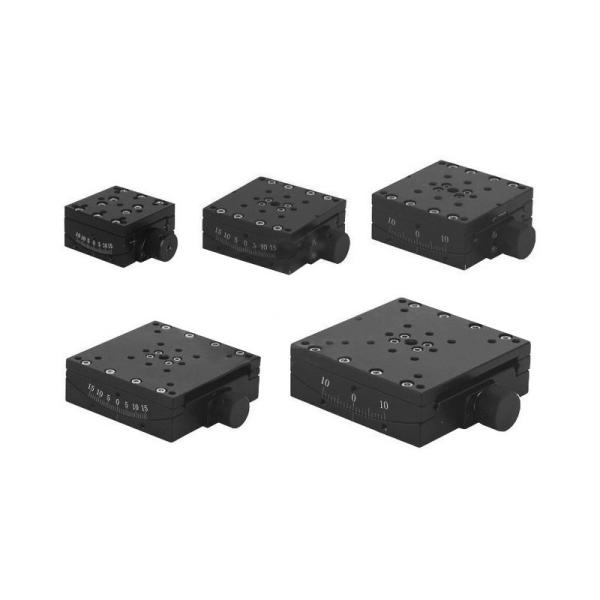

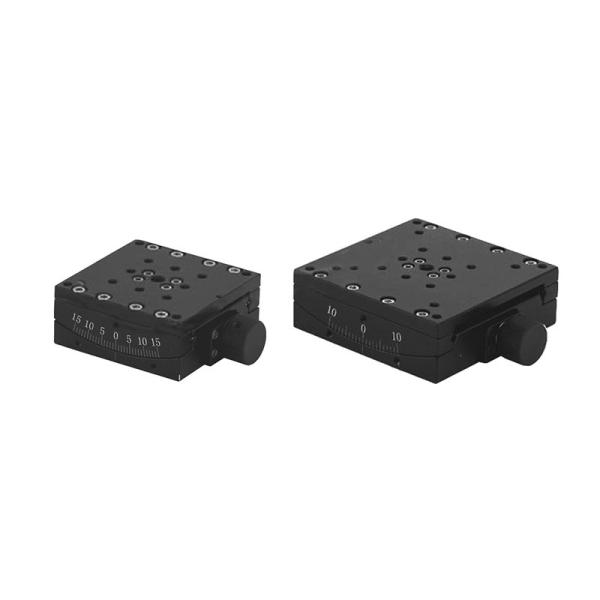

Manual Angle Table Angle Meter Arc Swing Table Swing Platform PT - SD4027

One dimensional manual angular position table with common light load

Driven by worm gear and worm structure, high-resolution precise angle adjustment can be carried out by rotating the hand wheel. It is easy to operate and has good bearing capacity. It is suitable for the occasions requiring precise arc swing angle. Light load angle table adopts linear arc rail structure or dovetail arc rail structure, which is suitable for light load occasions.

The ordinary manual angle table is driven by worm wheel and worm structure. It can adjust the precise angle with high resolution by rotating the hand wheel. It is easy to operate and has good bearing capacity. It is suitable for the occasions requiring precise arc swing angle. Light load angle table adopts linear arc rail structure or dovetail arc rail structure, which is suitable for light load occasions.

There are mounting screw holes at the bottom of the product, which can be directly connected with other countertops for assembly.

Product parameters:

Model

PT-SD4027

PT-SD6075

PT-SD6095

PT-SD60115

PT-SD7558

PT-SD7583

Platform Size(mm)

40×40

60×60

60×60

60×60

75×75

75×75

Distance from table top to pendulum Center (mm)

27

60

80

100

58

83

Adjustment range (°)

±15°

±15°

±12°

±10°

±15°

±10°

Minimum reading (°)

1°

1°

1°

1°

1°

1°

resolving power (°)

0.01°

0.005°

0.005°

0.005°

0.005°

0.005°

load bearing (kg)

3

5

10

Guide rail structure

Linear ball arc rail

Dovetail arc rail

Linear ball arc rail

Weight(kg)

0.11

0.25

0.26

0.26

0.39

0.4

Product dimension drawing:

40×40mm One Dimensional Manual Goniometer Stage High Precision

40×40mm One Dimensional Manual Goniometer Stage High Precision

40×40mm One Dimensional Manual Goniometer Stage High Precision
