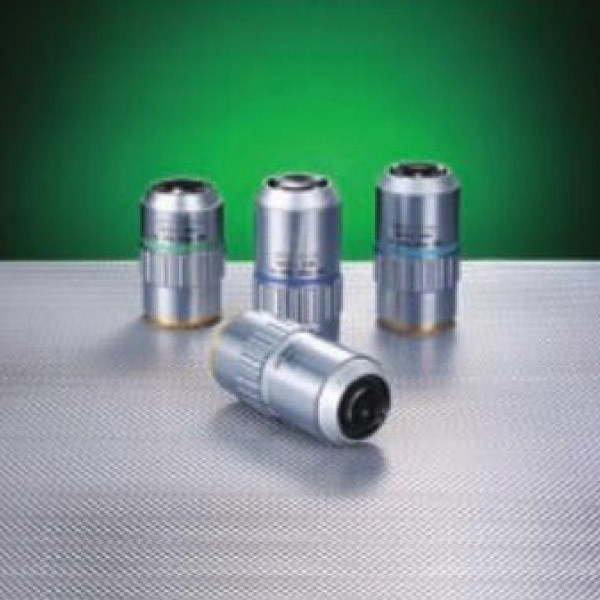

Mitutoyo M Plan Apo SL Achromatic Objective Lens Ultra Long Working
Mitutoyo M Plan Apo SL Achromatic Objective Lens Ultra Long Working
Specifications
Brand Name :
Mitutoyo
Model Number :
M Plan Apo SL
Place of Origin :
Japan
MOQ :
1piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
1-2 weeks
Magnification :
20X , 50X , 80X, 100X , 200X
N.A :
0.28 , 0.42 , 0.50 , 0.55 , 0.62
W.D.(mm) :
30.5 , 20.5 , 15 , 13
F(mm) :
10 , 4 , 2.5 , 2 , 1
R(μm) :
1.0 , 0.7 , 0.6 , 0.5 , 0.4
±DOF（μm） :
3.5 , 1.6 , 1.1 , 0.9 , 0.7
Description

Mitutoyo MPlan Apo SL Ultra Long Working Range Achromatic Objective Lens

Bright field observation M Plan Apo SL

Model number

Article number

N.A .

W.D.(mm)

F(mm)

(λ=550nm)

R(μm)

(λ=550nm)

±DOF(μm)

Real FOV(mm)

Mass

(g)

ø24 eyepiece

1/2" camera

M Plan Apo SL20×

378-810-3

0.28

30.5

10

1.0

3.5

1.2

0.23×0.32

240

M Plan Apo SL50×

378-811-3

0.42

20.5

4

0.7

1.6

0.48

0.1.×0.13

280

M Plan Apo SL80×

378-812-3

0.50

15

2.5

0.6

1.1

0.3

0.06×0.08

280

M Plan Apo SL100×

378-813-3

0.55

13

2

0.5

0.9

0.24

0.05×0.06

290

M Plan Apo SL200×

378-816-3

0.62

13

1

0.4

0.7

0.12

0.025×0.03

490

Features:

1. Long working distance objective lens makes a gap between the lens surface and the workpiece surface at focal length, so as to observe the workpiece which is usually difficult to focus due to poor projection.

This objective provides a flat, monochromatic (almost chromatic) image across the entire field of view. It is suitable for use in a variety of microscopes.

3, specially designed objective lens is also suitable for correction of near infrared, near ultraviolet and ultraviolet light or liquid crystal glass of various thicknesses.

4. The design of fixed thread of objective lens conforms to JIS B- standard.

Adjustment of objective lens correction ring

Most microscope objectives are designed to be used with cover glass of a standard thickness of 0.17 mm and refractive index of 1.515, which is satisfactory when the objective has a numerical aperture of 0.4 or less. However, when using a high numerical aperture dry objective (with a numerical aperture of 0.8 or greater), a change in cover glass thickness of only a few microns results in significant image quality degradation due to aberration and worsens as the cover glass thickness increases. To compensate for this error, more corrected objectives are equipped with correction rings that adjust the position of the central lens group to match fluctuations in cover glass thickness. This interactive program explores how to adjust the correction collar for optimal image quality.

Product Dimension Map:

Mitutoyo M Plan Apo SL Achromatic Objective Lens Ultra Long Working

If the products are sold without quality problems, they will not be returned or replaced. Please understand!!!
