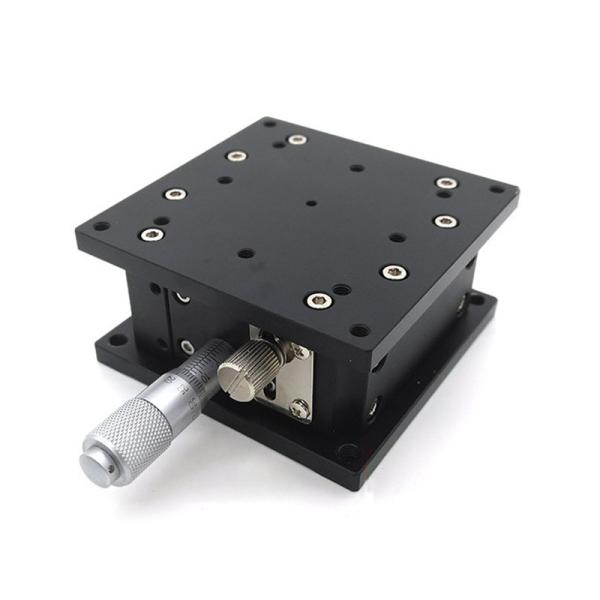

Fine Adjustment Double Guide Rails Manual Lab Jack Table Size 125 * 125mm

The double guide manual lab jack PT-SD14-125 is made of high-strength aluminum alloy, with its surface oxidized and blackened. It adopts the cross roller guide rail displacement structure, and is driven by the differential head. It has the characteristics of high-precision, small, smooth, and rigid finite linear movement. It can be used for high-precision, medium, and heavy production machinery inspection devices, precision positioning, and quantitative movement.

Features of double guide manual lab jack

1. Double guide rail design is adopted, which is more stable than single guide rail, with more load and longer service life.

2. The main body is made of aluminum alloy, which is light in weight and suitable for other devices.

3. The installation is simple. A cross roller guide rail is installed between the high-precision machined workbench and the base. The slide 4 and seat mechanism can be installed with bolts where necessary to obtain a high-precision linear guide mechanism.

5. Because the rollers with large rated load are installed together according to a short pitch, they can bear heavy load and are high.

Wide range of applications

It can be used for all kinds of production machinery with high precision, medium and heavy load.

Check the precision positioning and fixed displacement of the device.

Manual lab jack product parameters:

PDV has a group of experienced designers who have been engaged in research and development of photoelectric industry for a long time. The sales team with senior technicians and professional knowledge has strong technical force and strict working attitude. The company mainly produces: electric rotary table, electric displacement table, electric lifting table, electric angle position, manual translation table, manual angle position table, manual lifting table, and various optical platforms. The product design is advanced and unique, the structure is reasonable, and the quality is stable. The products are widely used in colleges and universities, scientific research institutes, machinery, electronics, medical, chemical industry. Health, education, national defense and other departments. The company has a wide range of products. It can meet the requirements and technical indicators of different customers, and can also be specially designed and manufactured according to the special requirements of customers to meet the needs of customers.
