Precision electric rotary stage (worm gear): PX110-400

Electric rotary table is a kind of equipment used in microscope, which can observe objects from multiple directions and angles. The main scope of use is the equipment with very strict precision requirements in the microscope, so the precision requirements are more strict than those of general equipment. In order to achieve the measured value, avoid the loss and impact of measurement error, and to some extent, avoid accidents.

This product adopts new structure and new technology. After strict testing, the key indicators have reached the level of similar products. This product is mainly used in laser precision processing, three-dimensional scanning measurement system and other application fields.

Electric rotary stage product features

1. The rotary shaft system is precisely processed by multiple processes, with high fitting accuracy, large bearing capacity and long service life.

2. It adopts the precisely researched worm gear structure, which is comfortable in movement. It can rotate freely in forward and reverse direction and has small air return.

3. The ingeniously designed air return structure can adjust the air return clearance caused by long-term use.

4. The special structure design ensures the low end jump and eccentricity of the rotary table, making the rotary movement more stable.

5. The central through-hole of the rotary table has strict coaxiality requirements with the rotary center, and the central aperture of the rotary table has strict fit tolerance restrictions, which is convenient for customers to make precise positioning.

6. The scale circle around the table is a laser marking ruler, which can rotate relative to the table for easy initial positioning and reading.

7. The stepping motor and worm are connected by high-quality elastic coupling, with synchronous transmission and good depolarization performance, greatly reducing eccentric disturbance and low noise.

8. The electric rotary table can be used horizontally or vertically, and can form a multi-dimensional electric adjustment table with other types of tables.

Electric rotary stage product specification

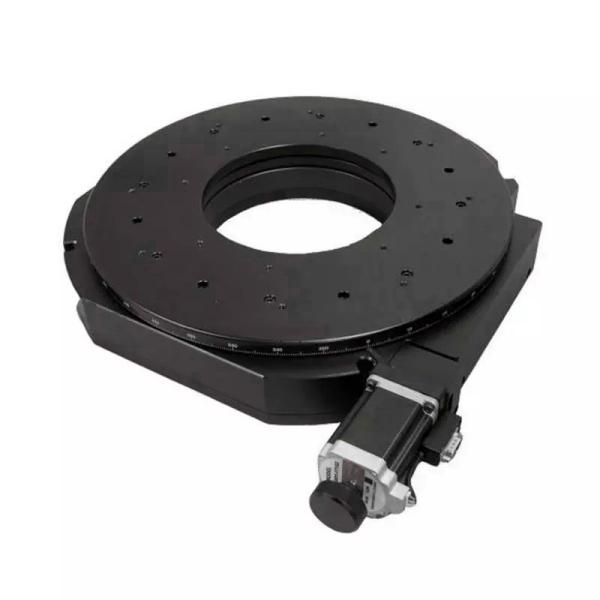

PX110-400 Electric rotary stage Product diagram
