Long Stroke Dovetail Trough Rack And Pinion Manual Linear Sliding Stage

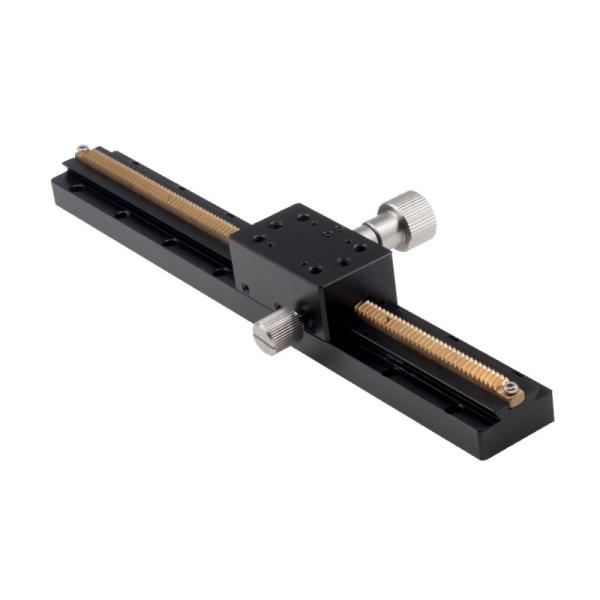

Rack and Pinion dovetail trough manual linear stage, the main material of the product is made of high strength aluminum alloy, the surface is oxidized black, the dovetail auxiliary guide rail is used to guide, the load capacity is strong. Using helical rack and pinion drive, faster adjustment speed. Side with scale and locking function, locking effect is good, high stability. Table and base distribution of standard hole spacing of the installation hole, easy to install and combination, can be composed of multi-dimensional adjustment frame or other series of products composed of multi-dimensional adjustment.

Product Advantages:

1.Dovetail groove type, high precision and smooth movement can be realized.

2.The main material is aluminum alloy, light weight.

3.Countertops come in a variety of sizes and offer multiple options.

4.Drive mode select differential head for higher accuracy.

5.Fit to be built into other devices.

6.If you have size customization problem, please consult customer service.

Product Specifications:

Manual Linear Stage Installation method

1. Screw the micrometer screw rod (or other pushing device) in one direction to move it to the edge so that the mounting hole at the bottom is exposed.

2. Fix it with screws. Please make sure that the locking plate has been loosened before operation.

3. Screw the micrometer screw (or other pushing device) in the opposite direction,

Move the mobile station to the edge so that the mounting hole at the other end of the bottom is exposed.

4. Fix with screws.

Note: the bearing volume on the platform is too large, which will reduce the accuracy of the platform and even damage it. Please try to avoid it, which is not greater than 1.5 times of the table.
