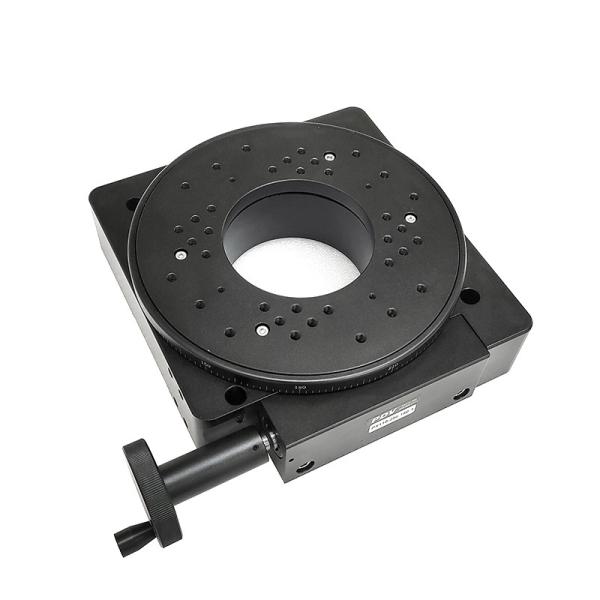

Economical Heavy Duty R Axis Manual Rotary Stage For Optical Experiment

Product Description

PX110-200 economic heavy duty manual rotary stage, is developed by PDV with high rotation accuracy, high cost performance of manual rotary stage products. The series adopts cross roller shaft ring, refined turboworm and unique shafting structure to ensure high rotation accuracy, so that the key indicators such as rotation accuracy, end jump and diameter jump can reach the advanced level of peers. And the unique turbine worm adjustment structure can easily eliminate the mechanical error and ensure the long-term use accuracy. This series of products have high load capacity, can be used vertically and inverted, and can be combined multi-dimensional use.

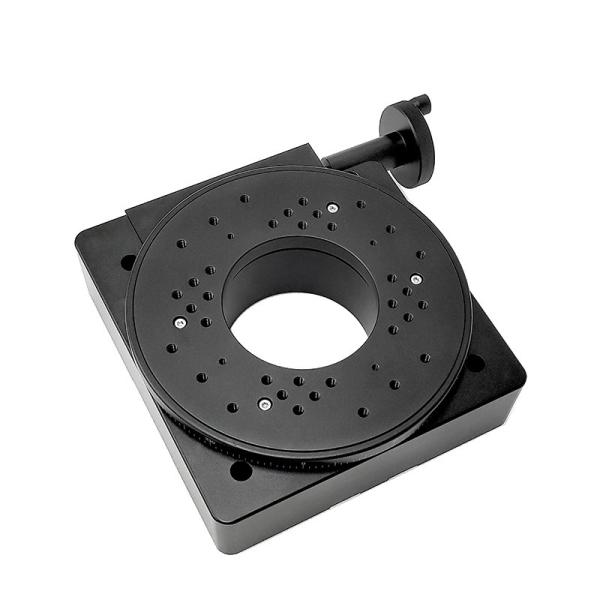

Economical Heavy Duty R Axis Manual Rotary Stage For Optical Experiment

Product features

The rotating shafting system is made of multi-channel process precision machining, with high precision, strong bearing capacity and long service life;

The use of refined turboworm drive, achieve high positioning performance;

Using high grade cross roller shaft ring, with high motion characteristics;

Accept product restructuring and customization;

The rotating platform is composed of three parts: guiding mechanism, feeding mechanism and locking mechanism, which is convenient for precise positioning and adjustment. It can be used for inspection, assembly, processing or other fixtures and jigs. The GUIDE mechanism of this product is double bearing rolling guide, the feed mechanism is differential head, and the screw is fixed on the side until the locking mechanism.

Method of use:

① : When the stop screw is not locked, the rotating table can be rotated 360°.

② : the differential head is used for fine tuning. When the stop screw is locked, the rotating table will turn around.

3: differential head, fine tuning.

④ : locking screw clamping.
