Z Axis Large Stroke Manual Lab Jack T Shaped Screw Drive Hand Lifting Stage
Z Axis Large Stroke Manual Lab Jack T Shaped Screw Drive Hand Lifting Stage
Z Axis Large Stroke Manual Lab Jack T Shaped Screw Drive Hand Lifting Stage
Z Axis Large Stroke Manual Lab Jack T Shaped Screw Drive Hand Lifting Stage
Z Axis Large Stroke Manual Lab Jack T Shaped Screw Drive Hand Lifting Stage
Z Axis Large Stroke Manual Lab Jack T Shaped Screw Drive Hand Lifting Stage
Z Axis Large Stroke Manual Lab Jack T Shaped Screw Drive Hand Lifting Stage
Z Axis Large Stroke Manual Lab Jack T Shaped Screw Drive Hand Lifting Stage
Specifications
Brand Name :
PDV
Model Number :
PT-SZ160
Place of Origin :
Beijing, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
1-2 weeks
Platform Size :
160×114mm
Accuracy :
0.05mm
Driving Mode :
T Screw M16×4
Travel :
160mm
Load Capacity :
50kg
Weight :
3.7kg
Material :
Aluminum Alloy
Product Nme :
Z Axis Large Stroke Manual Lab Jack
Description

Z Axis Large Stroke Manual Lab Jack T-Shaped Screw Drive Hand Lifting Stage

Product Description

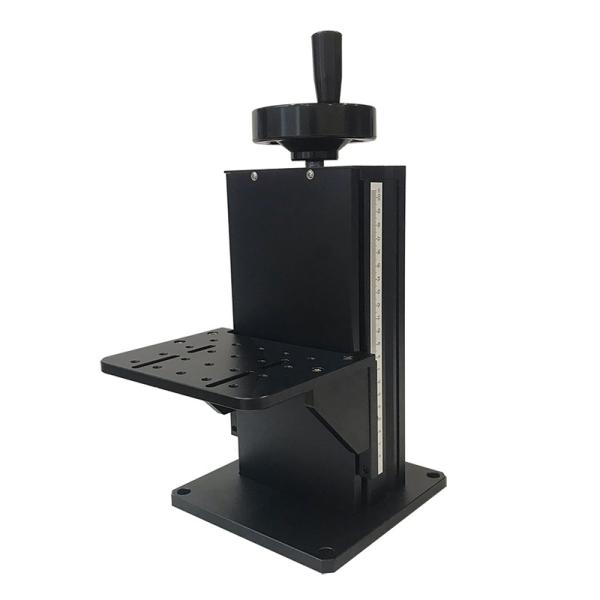

This manual lab jack is made of aluminum alloy, with high precision, light weight and heavy load, easy secondary processing, durable, rust free, dustproof and beautiful appearance.

The product details of this manual lab jack are also very good. The adjusting handwheel is used to control the rise and fall of the table, and the handwheel rod can also be retracted into the groove. The worktable is made of aluminum alloy plate, with black anodizing treatment, large stroke and heavy load. High precision ruler is provided on the side for more accurate marking and positioning.

PT-SZ160 Manual Lab Jack Product specifications

Model Number

PT-SZ160

PT-SZ260

PT-SZ460

PT-SZ700

Platform Size

160×114

160×114

160×114

160×114

Accuracy

0.05MM

0.05MM

0.05MM

0.05MM

Driving Mode

T Screw M16×4

T Screw M16×4

T Screw M16×4

T Screw M16×4

Lifting Travel

160

260

460

700

Load Capacity

50kg

50kg

50kg

50kg

Weight

3.7kg

6.5kg

7.8kg

9kg

Material

Aluminum Alloy 6061

Aluminum Alloy 6061

Aluminum Alloy 6061

Aluminum Alloy 6061

PT-SZ160 Manual Lab Jack Product Details

Z Axis Large Stroke Manual Lab Jack T Shaped Screw Drive Hand Lifting Stage

Z Axis Large Stroke Manual Lab Jack T Shaped Screw Drive Hand Lifting Stage

PT-SZ160 Manual Lab JackScope of application

The products are widely used in motion correction, laser displacement, detection and adjustment, equipment and fixtures, optical alignment, fiber core adjustment, prediction experiments in universities or scientific research institutions, etc.

Precautions for Use

Generally speaking, if the manual lifting platform is used in the field of automation, then its use environment is relatively poor, the use environment in the field of scientific research is better, and the stains will be less. Therefore, PDV suggests that if the manual displacement platform is used in the industrial field, the dirt and garbage on it should be cleaned up after each use. Some dirt left on it will react with some material components in the air, which will cause corrosion on the manual displacement platform.
