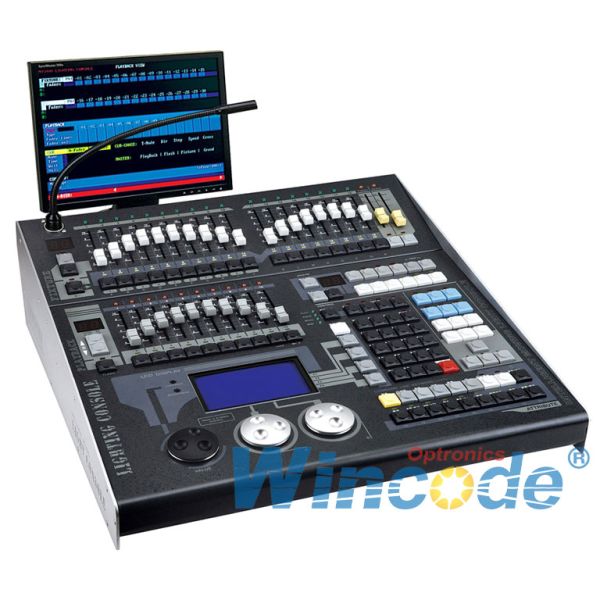

WOP-MB1024 1024 Moving Light DMX Controller / Stage Lighting Control System For Stage Show Lighting

Description:

WOP-MB1024 1024 Moving Light DMX Controller is one moving head light console with 1024 channels, Output port with optical isolated. Up to 180 intelligent Fixtures or 180 Dimmer may be connected. Up to 42 channels each Fixture. Fixture Library mode, “pearl” Library compatible.400 Playback program, 200 Group, 210 Preset, 100 Snapshot.

Specification:

1024 DMX channels, DMX512/1990 standard, Output port with optical isolated.

Up to 180 intelligent Fixtures or 180 Dimmer may be connected.

Up to 42 channels each Fixture. Fixture Library mode, “pearl” Library compatible.

400 Playback program, 200 Group, 210 Preset, 100 Snapshot.

Shape track control is provided to control such effects as circles, lines and dimmer effect, etc.

Chase trigger mode selectable: Auto1, Auto2, Music synchronously and MIDI.

USB port is provided. USB-disk can record the data of controller, Controller can be upgraded through the USB port.

1 VGA port, user can connect it to the colorful CRT or LCD displays (OPTIONAL).

LCD display with backlight.

12V accessory operate light (OPTIONAL).

Power supply: AC 110-240V / 50-60Hz

Size: 500×525×150 mm.

Applications:

Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers …

Wincode Optronics to provide the following professional services:

1. Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
2. Structure Designs: Pro/E--Parts--assembly drawing--Prototype
3. Integrated Circuit Design:
4. Software Design:
5. Undertake domestic and international OEM, ODM,manufacturing.

6. Accept customized products order.

Product Show
