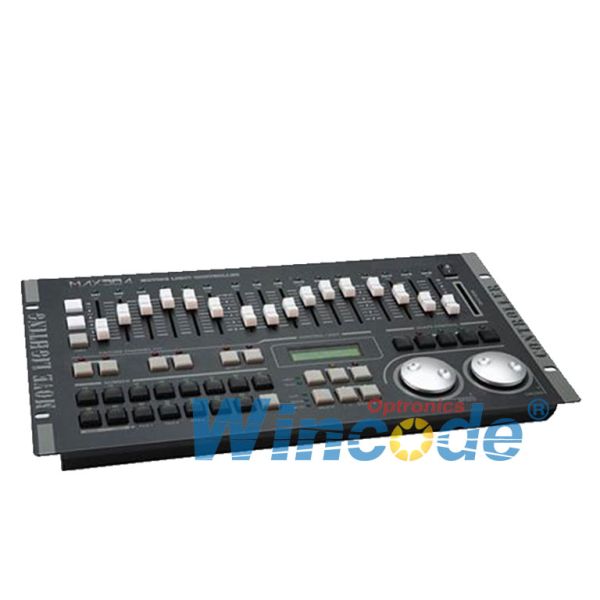

WOP-MAX384 384 Channels Moving Light DMX Controller / Pearl Controller / Tiger Touch Controller

Description:

WOP-MAX384 MAX384 Moving Light DMX Contoller is one moving head light console with 384 channels, Output port with optical isolated. Up to 30 intelligent Fixtures may be connected with a maximum of 32 channels each. Uses can allocate DMX channel to each intelligent Fixture dynamically.

Specification:

WOP-MAX384 MOVING LIGHT CONTROLLER

DMX512/1990 standard, 384 DMX channels, output with optical isolated.

Up to 30 intelligent Fixtures may be connected with a maximum of 32 channels each.

Uses can allocate DMX channel to each intelligent Fixture dynamically.

The X/Y channel of different intelligent Fixtures can be controlled by modulation Wheel.

Up to 50 SHAPE generators. SHAPE track control is provided to control such effects as circles, lines and shapes like 8,etc.

30 Chases, up to 100 Steps each. Trigger mode selectable: Music synchronously, Auto, Manual speed.

2 Chases, 30 Scenes operated at the same time. At most 30 intelligent Fixtures can be selected simultaneously.

Flash mem-card slot is provided. each Flash mem-card can record the whole data of controller,
LCD display with backlight.

Power supply: AC 90-250V / 50-60Hz

Size: 485mm x 267mm x 85mm

Applications:

Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers …
