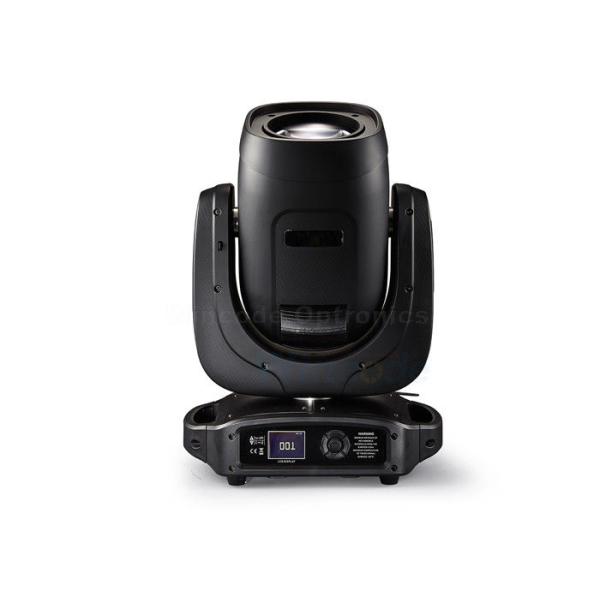

CCT 7800K DMX Fast Operation Stage Light Beam Spot Wash Zoom 4 in 1 20R Stage Quality
CCT 7800K DMX Fast Operation Stage Light Beam Spot Wash Zoom 4 in 1 20R Stage Quality
Specifications
Brand Name :
Wincode Optronics
Model Number :
WOP-M440
Place of Origin :
Guangzhou, China
MOQ :
2 pcs
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
3-5 working days after received your payment
Packaging Details :
Exported carton box / flight case
Function :
Multiple Beam+Spot+Wash+Zoom
Heat protection :
one 85℃ over heat protection thermosta
Motor :
3-phase motors
Static Gobo Wheel :
18 gobos + open
Prism :
8+6 facet circle prism rotating in both directions at variable speeds macro
Color System :
CMY color system /15color single color filters(2 CTO filters 3200K and 2500K)
Certification :
CE/ROHS
Description

CCT 7800K DMX Fast Operation Stage Light Beam Spot Wash Zoom 4 in 1 20R Stage Quality

Packing :

Export Carton 1 pcs in 1 box

Flight Case 1pcs or 2 pcs in 1 case

Way of Shipping:

By Sea /Air

Express transportation like DHL /UPS/ FedEx etc

FREE SHIPPING for qty 200pcs and ship by sea


TECHNICAL INFORMATION


Optics

  • Lamp: 440W discharge lamp, MSD Platinum 20R (color Temperature: 7,800K)
  • Light output: 23,000 lm
  • LEDs expected lifetime: 1500hrs

Optical and effects

  • Optics: 160mm diameter front lens
  • Zoom range: 4-31 degrees for fixed gobos/6.7-50 degrees for rotating gobos 2.5degrees for Beam Mode with aperture and pipe effect

Electrical

  • Input voltage range: 110-230V AC 50/60Hz
  • Power consumption: 700W at 230V 50Hz

Programming and Control

  • DMX channels: 30/34 DMX 512 control channels

Physical

  • Dimensions (L x H x W): 460 x 323 x 574 mm
  • Weight:30 Kg (66 lbs.)
  • Moving body/ angle: PAN = 540degrees Tilt = 244 degrees/ Automatic repositioning of PAN and Tilt

Electromechanical Effects

  • 2 gobo wheels: wheel with 6HQ dichroic indexable and interchangeable rotating gobos/ variable rotating wheel with 18+1 fixed metal gobos; Advanced Animation disc
  • 2 indexable and interchangeable rotating prisms (8-facet and linear prism)
  • High precision 0-100% dimmer
  • Mechanical shutter and strobe effect

CCT 7800K DMX Fast Operation Stage Light Beam Spot Wash Zoom 4 in 1 20R Stage Quality
