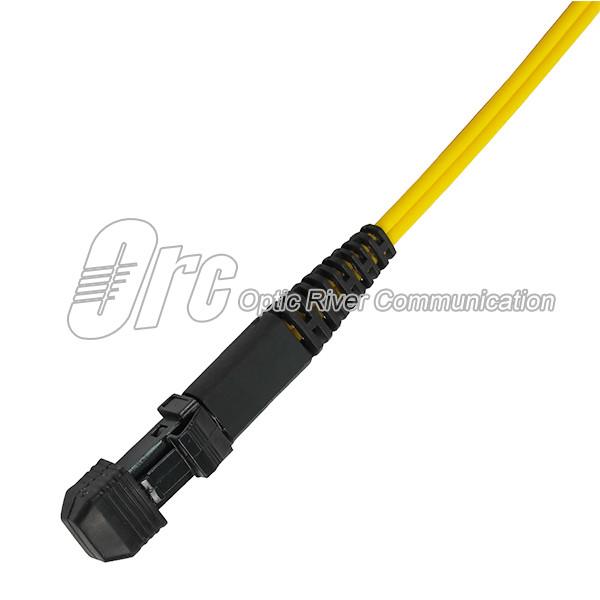

Duplex MTRJ To MTRJ G.657A1 Fiber Optic Patch Cables LSZH
Duplex MTRJ To MTRJ G.657A1 Fiber Optic Patch Cables LSZH
Duplex MTRJ To MTRJ G.657A1 Fiber Optic Patch Cables LSZH
Duplex MTRJ To MTRJ G.657A1 Fiber Optic Patch Cables LSZH
Specifications
Brand Name :
OEM
Model Number :
MTRJ/PC-MTRJ/PC-2F-SM-2.0-L-1M
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Support sample order
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000,000 connectors/month
Delivery Time :
3-7 work days
Packaging Details :
Individual packaging with Ziplock Bag
Fiber Type :
G.657A1
Jacket Material :
LSZH
Fiber Count :
2 Fibers
Polishing :
PC
Jacket Color :
Yellow
Connector Style :
MTRJ-MTRJ
Warranty :
1 year
Boot color :
Black
Description
Fiber Optic Patch Cables Single Mode Duplex MTRJ To MTRJ Female Connector Yellow Zipcord Cable

What is MT-RJ connector?

The MT-RJ is one of the newly emerging small form factor Connectors that are becoming more common in the networking industry. The MT-RJ utilizes two fibers and integrates them into a single design that looks similar to a RJ45 connector. Alignment is completed through the use of two pins that Mate with the connector.

Product information
Connector type MT-RJ to MT-RJ Polish type PC
Fiber number 2 Fiber mode G.657A1
Wavelength 1310nm/1550nm Connector material Plastic housing, boot and ferrule
Insertion loss ≤0.3dB Connector gender Female-female
Fiber grade Bend insensitive Return loss ≥55dB
Cable jacket LSZH Cable diameter 2.0mm zipcord
Polarity A(Tx)-B(Rx) Operating temperature -20-+60℃

Features
◆ Each connector is visually inspected with a 400x microscope for any surface or interior cracks, scratches, contaminants or other imperfections.
◆ The cable is duplex 2.0mm cable jacket which is the most popular
◆ MTRJ Connector Dimensions: 7.5mm Height x 9.5mm Width x 56mm Depth
◆ LSZH Zipcord sheath
◆ Increases density by 50%
◆ 100% inspected for optical characteristics before shipment
Applications
◆ Network cross-connect
◆ Telecommunication networks
◆ Data system networks
◆ Active device networks
◆ Ideal solution for high-speed data transmission
Duplex MTRJ To MTRJ G.657A1 Fiber Optic Patch Cables LSZH
Drawing and cable length tolerance
Length Tolerance
L<1M ±0.08M
1M≤L<20M ±0.10M
L≥20M ±1%M
