Main Cable 3.0mm Duplex Fiber Optic Jumper LC - LC Om2 50/125 LSZH With 2.0mm Branch
Main Cable 3.0mm Duplex Fiber Optic Jumper LC - LC Om2 50/125 LSZH With 2.0mm Branch
Main Cable 3.0mm Duplex Fiber Optic Jumper LC - LC Om2 50/125 LSZH With 2.0mm Branch
Main Cable 3.0mm Duplex Fiber Optic Jumper LC - LC Om2 50/125 LSZH With 2.0mm Branch
Main Cable 3.0mm Duplex Fiber Optic Jumper LC - LC Om2 50/125 LSZH With 2.0mm Branch
Main Cable 3.0mm Duplex Fiber Optic Jumper LC - LC Om2 50/125 LSZH With 2.0mm Branch
Specifications
Brand Name :
OEM
Model Number :
LC/UPC-LC/UPC-2F-3.0-20M
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Support sample order
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000,000 connectors/month
Delivery Time :
3-7 work days
Packaging Details :
Individual packaging with Ziplock Bag
Fiber Type :
OM2
Jacket Material :
LSZH
Fiber Count :
Duplex
Polishing :
UPC
Jacket Color :
Orange
Connector Style :
SC-SC
Warranty :
1 year
Fiber Glass Brand :
YOFC or Corning
Connector Housing Color :
Beige
Connector Boot Color :
White
Description

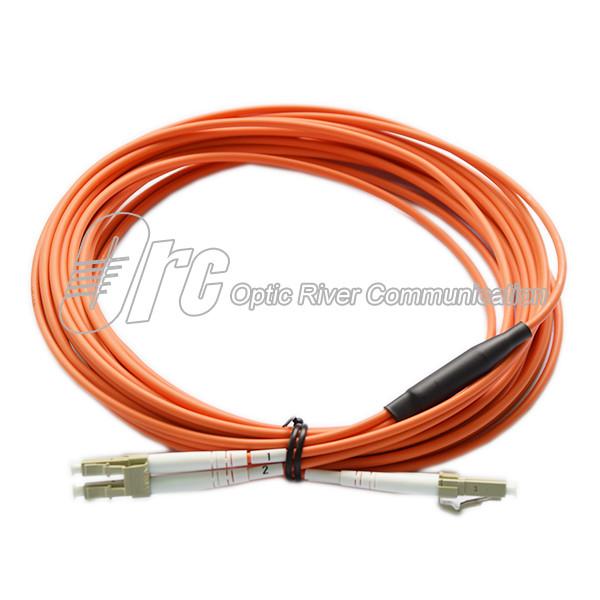

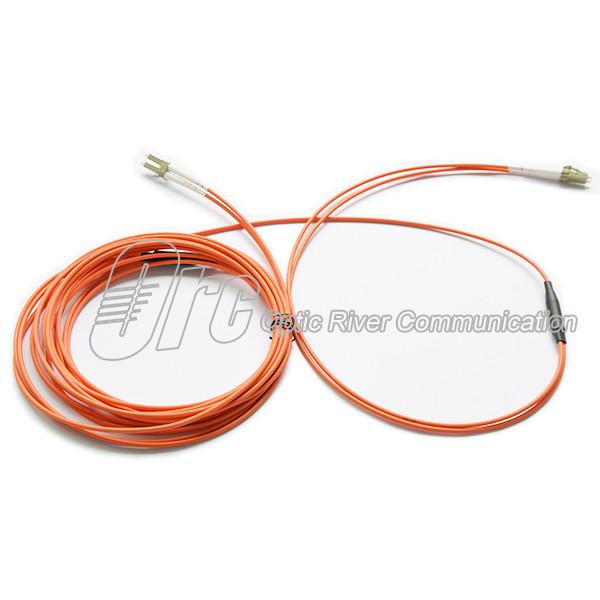

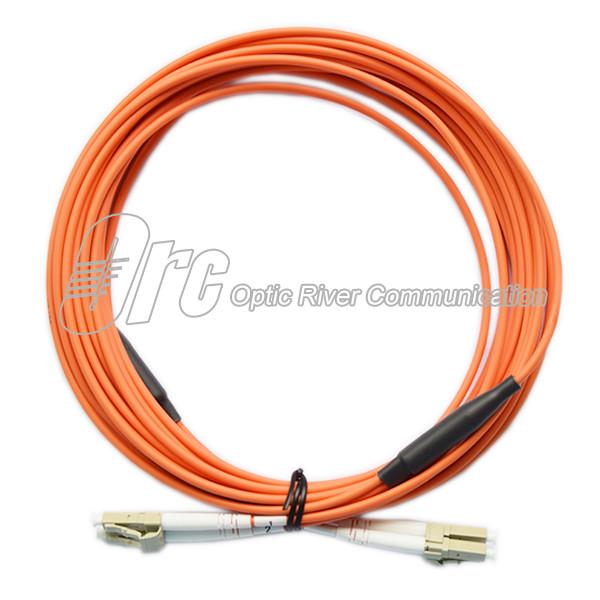

MAIN CABLE 3.0MM DUPLEX FIBER OPTIC JUMPER LC - LC OM2 50/125 LSZH WITH 2.0MM BRANCH
Description
The trunk cable of the patch cord is duplex 3.0mm OM2 fiber optical cable and fans out 2 pcs of 2.0mm branches terminated with LC duplex connectors. Compared with zipcord duplex fiber optic cable, 3.0mm round duplex will save more space and be easier to manage in the long distance link. The default color of the OM2 FO cable is orange, and at the same time we can customize it with different color but without any cost increasing.

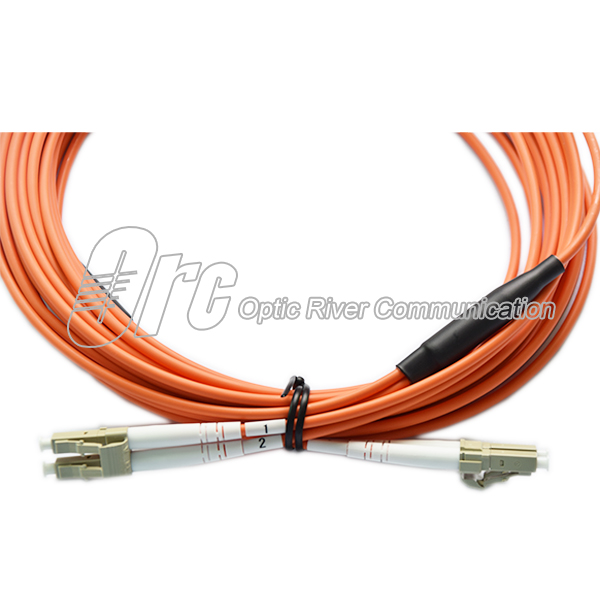

Main Cable 3.0mm Duplex Fiber Optic Jumper LC - LC Om2 50/125 LSZH With 2.0mm Branch
Product parameter
Connector type LC-LC Polish type UPC
Fiber number Duplex Fiber mode OM2 50/125μm
Wavelength 850nm/1300nm 1G Ethernet distance 550m at 850nm
Insertion loss <=0.3dB Return loss >=25dB
Fiber grade Bend insensitive Minimum bend radius 7.5mm
Breakout diameter 2.0mm Trunk diameter 3.0mm
Polarity A(Tx)-B(Rx) Operating temperature -20-+60℃

Main features
◆ Endface inspection, IL/RL testing and 3D interferometer testing
◆ IEC 61754, TIA 604 (FOCIS), YD/T
◆ High concentricity 2.5mm ceramic ferrule for SC, FC, ST; 1.25mm ceramic ferrule for LC and MU
◆ YOFC bend insensitive fiber optic glass
Quality certifications
Main Cable 3.0mm Duplex Fiber Optic Jumper LC - LC Om2 50/125 LSZH With 2.0mm BranchMain Cable 3.0mm Duplex Fiber Optic Jumper LC - LC Om2 50/125 LSZH With 2.0mm Branch

FAQ

Q: How about the freight?

A: We can deliver the goods by your own express accounts such as DHL, UPS and Fedex if small quantity. At the same, we have long-term cooperated shipping agent who can offer a cost-effective transportation case for you.

Q: Could I have a free sample for testing?

A: Yes, most of the time we offer free samples for our customers, but you should bare the international freight by yourself.

Q: What's your main products?

A: 1, Standard patch cord/pigtails for FTTx---SC/LC/FC/ST/MU/MTRJ/E2000 connectors with OM1/2/3/4/5&OS1/2 cable

2, MPO/MTP® trunk cable
3, MPO/MTP® fanout/breakout/harness cable
4, Pre-terminated multi fiber cables
5, Patch panel, MPO cassette and rack(Metal plate products support OEM also. We can produce according to your design)
6, 40G/100G fiber optic transceiver package series like AWG, MT, Free Space Isolator
7, Indoor/Outdoor Cables
8, Fiber Optical Splitters

Q: How long is your warranty period?

A: The average warranty period is 12 months.
