9/125um UPC polishing Fiber Optic Patch Cable Single Mode SC To SC
9/125um UPC polishing Fiber Optic Patch Cable Single Mode SC To SC
9/125um UPC polishing Fiber Optic Patch Cable Single Mode SC To SC
9/125um UPC polishing Fiber Optic Patch Cable Single Mode SC To SC
9/125um UPC polishing Fiber Optic Patch Cable Single Mode SC To SC
9/125um UPC polishing Fiber Optic Patch Cable Single Mode SC To SC
Specifications
Brand Name :
OEM
Model Number :
SC/UPC-SC/UPC-2F-SM-2.0-L-5M
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Support sample order
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000,000 connectors/month
Delivery Time :
3-7 work days
Packaging Details :
Individual packaging with Ziplock Bag
Fiber Type :
9/125um G652D
Sheath Material :
LSZH/PVC
Fiber Number :
2 Fibers
Polishing :
UPC
Sheath Color :
Yellow
Connector Type :
SC/UPC-SC/UPC
Warranty :
1 year
SC Boot Color :
Blue and white
Description

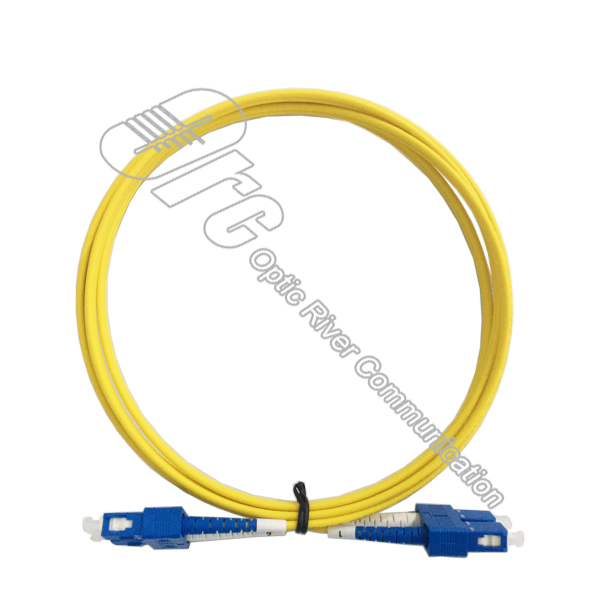

9/125um UPC Polishing Fiber Optic Patch Cable Single Mode SC To SC

9/125um fiber optic patch cables single mode SC to SC

Definition of 9/125μm DX Patch cord

This fiber optic cable with customized length is terminated with SC connectors on both ends. It is a singlemode fiber (9 micron core) designed to transmit data across long distances at high speeds. The cord is duplex (two fibers) which means it permits synchronous communication between devices. The cladding diameter is 125 microns.

Fiber optical patchcord parameters

Characteristics

Unit

Value/Performance

Comments

SM

MM

APC

PC

Basic

Insertion Loss(IL)

dB

≤0.3

IEC61300-3-4

Insertion Loss(RL)

dB

SPC≥45

UPC≥50

≥60

≥23

IEC61300-3-6

Endurance

dB

△IL≤0.2

IEC61300-2-2

Operation Temperature

℃

-20 to +70

Speration Temperature

℃

-40 to +70

Ferrule end-face geometry

Radius of curvature(R)

mm

7-25

5-12

NA

Telcordia GR326(4.4.5)

Apex offset

um

≤50

NA

Telcordia GR326(4.4.5)

Fiber protrusion

nm

≤50

≤100

NA

Telcordia GR326(4.4.5)

Fiber under cut

nm

≤125@R=7-10

≤100

NA

Telcordia GR326(4.4.5). For PC, under cut≤-0.02R³+1.3R²-31R+325 when R=10-25mm

Mechanical

Drop

dB

△IL≤0.2

IEC61300-2-12, 1.5m, 5 drops, no damage

Vibration

dB

△IL≤0.2

IEC61300-2-1, 10-55Hz, 0.75mm amplitude, 0.5hrs/axis

Flex

dB

△IL≤0.2

Telcordia GR326(4.4.3.2), 0.6kg, ±90°, 100cycles, for 2mm or larger cable

Twist

dB

△IL≤0.2

Telcordia GR326(4.4.3.3), 1.35kg load, ±2.5 turns, 10cycles, for 2mm or larger cable

Pull proof

dB

△IL≤0.2

Telcordia GR326(4.4.3.4), 2.3kg at 90°, 6.8kg at 0°, for 2mm or larger cable

Coupling strength

dB

△IL≤0.2

IEC61300-2-6, 4.2kg, 2min

Static bending

dB

△IL≤0.2

IEC794-1-2, 60mm diameter 10 turns

Crushing

dB

△IL≤0.2

IEC794-1-2, 102kg for 2mm or larger cable, 10.2kg for 900um cable

Environmental

Cold

dB

△IL≤0.2

IEC61300-2-17, -20℃, 96 hrs

Dry heat

dB

△IL≤0.2

IEC61300-2-18, 70℃, 96 hrs

Damp heat

dB

△IL≤0.2

IEC61300-2-19, 40℃, 95% RH, 96 hrs

Transmission

Characteristics

Unit

G652 SM

G655 SM

Std. 50um

62.5um

OM2

OM3

Max. Attenuation

dB/km(nm)

0.4/0.3(1310/1550)

0.3(1550)

2.8(850)

3.0(850)

2.8(850)

2.8(850)

Min. Bandwidth

MHz km(nm)

-

-

500/500(850/1300)

200/200(850/1300)

750(850)

2000(850)

Dispersion coefficient

ps/nm² km

≤3.0(1310nm)

2.6-6.0(1550nm)

-

-

-

-



Features of SM G652D Duplex Fiber Optical Cable Assembly

◆ Single-fiber connector type available in LC, SC with APC or UPC polishing type
◆ Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
◆ Pull proof jacket
◆ Cable length available in 1m, 2m, 3m, etc

◆ Factory terminated & tested with guaranteed quality

◆ Jacket material: 0.9mm/2.0mm/3.0mm cable LSZH, OFNR, OFNP

Applications of MM duplex patchcord

◆ Telecommunication networks
◆ Data processing networks

◆ Links between electronic equipment and fiber patch panels

◆ Premise installation

9/125um UPC polishing Fiber Optic Patch Cable Single Mode SC To SC

9/125um UPC polishing Fiber Optic Patch Cable Single Mode SC To SC

Drawing and cable length tolerance

Length Tolerance

L<1M

±0.08M

1M≤L<20M

±0.10M

L≥20M

±1%M
