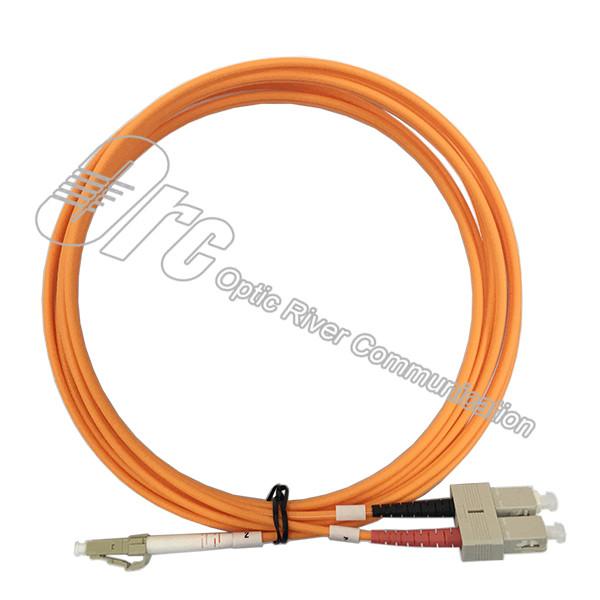

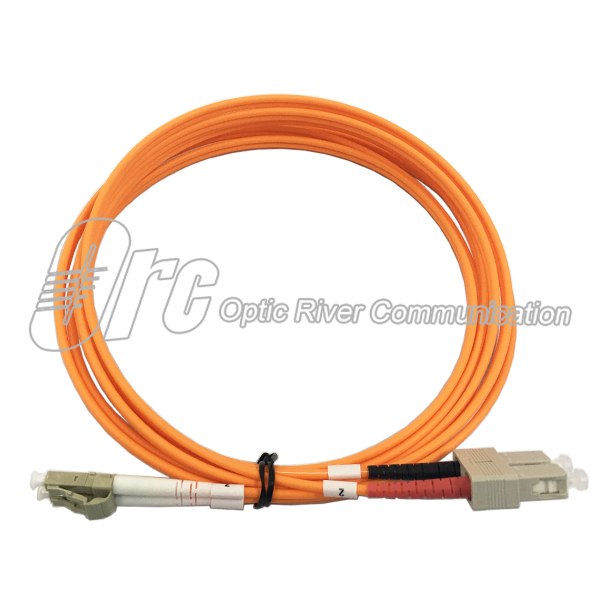

Multimode 50/125 Fiber Optic Patch Cord LC/UPC-SC/UPC 3mm Diameter
Multimode 50/125 Fiber Optic Patch Cord LC/UPC-SC/UPC 3mm Diameter
Multimode 50/125 Fiber Optic Patch Cord LC/UPC-SC/UPC 3mm Diameter
Multimode 50/125 Fiber Optic Patch Cord LC/UPC-SC/UPC 3mm Diameter
Multimode 50/125 Fiber Optic Patch Cord LC/UPC-SC/UPC 3mm Diameter
Multimode 50/125 Fiber Optic Patch Cord LC/UPC-SC/UPC 3mm Diameter
Specifications
Brand Name :
OEM
Model Number :
LC/UPC-SC/UPC-2F-OM2-3.0-L-3M
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Support sample order
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000,000 connectors/month
Delivery Time :
3-7 work days
Packaging Details :
Individual packaging with Ziplock Bag
Fiber Type :
OM2
Jacket Material :
LSZH
Fiber Count :
2 Fibers
Polishing :
UPC
Jacket Color :
Orange
Connector Style :
LCD-SCD
Warranty :
1 year
Boot color :
Red and black
Description
Multimode 50/125 Fiber Optic Patch Cord LC/UPC-SC/UPC 3.0mm diameter
Description
The mode-conditioning patch cords are designed to reduce differential mode delay (DMD) effects that can occur when a single mode signal is launched into a multimode fiber. The mode-conditioning patch cords consist of a single mode fiber which has been fusion spliced to a multimode fiber (orange jacket) in an offset manner. These patch cord cables utilize a UPC (Ultra Physical Contact) polish and LSZH jacket.
Product information
Connector type LC-SC Polish type UPC
Fiber number 2 Fiber mode OM2
Wavelength 850nm Connector material Plastic housing and boot
Insertion loss <=0.3dB Max transmission distance 600M
Fiber grade Bend insensitive Data rate 1GB @ 850nm
Cable jacket LSZH Cable diameter 3.0mm zipcord
Polarity A(Tx)-B(Rx) Operating temperature -20-+60℃

Features
◆ Low insertion loss
◆ High back reflection loss
◆ Stable capability and high reliability
◆ Eliminate differential mode delay
◆ Ideal solution for high-speed data transmission
◆ 100% inspected for optical characteristics before shipment
Applications
◆ Datacenters
◆ 10GBase-LRM Ethernet
◆ Gigabit Ethernet upgrades
◆ Structured cabling systems
Drawing and cable length tolerance
Length Tolerance
L<1M ±0.08M
1M≤L<20M ±0.10M
L≥20M ±1%M


Standard package
Multimode 50/125 Fiber Optic Patch Cord LC/UPC-SC/UPC 3mm Diameter

Multimode 50/125 Fiber Optic Patch Cord LC/UPC-SC/UPC 3mm Diameter

Factory Show

Multimode 50/125 Fiber Optic Patch Cord LC/UPC-SC/UPC 3mm Diameter
