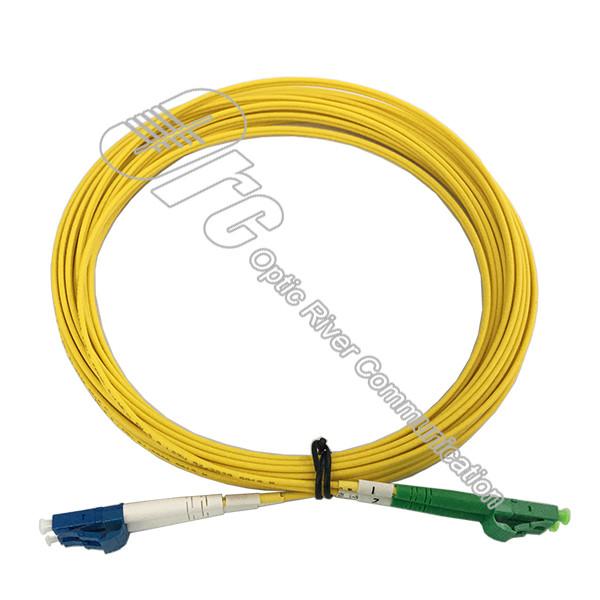

Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC
Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC
Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC
Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC
Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC
Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC
Specifications
Brand Name :
OEM
Model Number :
LC/APC-LC/UPC-2F-SM-2.0-L-5M
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Support sample order
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000,000 connectors/month
Delivery Time :
3-7 work days
Packaging Details :
Individual packaging with Ziplock Bag
Fiber Type :
G.657A2
Jacket Material :
LSZH
Fiber Count :
2 Fibers
Polishing :
APC/UPC
Jacket Color :
Yellow
Connector Style :
LC/APC-LC/UPC
Warranty :
1 year
Boot color :
White and green
Description
LC/APC-LC/UPC fiber optical patchcord G657A2 single mode duplex
OFNP VS. OFNR
OFNP cables have fire-resistance and low smoke production characteristics. This is the highest fire rating fiber cable and no other cable types can be used as substitutes. So these cables are mostly installed in plenum areas. Whereas, the fiber-resistance and low smoke of OFNR cables are not good as OFNP. OFNP plenum cables can be used as substitutes for OFNR cables. Through OFNR vs. OFNP, it is worth noticing that OFNR fiber optic cable cannot be used in plenum areas to replace OFNP cables, however, the latter can be used in the riser areas. Both OFNP and OFNR can be used in general purpose areas.
Product information
Connector type LC to LC Polish type APC
Fiber number 1 Fiber mode G.657A2
Wavelength 1310nm/1550nm Connector material Plastic housing and boot
Insertion loss ≤0.3dB Ferrule diameter 1.25mm
Fiber grade Bend insensitive Return loss ≥60dB
Cable jacket LSZH Cable diameter 2.0mm riser cable
Polarity A(Tx)-B(Rx) Operating temperature -20-+60℃

Features
◆ 100% optically inspected and tested for insertion loss
◆ ROHS and Reach compliant
◆ Pull proof jacket
◆ Available in custom length and colors
Applications
◆ Building interconnections(campus LAN)
◆ Trunking lines direct to telecommunications closet
◆ Links between electronic equipment and fiber patch panels
◆ Fiber patch panels within communications closet
Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC
Duplex G657A2 Fiber Optical Patchcord Single Mode LC To LC
Drawing and cable length tolerance
Length Tolerance
L<1M ±0.08M
1M≤L<20M ±0.10M
L≥20M ±1%M
