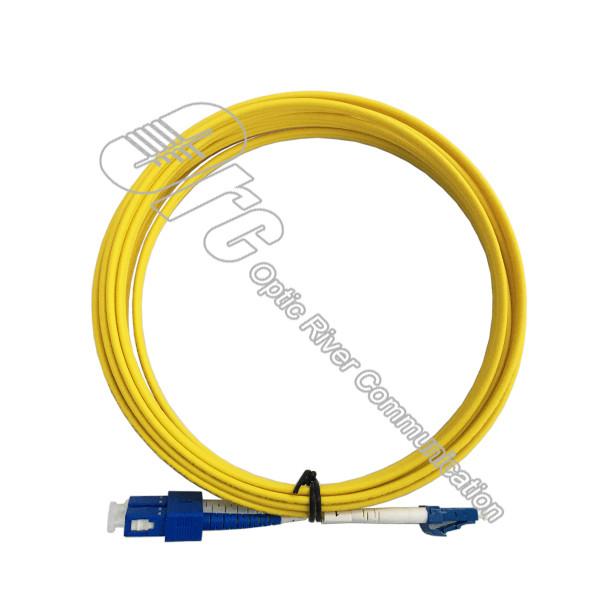

LC - SC Multimode Fiber Optic Patch Cord 2.0mm Duplex Yellow
LC - SC Multimode Fiber Optic Patch Cord 2.0mm Duplex Yellow
LC - SC Multimode Fiber Optic Patch Cord 2.0mm Duplex Yellow
LC - SC Multimode Fiber Optic Patch Cord 2.0mm Duplex Yellow
LC - SC Multimode Fiber Optic Patch Cord 2.0mm Duplex Yellow
LC - SC Multimode Fiber Optic Patch Cord 2.0mm Duplex Yellow
Specifications
Brand Name :
OEM
Model Number :
LC/UPC-SC/UPC-2F-SM-2.0-L-3M
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Support sample order
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000,000 connectors/month
Delivery Time :
3-7 work days
Packaging Details :
Individual packaging with Ziplock Bag
Fiber Type :
G657A1
Jacket Material :
LSZH
Fiber Count :
2 Fibers
Polishing :
UPC
Jacket Color :
Yellow
Connector Style :
LC-SC
Warranty :
1 year
Boot color :
White and blue
Description
Fiber optic patch cord SC-LC single mode 2.0mm duplex yellow

How to choose the right fiber optic cable type on OM3 or OM4?

The difference of OM4 and OM3 fiber mode as the following
Ø OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
Ø The effective modal bandwidth for OM4 is more than double that of OM3.

Ø For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.

Product information
Connector type LC-SC Polish type UPC
Fiber number 2 Fiber mode G657A1
Wavelength 1310nm Connector material Plastic housing and boot
Insertion loss <=0.3dB Max transmission distance 2000M
Fiber grade Bend insensitive Data rate 10GB @ 1310nm
Cable jacket LSZH Cable diameter 2.0mm zipcord
Polarity A(Tx)-B(Rx) Operating temperature -20-+60℃

Features
◆ Suitable for 10 Gb Ethernet networks
◆ For 50/125μm multimode installation, OM4 type
◆ Aqua sheaths
◆ LSZH Zipcord sheath
◆ Low insertion loss and back reflection loss
◆ 100% inspected for optical characteristics before shipment
Applications
◆ Equipment to equipment patching
◆ Termination enclosure for equipment patching
◆ Backbone application in building
◆ Active device termination
◆ Cross-connect patching
Drawing and cable length tolerance
Length Tolerance
L<1M ±0.08M
1M≤L<20M ±0.10M
L≥20M ±1%M


Standard package
LC - SC Multimode Fiber Optic Patch Cord 2.0mm Duplex Yellow

LC - SC Multimode Fiber Optic Patch Cord 2.0mm Duplex Yellow

Factory Show

LC - SC Multimode Fiber Optic Patch Cord 2.0mm Duplex Yellow
