Fiber Optic Lc Apc Patch Cord Male High Performance LGX Cassette Installation
Fiber Optic Lc Apc Patch Cord Male High Performance LGX Cassette Installation
Fiber Optic Lc Apc Patch Cord Male High Performance LGX Cassette Installation
Fiber Optic Lc Apc Patch Cord Male High Performance LGX Cassette Installation
Specifications
Brand Name :
OEM
Model Number :
Harness-12f-MPO/APC/M-LC-0.3-G657A1
Certification :
ISO9001
Place of Origin :
CHINA
Price :
Negotiation
MOQ :
1set
item :
MPO Breakout Cable
color :
custom
compliant :
RoHS
Application :
Data Center Cabling
Description

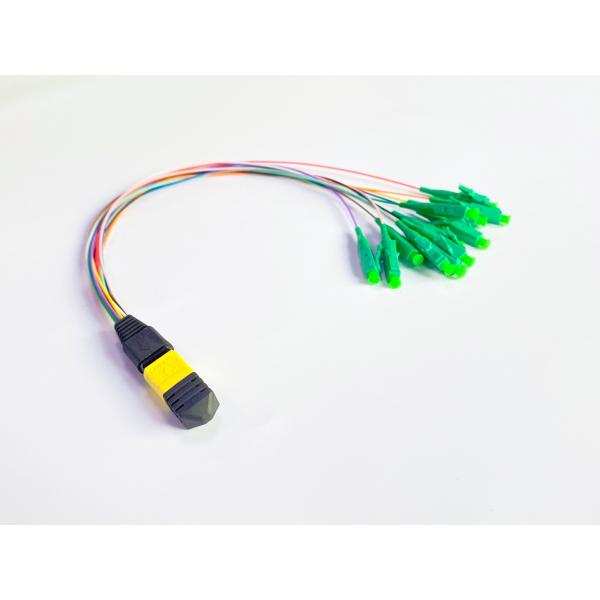

Fiber Optic MPO/APC-LC harness breakout cable 12F male 0.9mm LGX cassette installation

Fiber Optic MPO/APC-LC harness cable 12F male 0.9mm 12 colors are designed for MTP-LC LGX module cassettes are terminated with MTP and LC connector on each end.

12F MTP- LC/SC/FC/ST Standard harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications. This 12 Fiber harness cable is used for connecting (6) SFP+ into a MTP adapter panel and MTP trunk.

Features
◆ MTP and MPO are available
◆ High performance in IL&RL
◆ 100% pre-terminated tested
◆ Pulling eye design easy for cabling
◆ 4F,8F,12F, 24F or customized
◆ Suitable for MTP/MPO application
◆ SM,OM1,OM2,OM3,OM4 or customized
◆ LSZH, OFNR, OFNP available
◆ Compliance with Telcordia GR-1435-CORE Compliant
◆ Compliance with UL 94-V0 compliant
◆ RoHS compliant

Application
◆ 40/100G Optical Modules Connectivity
◆ Data Center Cabling
◆ Cassettes And Rack mount
◆ Telecommunication Network
◆ Industrial&Military

1. Operating & Storage Temperature

ParametersMinMaxUnit
1Operating Temperature-4070°C
2Storage Temperature-4070°C







2. Optical Performance

Optical Performance
ItemParameters
MTP/MPO ConnectorSM (1310nm/1550nm)MM (850nm)
StandardLow LossStandardLow Loss
Insertion LossTypical0.50dB0.20dB0.50dB0.20dB
Maximum0.70dB0.35dB0.70dB0.35dB
Return Loss≥60dB for APC≥20dB for PC
≥40dB for PC--
Male/FemaleMale: with Pins, Female: without Pins


LC/SC/FC Connector
ItemSMMM

1310nm/1550nm
IL (dB)

1310nm/1550nm RL (dB)

850nm
IL (dB)

850nm RL (dB)
PC≤0.2≥50≤0.30≥25
APC≤0.30≥60N/AN/A


3. Geometry Parameters

MT
MeasurementPass/Fail Limits
ParametersMinMax
Radius of CurvatureLong Axel2000mm∞
Short Axel50mm∞
AngleLong Axel-0.2°0.2°
Short AxelAPC7.8°8.2°
PC-0.2°0.2°
Fiber Height1000nm3000nm
Different Fiber HeightN/A500nm
Adjacent Fiber HeightN/A300nm
Ferrule Length7.9mmN/A


FC/LC/SC UPC
ItemPass/Fail
ParametersMinMax
FC ROC10.00mm25.00mm
LC ROC7mm25.00mm
Fiber Height-100.0nm50.0nm
Apex Offset0.00um50.00um
FC/SC/LC APC
ItemPass/Fail
ParametersMinMax
ROC5.00mm12.00mm
Fiber Height-100.0nm50.0nm
Apex Offset0.00um50.00um
APC Angle7.700deg8.300deg
Key Error-0.500deg0.500deg
