Mechanical 4 Core FTTH Drop Cable , Soft 4.0mm X 2.0mm Fiber Drop Cable
Mechanical 4 Core FTTH Drop Cable , Soft 4.0mm X 2.0mm Fiber Drop Cable
Specifications
Brand Name :
OEM
Model Number :
ORCB002
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Support sample order
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Delivery Time :
3-7 work days
Packaging Details :
1KM / 2KM or other contracted length per roll
Fiber Type :
G652/G657/G655/A1a/A1b
Cable Material :
LSZH/PVS/ZRPO/OFNR/OFNP/PE
Fiber Count :
4F
Operation Temperature :
-20℃-+60℃
Jacket / Buffer Color :
meets the requirement of relevant standards
Cable Dimension :
4.0mmX2.0mm
Description
Bow-type Optical Fiber Drop Cable ftth fiber optic cable 4 core with strength member

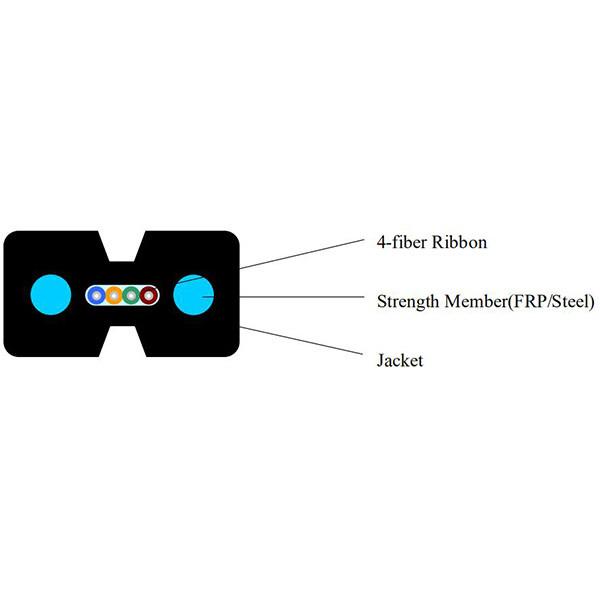

The 4F FTTH fiber optic drop cable uses 4 pcs 250μm colored coating fibers as fiber optic transmission medium, strengthened by the FRP strength member, then extruded with a PVC or LSZH or ZRPO or PE sheath.
Features
◆ Good mechanical and environmental characteristics;
◆ Flame retardant characteristics meet the requirements of relevant standards;
◆ The mechanical characteristics of jacket meet the requirements of relevant standards;
◆ Soft, flexible, easy to lay and splice, and with big capacity data transmission;
◆ Meet various requirements of market and clients
Application

◆ Used as access building cable
◆ Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distribution frames
◆ Distribution system cable
◆ Used in indoor cabling, especially used for FTTH
Cable Parameters
Fiber Count Cable Dimension(mm) Cable Weight(kg/km) Tensile(N) Crush(N/100mm) Min Bend. Radius(mm) Range of Temperature(℃)
Long Term Short Term Long Term Short Term Dynamic Static
4 4.0X2.0 12.0 40/100 80/200 500/1000 1000/2200 60 30 -20-+60

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;

2. The cable core use the colored coating fiber of 250μm;

3. The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used;

4. The minimum bend radius(static) is 15mm when G.657 fiber is used.

Options
◆ Fiber type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode cable, or other types of fiber;
◆ Jacket material: environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH), environmental halogen flame retardant polyolefin(ZRPO), environmental polyethylene(PE), or other contracted material;
◆ Jacket color: (including color of fiber) meets the requirement of relevant standard, or other contracted color;
◆ Cable dimension: the nominal cable dimension, or other contracted dimension;

Product Advantages

◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
Mechanical 4 Core FTTH Drop Cable , Soft 4.0mm X 2.0mm Fiber Drop Cable
FAQ
1. Q: What's your terms of payment?
A: T/T 30% in advance, and rest 70% before delivery. When we reach deeper cooperation, we could support a payment period after authentication.
2. Q: What's your average lead time?
A: Our lead time is controlled within 2-5 working days for the regular products.
3. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
