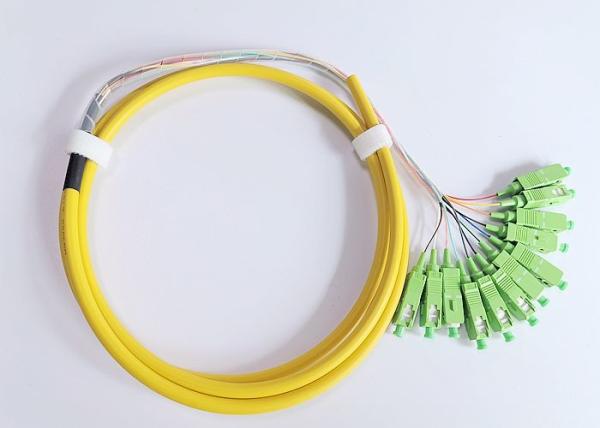

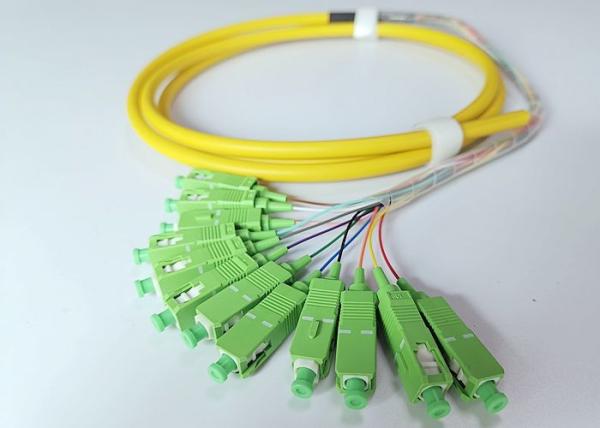

Machine Polishing 12F Fiber Optic Pigtail 0.9mm G657A1 Distribution Cable
Machine Polishing 12F Fiber Optic Pigtail 0.9mm G657A1 Distribution Cable
Machine Polishing 12F Fiber Optic Pigtail 0.9mm G657A1 Distribution Cable
Machine Polishing 12F Fiber Optic Pigtail 0.9mm G657A1 Distribution Cable
Machine Polishing 12F Fiber Optic Pigtail 0.9mm G657A1 Distribution Cable
Machine Polishing 12F Fiber Optic Pigtail 0.9mm G657A1 Distribution Cable
Specifications
Brand Name :
OEM
Model Number :
SC/APC-12F-0.9-2M
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Support sample order
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
15000 connectors/day
Delivery Time :
3-7 work days
Packaging Details :
Individual packaging with Ziplock Bag
Fiber Type :
G657A1
Cable Material :
LSZH
Fiber Count :
12 Fibers
Polish Type :
APC
Description
12F SC/APC SM fiber optic pigtail 0.9mm G657A1 distribution cable
ORC's Fiber Optic Pigtails are manufactured with either multimode or single-mode fibre and terminated with a range of connectors including SC, SC/APC, LC, LC/APC, FC, FC/APC, ST and MTRJ. Other connector types are also available upon request.
Features
◆ Machine polishing ensures highest quality connector terminations and performance
◆ OM1, OM2, OM3, OM4, OM5 and OS2 are available
◆ Good insertion and return loss
◆ Geometry compliant connector endfaces that are defect and contamination free
◆ Prompt ex-stock or custom manufacture turnaround and delivery
Application
◆ Termination of optical networks via fusion or mechanical splicing
◆ Testing of optical devices
◆ Cable acceptance testing
Specification

1. Operating & Storage Temperature

Parameters Min Max Unit
1 Operating Temperature -40 85 °C
2 Storage Temperature -40 85 °C

2. Optical Performance

Item SM MM
1310nm/1550nm IL(dB) 1310nm/1550nm RL(dB) 850nm IL(dB) 850nm RL(dB)
PC <=0.20 >=50 <=0.30 >=25
APC <=0.30 >=60 N/A N/A


3. Geometry Parameters

UPC
Item Pass/Fail
Parameters Min Max
ROC 7.0mm 25.00mm
Fiber Height -100.0nm 50.0nm
Apex Offset 0.00μm 50.00μm

APC
Item Pass/Fail
Parameters Min Max
ROC 5.0mm 12.00mm
Fiber Height -100.0nm 50.0nm
Apex Offset 0.00μm 50.00μm
APC Angle 7.700deg 8.300deg
Key Error -0.500deg 0.500deg


4. Details Picture

Machine Polishing 12F Fiber Optic Pigtail 0.9mm G657A1 Distribution Cable

Product Advantages

◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
Machine Polishing 12F Fiber Optic Pigtail 0.9mm G657A1 Distribution Cable
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
