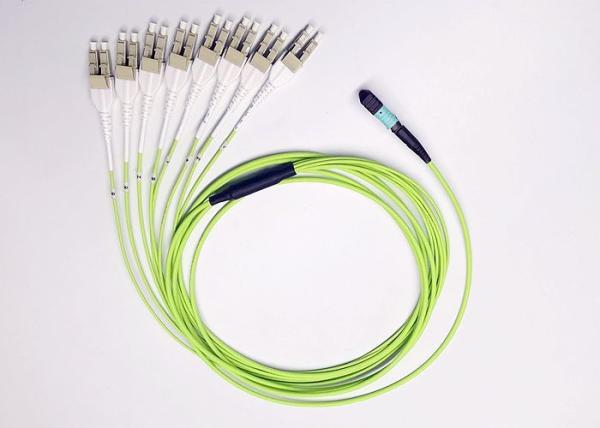

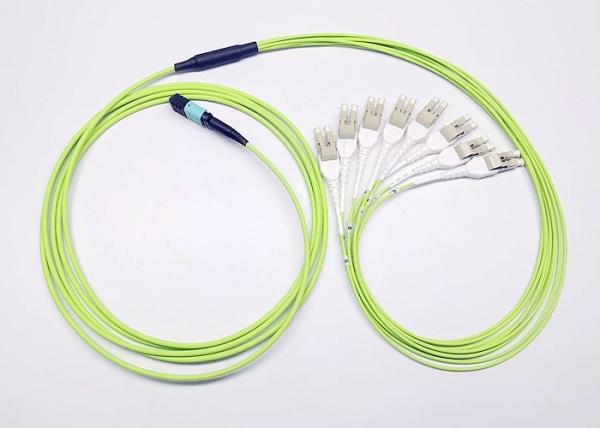

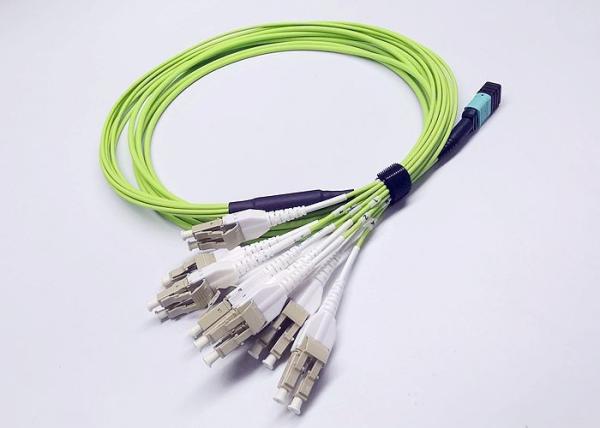

16 core MPO low loss to LC uniboot duplex MPO fanout cable 3.0mm multimode OM5 LSZH cable
Multifiber, 16 fibers MPO-LC fanout cable assemblies are terminated with Senko brand MPO male connectors and 8*LC duplex connectors, which are typically utilized in the MPO/MTP® cassettes, racks or backbone trunk assemblies with the active equipment ports. Multimode OM5 fiber optic cables ensure the well transmission of the light.
Features
◆ Polarity options are TIA style A, B, or C (Method B is standard)
◆ With 12 fiber, 16 fiber, and 24 fiber MPO/MTP® connector standard
◆ Available in Senko, Nissin, US Conec, EZconn, Sanwa, Sancall brand connector
◆ Available in OS1/2, OM2, OM3-150, OM3-300, OM4 and OM5
◆ Available in FC, LC, SC, ST, MU, E2000 and MPO/MTP®
Application

◆ Jumper Connection
◆ Data Center Cabling
◆ MPO/MTP® cassettes, racks
◆ Telecommunication Network
◆ 40G, 100G and QSFP transceiver
Specification

1. Operating & Storage Temperature

Parameters Min Max Unit
1 Operating Temperature -40 70 °C
2 Storage Temperature -40 70 °C

2. Optical Performance

Item Parameters
MPO/MTP® Connector SM(1310nm/1550nm) MM(850nm)
Standard Low Loss Standard Low Loss
Insertion Loss Typical 0.5dB 0.2dB 0.5dB 0.2dB
Maximum 0.7dB 0.35dB 0.7dB 0.35dB
Return Loss >=60dB for APC --
>=40dB for PC >=20dB for PC
Male/Female Male: with Pin; Female: without Pin


LC/FC/SC Connector
Item SM MM
1310nm/1550nm IL(dB) 1310nm/1550nm RL(dB) 850nm IL(dB) 850nm RL(dB)
PC <=0.2 >=50 <=0.3 >=25
APC <=0.3 >=60 N/A N/A

3. Geometry Parameters

MT
Measurement Pass/Fail Limits
Parameters Min Max
Radius of Curvature Long Axel 2000mm

∞
Short Axel 50mm

∞
Angle Long Axel -0.2° 0.2°
Short Axel APC 7.8° 8.2°
PC -0.2° 0.2°
Fiber Height 1000nm 3000nm
Different Fiber Height N/A 500nm
Adjacent Fiber Height N/A 300nm
Ferrule Length 7.9mm N/A

FC/LC/SC UPC
Item Pass/Fail
Parameters Min Max
FC ROC 10.00mm 25.00mm
LC ROC 7.00mm 25.00mm
Fiber Height -100.00nm 50.00nm
Apex Offset 0.00μm 50.00μm

FC/SC/LC APC
Item Pass/Fail
Parameters Min Max
ROC 5.0mm 12.00mm
Fiber Height -100.0nm 50.0nm
Apex Offset 0.00μm 50.00μm
APC Angle 7.700deg 8.300deg
Key Error -0.500deg 0.500deg


4. Connector Detail

16 Core Low Loss Duplex Patch Cord , 3.0mm Multimode LSZH Om5 Fiber Optic Cable

16 Core Low Loss Duplex Patch Cord , 3.0mm Multimode LSZH Om5 Fiber Optic Cable

Product Advantages

◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
16 Core Low Loss Duplex Patch Cord , 3.0mm Multimode LSZH Om5 Fiber Optic Cable
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
