12 Fiber MPO MTP Patch Cord MPO-LC UPC 0.9mm Fiber G657A1 G657B3
12 Fiber MPO MTP Patch Cord MPO-LC UPC 0.9mm Fiber G657A1 G657B3
12 Fiber MPO MTP Patch Cord MPO-LC UPC 0.9mm Fiber G657A1 G657B3
12 Fiber MPO MTP Patch Cord MPO-LC UPC 0.9mm Fiber G657A1 G657B3
Specifications
Brand Name :
OEM
Model Number :
MPO/APC-M-LC/UPC-12F-0.9-0.38M-SM
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Support sample order
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3000 connectors/day
Delivery Time :
3-7 work days
Packaging Details :
Individual packaging with Ziplock Bag
Fiber Type :
G657A1 G652D g657A2,G657B2, G675b3
Cable Material :
LSZH
Fiber Count :
12 Fibers
Polish Type :
UPC /PC
Insertion Loss :
Standard Loss
MPO Connector Brand :
US Conec, Senko
Description

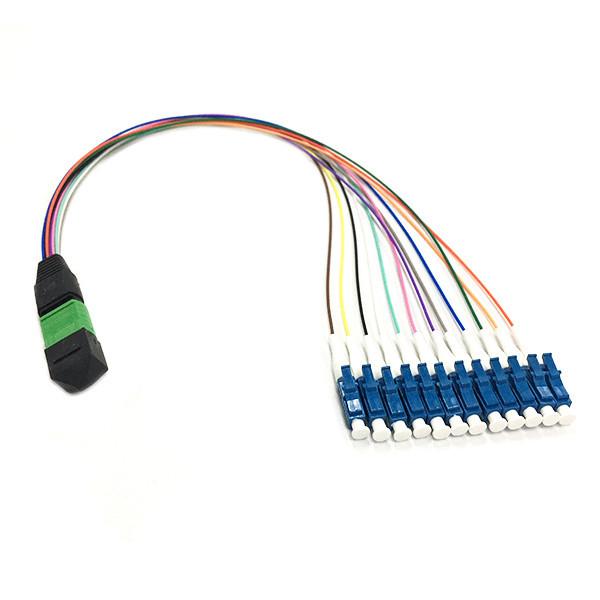

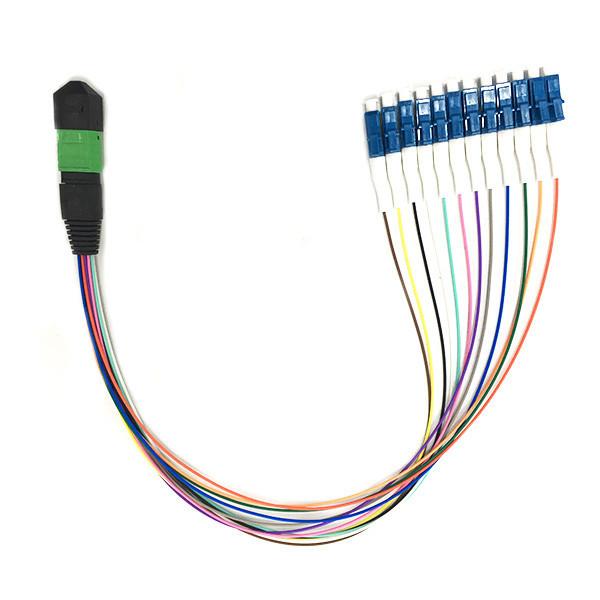

12F MTP® male to 12F LC/UPC MPO Breakout / harness cable 0.9mm SM G657A1 LSZH cable
0.9mm singlemode 12F MTP® harness is mainly installed in the MPO fiber optic cassette, panels or backbone trunk assemblies with the active equipment ports, saving costly data centre rack space and easing fibre management. US Conec brand MPO connector piece parts and ferrule ensure the good optical performance, and at the same time it is cost-effective. Every MPO connector of ORC is 100% tested under the 3D interferometer equipment with traceable data.
Features
◆ Polarity options are TIA style A, B, or C (Method B is standard)
◆ Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
◆ Customized for length, staggering, connector type, breakout style, fiber count, and labeling
◆ Available in OS1/2, OM2, OM3 and OM4
◆ Available in FC,LC, SC, ST, MU, and MTP
Application

◆ 40/100G Optical Modules Connectivity
◆ Data Center Cabling
◆ Cassettes And Rack mount
◆ Telecommunication Network
Specification

1. Operating & Storage Temperature

Parameters Min Max Unit
1 Operating Temperature -40 70 °C
2 Storage Temperature -40 70 °C

2. Optical Performance

Item Parameters
MPO/MTP® Connector SM(1310nm/1550nm) MM(850nm)
Standard Low Loss Standard Low Loss
Insertion Loss Typical 0.5dB 0.2dB 0.5dB 0.2dB
Maximum 0.7dB 0.35dB 0.7dB 0.35dB
Return Loss >=60dB for APC --
>=40dB for PC >=20dB for PC
Male/Female Male: with Pin; Female: without Pin


LC/FC/SC Connector
Item SM MM
1310nm/1550nm IL(dB) 1310nm/1550nm RL(dB) 850nm IL(dB) 850nm RL(dB)
PC <=0.2 >=50 <=0.3 >=25
APC <=0.3 >=60 N/A N/A

3. Geometry Parameters

MT
Measurement Pass/Fail Limits
Parameters Min Max
Radius of Curvature Long Axel 2000mm

∞
Short Axel 50mm

∞
Angle Long Axel -0.2° 0.2°
Short Axel APC 7.8° 8.2°
PC -0.2° 0.2°
Fiber Height 1000nm 3000nm
Different Fiber Height N/A 500nm
Adjacent Fiber Height N/A 300nm
Ferrule Length 7.9mm N/A

FC/LC/SC UPC
Item Pass/Fail
Parameters Min Max
FC ROC 10.00mm 25.00mm
LC ROC 7.00mm 25.00mm
Fiber Height -100.00nm 50.00nm
Apex Offset 0.00μm 50.00μm

FC/SC/LC APC
Item Pass/Fail
Parameters Min Max
ROC 5.0mm 12.00mm
Fiber Height -100.0nm 50.0nm
Apex Offset 0.00μm 50.00μm
APC Angle 7.700deg 8.300deg
Key Error -0.500deg 0.500deg


4. Connector Detail

12 Fiber MPO MTP Patch Cord MPO-LC UPC 0.9mm Fiber G657A1 G657B3

12 Fiber MPO MTP Patch Cord MPO-LC UPC 0.9mm Fiber G657A1 G657B3

Product Advantages

◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
12 Fiber MPO MTP Patch Cord MPO-LC UPC 0.9mm Fiber G657A1 G657B3
ORC Production Show
12 Fiber MPO MTP Patch Cord MPO-LC UPC 0.9mm Fiber G657A1 G657B3
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
Product tags
