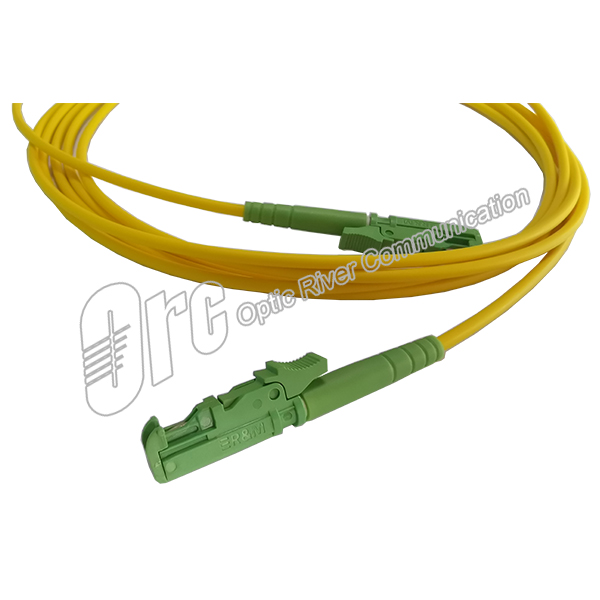

E2000 Optic Patch Cord SM Simplex LSZH G652D G652A 3.0mm Fiber Optic Jumper
E2000 Optic Patch Cord SM Simplex LSZH G652D G652A 3.0mm Fiber Optic Jumper
Specifications
Brand Name :
OEM
Model Number :
E2000-E2000 fiber patchcord
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Support sample order
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000,000 connectors/month
Delivery Time :
3-7 work days
Packaging Details :
Individual packaging with Ziplock Bag
Fiber Type :
Single Mode Fiber
Jacket Material :
PVC/LSZH/OFNP/OFNR
Fiber Count :
1 Fibers
Polishing :
APC
Jacket Color :
Yellow
Connector Style :
E2000
Warranty :
1 year
Boot color :
GreenLeng
Length :
Customized
Description

Single Mode Simplex 3.0mm Fiber Optic Patch Cord For Telecom Network

E2000-E2000 Fiber Jumper Single Mode Simplex 3.0mm 2.0mm

Description

Standard fiber optic patch cables are designed for data center, enterprise, FTTx, LAN and WAN, CATV network, telecom network applications etc. which require quick infrastructure deployment such as main, horizontal, and zone distribution areas.

Fiber optic patch cables, manufactured and tested in compliance with TIA 604, IEC 61754 and YD/T industry standards, have OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel. Every termination is through rigorous parameter test to ensure the highest network performance.

Applications

◆ Telecom

◆ LAN, WAN

◆ CATV

◆ Sensor Systems

◆ Measuring Technique

◆ Utilities, Railways

Single mode VS Multi mode

Type

Core/Cladding(um)

Fast Ethernet

100Mb

Gigabit

GbE

10Gigabit

10GbE

40Gigabit

40GbE

100Gigabit

100GbE

40G

SWDM4

100G

SWDM4

Multimode

OM1

62.5/125

2km

275m

33m

-

-

-

-

OM2

50/125

2km

550m

82m

-

-

-

-

OM3

2km

800m

300m

100m

100m

240m

75m

OM4

2km

1100m

400m

150m

150m

350m

100m

OM5

2km

1100m

400m

150m

150m

440m

150m

Singlemode

OS1/OS2

9/125

40km

100km

40km

40km

40km

-

-

Optical and mechanical performance of LSH fiber jumper

Item

Singel mode

Multi mode

Insertion loss

≤0.3 dB

≤0.3 dB

Return loss

≥50 dB(UPC); ≥60 dB(APC)

≥30 dB

Ceramic ferrule spec

125.5um concentricity deviations:＜1um

127um concentricity deviations:＜3um

Insert-pull test

500 times ＜0.3dB

Operation temperature

-40℃～+85℃

Suitable fiber

PC/APC(9/125um)

PC(50/125um,62.5/125um



Features

◆ CATV

◆ Active dvice termination

◆ Telecommunication networks

◆ Metro

◆ Local Area Networks(LANs)

◆ Data Processing networks

◆ Test Equipment

◆ Premise installations.

◆ Wide Area Networks(WANs)

Standard package
E2000 Optic Patch Cord SM Simplex LSZH G652D G652A 3.0mm Fiber Optic Jumper

E2000 Optic Patch Cord SM Simplex LSZH G652D G652A 3.0mm Fiber Optic Jumper

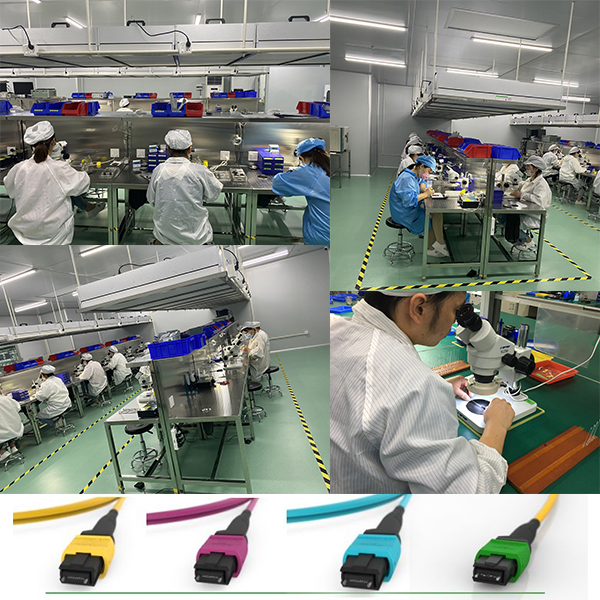

Factory Show

E2000 Optic Patch Cord SM Simplex LSZH G652D G652A 3.0mm Fiber Optic Jumper
