ORC 96 Fiber Breakout Cable 25.5mm LSZH 96 Core Fiber Distribution Cable
ORC 96 Fiber Breakout Cable 25.5mm LSZH 96 Core Fiber Distribution Cable
Specifications
Brand Name :
OEM
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Support sample order
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Delivery Time :
3-7 work days
Packaging Details :
1KM / 2KM or other contracted length per roll
Fiber Type :
G652/G657/G655/A1a/A1b
Cable Material :
LSZH
Fiber Count :
96 core
Operation Temperature :
-20℃-+60℃
Jacket / Buffer Color :
meets the requirement of relevant standards
Cable Dimension :
25.5±1.0mm
Description

Used in indoor cabling, especially used as distribution cable.

25.5mm LSZH 96 core distribution cable
Features
◆ Good mechanical and environmental characteristics;
◆ Flame retardant characteristics meet the requirements of relevant standards;
◆ The mechanical characteristics of jacket meet the requirements of relevant standards;
◆ Soft, flexible, easy to lay and splice, and with big capacity data transmission;
◆ Meet various requirements of market and clients
Application

Used in indoor cabling, especially used as distribution cable.

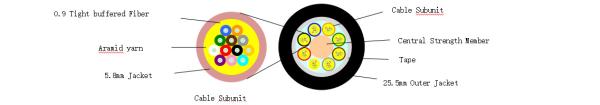

Cable Parameters
Items Specifications
Fiber count 96F
Tight-buffered Fiber Dimension 850μm±50μm
Material LSZH
Color All chromatography
Cable subunit Dimension 5.8mm±0.2mm(01#-08#)
Material LSZH
Strength member Aramid yarn
Color Yellow
Printing Marks 01-08
Central strength member FRP
Outer jacket Dimension 25.5±1.0mm
Material LSZH
Color Black

Options
◆ Fiber type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode cable, or other types of fiber;
◆ Jacket material: environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH), environmental halogen flame retardant polyolefin(ZRPO), environmental polyethylene(PE), or other contracted material;
◆ Jacket color: (including color of fiber) meets the requirement of relevant standard, or other contracted color;
◆ Cable dimension: the nominal cable dimension, or other contracted dimension;

Product Advantages

◆ We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆ We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆ Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆ Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
ORC 96 Fiber Breakout Cable 25.5mm LSZH 96 Core Fiber Distribution Cable
FAQ
1. Q: What's your terms of payment?
A: T/T 30% in advance, and rest 70% before delivery. When we reach deeper cooperation, we could support a payment period after authentication.
2. Q: What's your average lead time?
A: Our lead time is controlled within 2-5 working days for the regular products.
3. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
