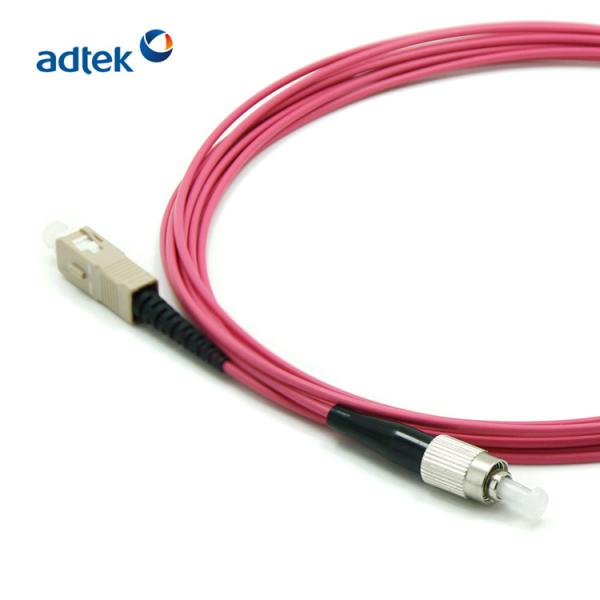

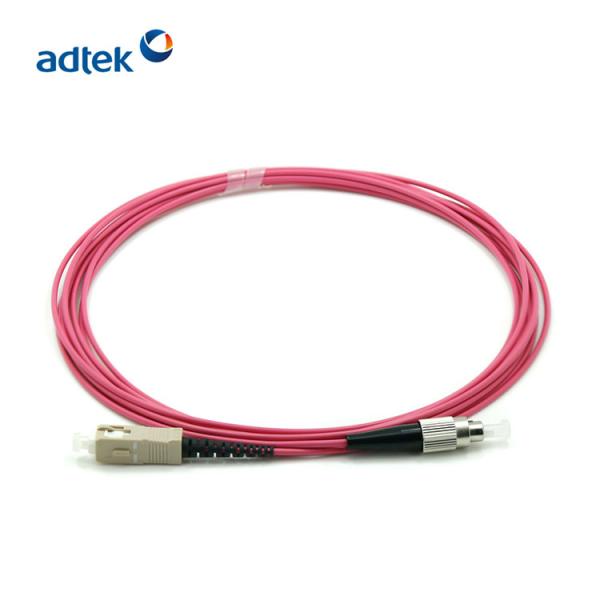

Multimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic Cable
Multimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic Cable
Multimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic Cable
Multimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic Cable
Multimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic Cable
Multimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic Cable
Multimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic Cable
Multimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic Cable
Specifications
Brand Name :
ADTEK/OEM
Model Number :
J1U3U2243MP-VT
Certification :
ISO:9000, RoHs, CE
Place of Origin :
Guangdong, China
MOQ :
1 Piece
Price :
$0.60 - $5.00/ Piece
Payment Terms :
T/T
Supply Ability :
600000 Piece/Pieces per Month
Delivery Time :
3-14days
Packaging Details :
1pc/PE bag Bags packed in Carton Carton Size: 38*38*28cm OEM bag/Carton optional
Return Loss :
PC≥50dB; UPC≥55dB; APC≥60dB
Fiber diameter :
0.9mm, 2.0mm, 3.0mm
Insertion Loss :
≤0.2dB
Name :
Fiber Optic Patch Cord
Fiber Count :
Simplex or Duplex
Polish :
PC/UPC/APC
Real factory :
Yes
Description

Multimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic Cable

1. Advanced foreign grinding technology and grinding equipment are introduced to ensure that the optical fiber's circular grinding offset, the fiber's depression, the fiber's surface without scratches and defects, the size of the radius of curvature of the ceramic capital end face and other grade parameters comply with the standard

2. Components are all optically tested and tested in accordance with ROHS standards.

3. Small insertion loss, large return loss, good interchangeability, excellent repetitive plugging performance, easy to use.

4. Full set of customization services can be provided according to customer requirements.

5. Operating temperature (-40℃~+75℃), storage temperature (-40℃~+85℃)

6. ANSI / TIA / EIA and ISO / IEC requirements for durability, moisture resistance, coupling stress, fiber optic tensile force and adaptability to harsh environments such as humidity, temperature extremes, plugging and unplugging forces and cable tensile stress, impact and vibration.

Range of Mode Single mode or Multi mode
Cable Type Simplex, Duplex Ziocord. or Multi-cores
Connector Style SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface Type PC, UPC, APC
Cable Diameter 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
Outer Jacket PVC /LSZH/OFNP
Jacket Color SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green
Durability 500 cycles(0.2 dB max increase). 1000mate/de mate cycles
Operating Temp. -20 ℃ to +70℃/+85℃ (armored)
Storage Temp.

-40℃ to +85℃

1.What is the Patch cord/Pigtail features?
*Single mode and Multimode
*Cable 0.9mm,2.0mm,2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 cores
*Custom order length
*Cable color green , yellow , orange and customized
*All parts compliant with RoHS
*IEC standard compatible
*GR-326-CORE Compliant
2.What is the Patch cord/Pigtail applications?
*FTTX + LAN
*Optical fiber CATV
*Optical communication system
*Telecommunication

Our Value:

Initiative, Hard working ,Efficiency,Innovation, Grateful, Sharing.

Our Philosophy:

Professional casts quality,cooperation makes win-win future.

Our Solutions:

Fastest, Effective, Reliable, Flexible And Professional OEM/ODM Solutions.

Our Certificate:

ISO9001:2015, ISO14001:2015,OHSAS18001:2007 etc.

Our Team:

We serve our every customer with fastest and most professional response.

Our Patents:

We have 20 patents and we'll go on creating new products to master latest market trend.

Connector Type Performance Level
Standard Elite
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC/FC/ST SM PC ≤0.2 ≥50 ≤0.15 ≥50
UPC ≤0.2 ≥55 ≤0.15 ≥55
APC ≤0.2 ≥60 ≤0.15 ≥60
MM PC ≤0.2 ≥35 ≤0.15 ≥35
MPO/MTP SM APC ≤0.7 ≥60 ≤0.35 ≥60
MM PC ≤0.5 ≥20 ≤0.35 ≥20
MTRJ SM PC ≤0.5 ≥50 / /
MM PC ≤0.5 ≥35 / /

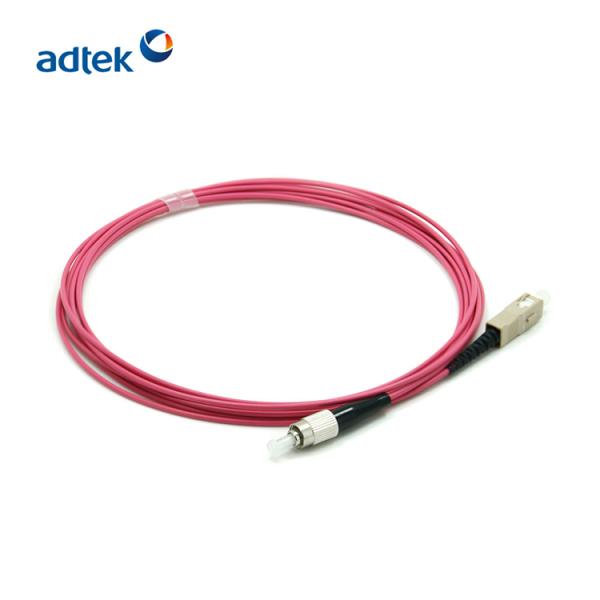

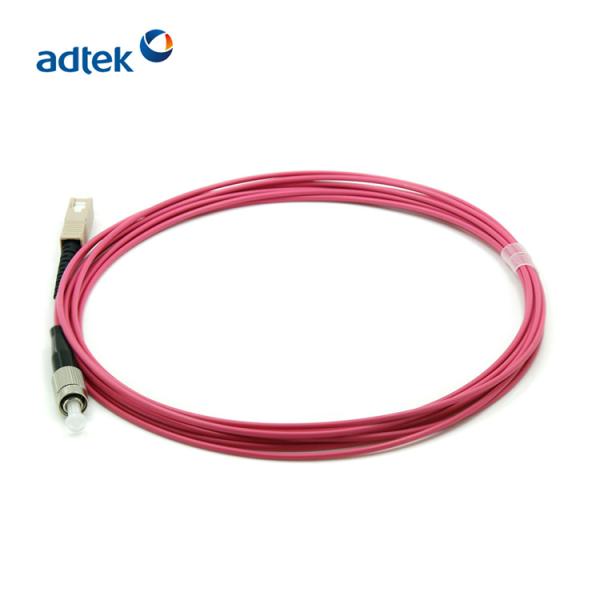

Multimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic Cable

Multimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic Cable

Multimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic CableMultimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic CableMultimode Simplex FC SC Fiber Patch Cord 2.0mm OM4 PVC / LSZH 3M Fiber Optic Cable
