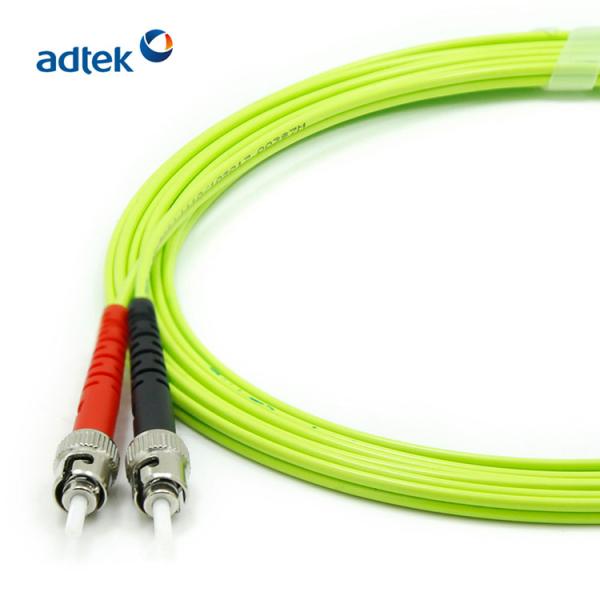

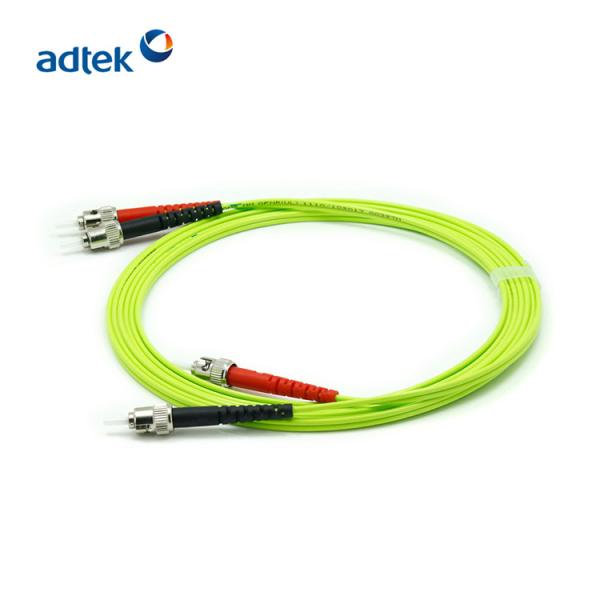

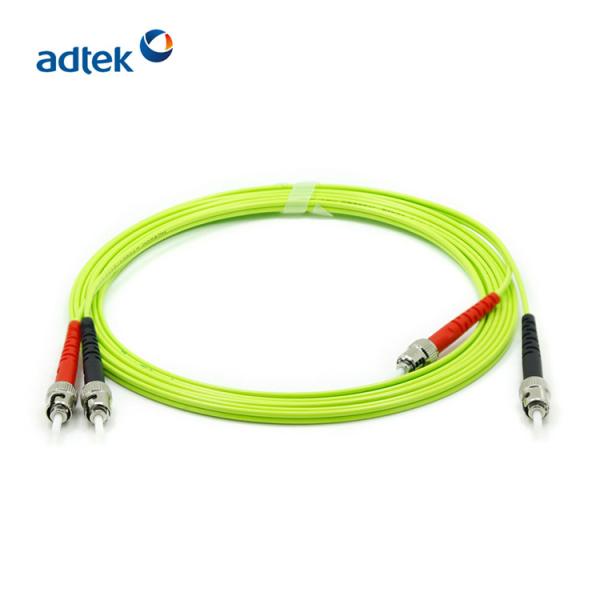

50/125 ST/UPC-ST/UPC OM5 Duplex Multimode Fiber Optic Patch Cord

Fiber optic patch cord is a fiber optic cable capped at both ends with connectors that allow it to be rapidly and conveniently connected to CATV, optical switch, or other telecommunication equipment. With a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box, which is known as "interconnect-style cabling".

Frequency bandwidth,large communication capacity.Low insertion loss, low return loss, long transmission distance.Anti-electromagnetic interference.No crosstalk interference, good confidentially.Small size and light weight.Meet IEC, JIS, Bellcore international standard requirements.Stable signal and environmental.Use standard LC, SC, ST, FC connectors, support simplex or duplex.

1. High precision ceramic insert with small concentricity error and bore diameter to provide better insertion loss and return loss to avoid degradation of transmission performance and damage to optical transceiver devices.
2. Advanced grinding technology and grinding equipment are used to ensure that the surface of the optical fiber is free of scratches and defects, and that the technical parameters such as the circular grinding offset of the fiber, the depression of the fiber and the radius of curvature of the ceramic end face meet the specified standards.
3. The components are all optically tested and tested in accordance with ROHS standards.
4. ANSI / TIA / EIA and ISO / IEC requirements for durability, moisture resistance, coupling stress, fiber tensile force and adaptability to harsh environments such as humidity, temperature extremes, insertion and removal forces and cable tensile stress, impact and vibration.
5. Low insertion loss, high return loss, good interchangeability, excellent repetitive plugging performance and ease of use.
6. Operating temperature (-40℃~+75℃), storage temperature (-40℃~+85℃).
