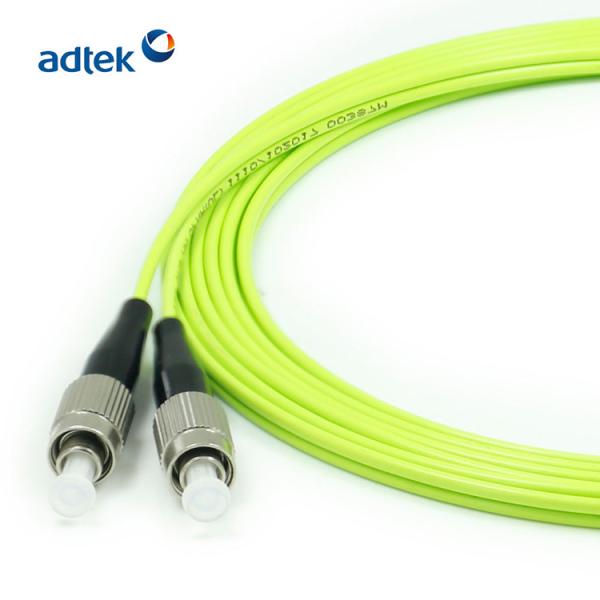

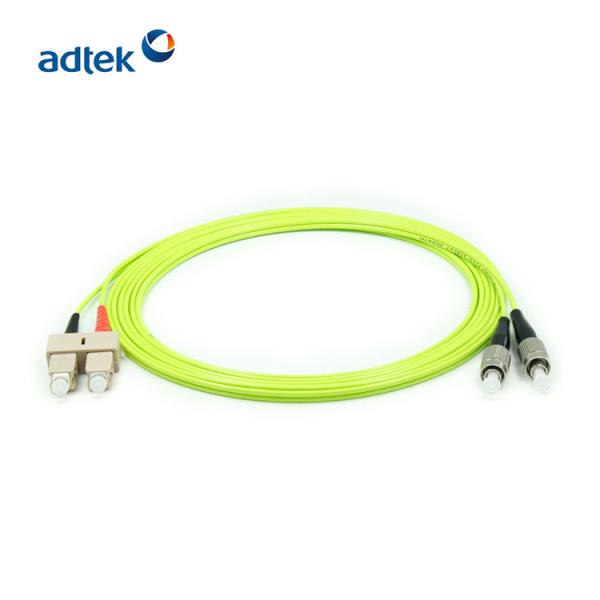

OM5 Duplex 2.0mm Lemon Green Optical Fiber Patch Cord SC To FC UPC Jumper Wires
OM5 Duplex 2.0mm Lemon Green Optical Fiber Patch Cord SC To FC UPC Jumper Wires
OM5 Duplex 2.0mm Lemon Green Optical Fiber Patch Cord SC To FC UPC Jumper Wires
OM5 Duplex 2.0mm Lemon Green Optical Fiber Patch Cord SC To FC UPC Jumper Wires
OM5 Duplex 2.0mm Lemon Green Optical Fiber Patch Cord SC To FC UPC Jumper Wires
OM5 Duplex 2.0mm Lemon Green Optical Fiber Patch Cord SC To FC UPC Jumper Wires
OM5 Duplex 2.0mm Lemon Green Optical Fiber Patch Cord SC To FC UPC Jumper Wires
OM5 Duplex 2.0mm Lemon Green Optical Fiber Patch Cord SC To FC UPC Jumper Wires
Specifications
Brand Name :
ADTEK/OEM
Model Number :
J1U3U2273MP-GN
Certification :
ISO, CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
1 Piece
Price :
600000 Piece/Pieces per Month
Payment Terms :
T/T
Supply Ability :
600000 Piece/Pieces per Month
Delivery Time :
3-14days
Packaging Details :
1pc/PE bag Bags packed in Carton Carton Size: 38*38*28cm OEM bag/Carton optional
Length :
1m 2m 3m or Customized
Fiber diameter :
0.9mm, 2.0mm, 3.0mm
Insertion Loss :
≤0.2dB
Name :
Optical Fiber Patch Cord
Polish or Ferrule Interface Type :
PC, UPC, APC
Description

OM5 Duplex 2.0mm Lemon Green Optical Fiber Patch Cord SC To FC UPC Jumper Wires

1. Products use imported ceramic pins, imported high-quality fiber optic cable.

2. Introduction of foreign advanced grinding technology and grinding equipment, to ensure that the optical fiber circular grinding offset, fiber depression, the surface of the fiber without scratches and defects, the size of the radius of curvature of the end face of the ceramic capital and other grade parameters in line with standard regulations.

3. With low insertion loss, high return loss, good interchangeability, excellent repetitive plugging performance, easy to use.

4. Can provide a full set of customized services according to customer requirements. 5.

5. All components are optically tested and tested in accordance with ROHS standards.

6. Meet ANSI / TIA / EIA and ISO / IEC requirements for durability, moisture resistance, coupling stress, fiber optic tensile force and adaptability to harsh environments such as humidity, temperature extremes, plugging and unplugging forces and cable tensile stress, impact and vibration.
7. Adapted to the operating temperature (-40℃~+75℃), storage temperature (-40℃~+85℃).

Range of Mode Single mode or Multi mode
Cable Type Simplex, Duplex Ziocord. or Multi-cores
Connector Style SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface Type PC, UPC, APC
Cable Diameter 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
Outer Jacket PVC /LSZH/OFNP
Jacket Color SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green
Durability 500 cycles(0.2 dB max increase). 1000mate/de mate cycles
Operating Temp. -25℃ to +70℃
Storage Temp.

-40℃ to +85℃

Multi Mode Fiber Optic Cable
Application: Fiber optic communication networks/Optical access network/Data processing networks/Premise installations

End-face radius of curvature: 10 mm < R < 30 mm
Apex offset: < 50 μm
Cable material: PVC
Operation temperature: -20 °C to +70 °C

Connector Type Performance Level
Standard Elite
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC/FC/ST SM PC ≤0.2 ≥50 ≤0.15 ≥50
UPC ≤0.2 ≥55 ≤0.15 ≥55
APC ≤0.2 ≥60 ≤0.15 ≥60
MM PC ≤0.2 ≥35 ≤0.15 ≥35
MPO/MTP SM APC ≤0.7 ≥60 ≤0.35 ≥60
MM PC ≤0.5 ≥20 ≤0.35 ≥20
MTRJ SM PC ≤0.5 ≥50 / /
MM PC ≤0.5 ≥35 / /

SC-FC Patch Cord
1. Low insertion loss
2. Using ceramic ferrules

3. The ceramic ferrule has good reliability and good stability

4. Multi functions, Good compatibility

5. 3M/Customized Length

OM5 Duplex 2.0mm Lemon Green Optical Fiber Patch Cord SC To FC UPC Jumper Wires

OM5 Duplex 2.0mm Lemon Green Optical Fiber Patch Cord SC To FC UPC Jumper Wires

Our Value:

Initiative, Hard working ,Efficiency,Innovation, Grateful, Sharing.

Our Philosophy:

Professional casts quality,cooperation makes win-win future.

Our Solutions:

Fastest, Effective, Reliable, Flexible And Professional OEM/ODM Solutions.

Our Certificate:

ISO9001:2015, ISO14001:2015,OHSAS18001:2007 etc.

Our Team:

We serve our every customer with fastest and most professional response.

Our Patents:

We have 20 patents and we'll go on creating new products to master latest market trend.

OM5 Duplex 2.0mm Lemon Green Optical Fiber Patch Cord SC To FC UPC Jumper WiresOM5 Duplex 2.0mm Lemon Green Optical Fiber Patch Cord SC To FC UPC Jumper Wires
