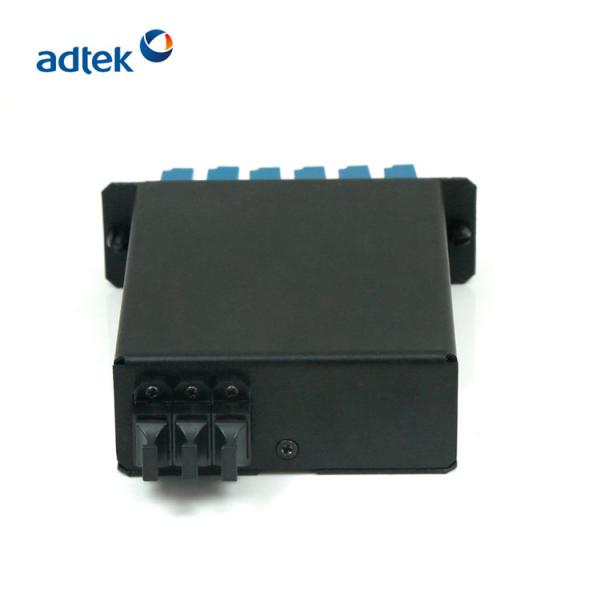

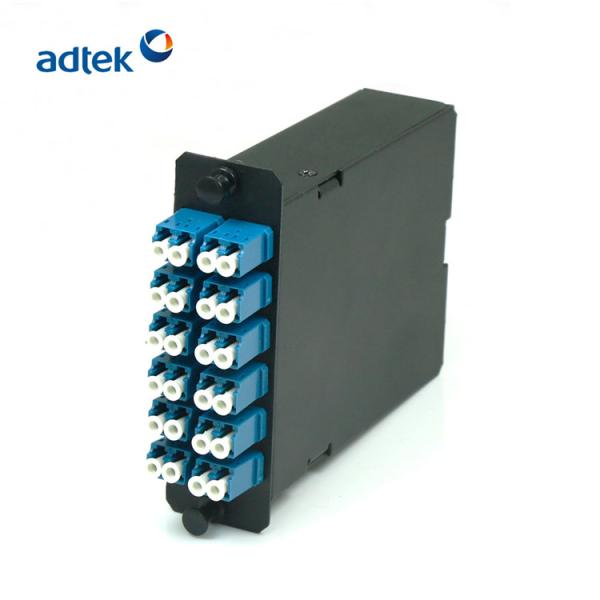

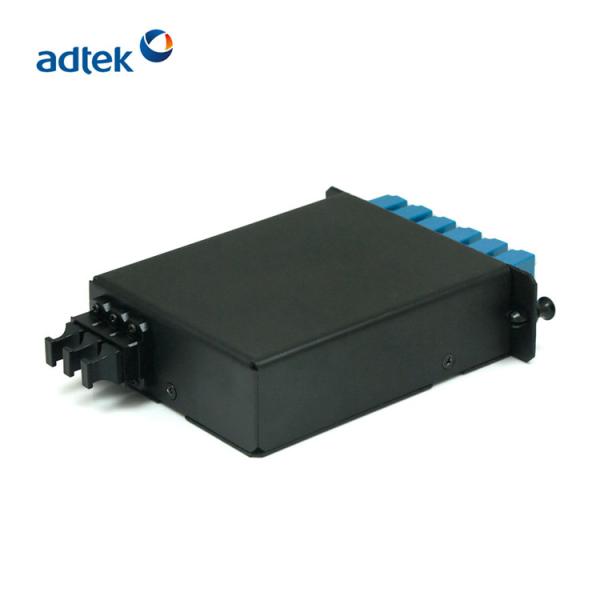

HD 12 Ports 24 Fiber Optic Cassettes SM Full Loaded Fast Installation
HD 12 Ports 24 Fiber Optic Cassettes SM Full Loaded Fast Installation
HD 12 Ports 24 Fiber Optic Cassettes SM Full Loaded Fast Installation
HD 12 Ports 24 Fiber Optic Cassettes SM Full Loaded Fast Installation
HD 12 Ports 24 Fiber Optic Cassettes SM Full Loaded Fast Installation
HD 12 Ports 24 Fiber Optic Cassettes SM Full Loaded Fast Installation
HD 12 Ports 24 Fiber Optic Cassettes SM Full Loaded Fast Installation
HD 12 Ports 24 Fiber Optic Cassettes SM Full Loaded Fast Installation
Specifications
Brand Name :
ADTEK/OEM
Model Number :
Optical Fiber Distribution Box
Certification :
ISO 9000 , RoHs, CE
Place of Origin :
Guangdong, China
MOQ :
50Piece
Price :
$0.60 - $3.00/ Piece
Payment Terms :
T/T
Supply Ability :
600000 Piece/Pieces per Month
Delivery Time :
3-14days
Packaging Details :
Dimensions(W*D*H):102*30*103
Condition :
New
Name :
Fiber Optic Cassettes
Surface Polishing :
PC,UPC,APC
Connector Type :
SC FC ST LC
Description

HD 12 Ports 24 fibers fiber optic cassttes SM ,full loaded

Technical Specification
Optical Performance
Performance Level Standard Elite
Connector Type
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC SM PC ≤0.2 ≥50 ≤0.15 ≥50
UPC ≤0.2 ≥55 ≤0.15 ≥55
APC ≤0.2 ≥60 ≤0.15 ≥60
MM PC ≤0.2 ≥35 ≤0.15 ≥35
MPO/MTP SM APC ≤0.7 ≥60 ≤0.35 ≥60
MM PC ≤0.5 ≥20 ≤0.35 ≥20

Description : - The MPO/MTP Cassette provide provide a quick, reliably high performance and efficient way to deploy up to 24 LC or 12 SC fiber ports.
- They are available in Multi-mode and Single-mode cable.

Features:
* Available in 12/24/48 fiber versions.
* High-density, Easy and fast installation ;
* Field connections with guaranteed quality and simplifies fiber routing.
* Modular system management, easy reconfiguration for moves, adds and changes.
