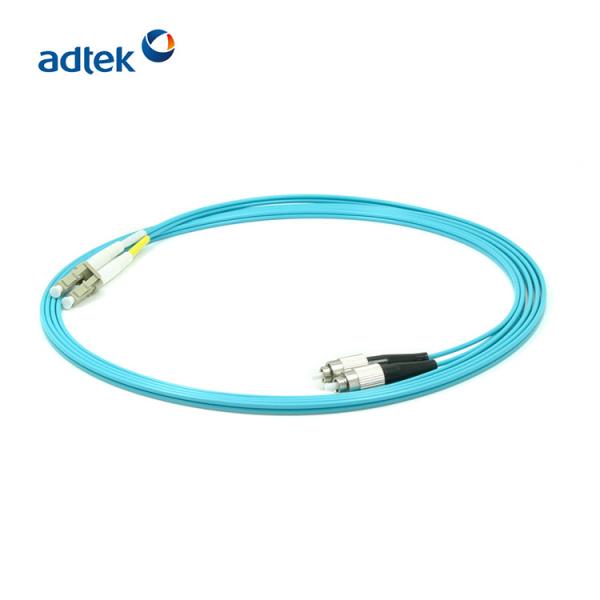

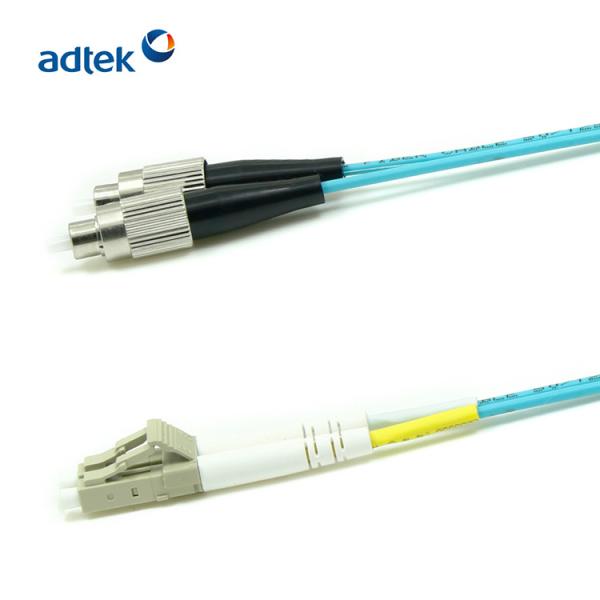

Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper
Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper
Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper
Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper
Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper
Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper
Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper
Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper
Specifications
Brand Name :
ADTEK/OEM
Model Number :
J1U1U2233P-AQ
Certification :
ISO,CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
1 Piece
Price :
$1.50 - $4.50/ Piece
Payment Terms :
T/T
Supply Ability :
1000000 Piece/Pieces per Month
Delivery Time :
3-14days
Packaging Details :
Individual 1PC in plastic bag, then in carton,Outer cartons(38*38*28cm carton size) and OEM are acceptable.
Option Cable Type :
Simplex,Duplex Bundle 4~144 multi-fibers
Testing :
Interferometer /Insertion and Return loss test
Option Mode Type :
OS1/OS2/OM1/OM2/OM3/OM4
Product name :
Fiber Optic Patch Cord, Installing fiber optic cable
Description

Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper

Product Description
Optical Fiber Patch Cord is an optical fiber cable that has fiber connectors installed both ends. General use of these cable assemblies includes the interconnection of fiber cable systems and optics-to-electronic equipment.
Item SM MM
Polishing Type PC UPC APC PC
Insertion Loss ≤0.2dB (Typical ≤0.1dB ≤0.3dB/0.5dB(MTRJ)
Custom
Return Loss ≤-45dB ≤-55dB ≤-65dB /
Custom
Durability(500 Mating) 0.2 dB Max. Increase
Operating Temperature -20°C~+75°C
Storage Temperature -40°C~+75°C
Remark: Ferrule Concentricity<1μm
Ferrule inner diameter tolerance+1/ 0μm
Ferrule outer diameter tolerance±0.5μm
Insertion loss<0.1dB random mating

Features
---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC


Applications
Gigabit Ethernet; Active device termination;
Telecommunication networks; Video; ODF
Multimedia; Premise installations; Local area networks;
FTTH FTTX applications; CATV

It is a device used to make removable (movable) connections between optical fibers. It is a precision buttressing of the two ends of an optical fiber so that the optical energy output from the transmitting fiber can be coupled to the receiving fiber to the maximum extent possible and the impact on the system caused by its intervention in the optical link can be minimized. Fiber optic patch cable is a passive optical device to achieve the active connection between optical fibers, it also has the function of connecting optical fibers to active devices, optical fibers to other passive devices, optical fibers to systems and instruments. It also has the function of connecting fiber to active devices, fiber to other passive devices, fiber to systems and instruments.

Type
Performance		 Singlemode APC Multimode
Standard Loss Low Loss Standard Loss Low Loss
Insertion loss Maximum Value ≤0.7dB ≤0.35dB ≤0.5dB ≤0.35dB
Typical Value 0.4dB 0.2dB 0.35dB 0.2dB
Return Loss ≥60 dB ≥20dB
Test Wavelength 1310nm / 1550nm 850nm / 1300nm

Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper

Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper

Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper

ADTEK

Shenzhen ADTEK Technology Co., Ltd. was established in 2007,is a leading professional manufacturer and exporter from China,With over 12 years' experience in the export market. ADTEK has been continually growing and expanding the product lines to keep up the pace of industry trends. leading network connection products and solutions

Ultra-large bandwidth, ultra-low loss, ultra-high speed, 400G network connection for the next generation.

Exhibitions

Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper

Duplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex JumperDuplex LC/UPC-FC/UPC OM3 Fiber Optic Cable 62.5/125um Multimode Duplex Jumper
