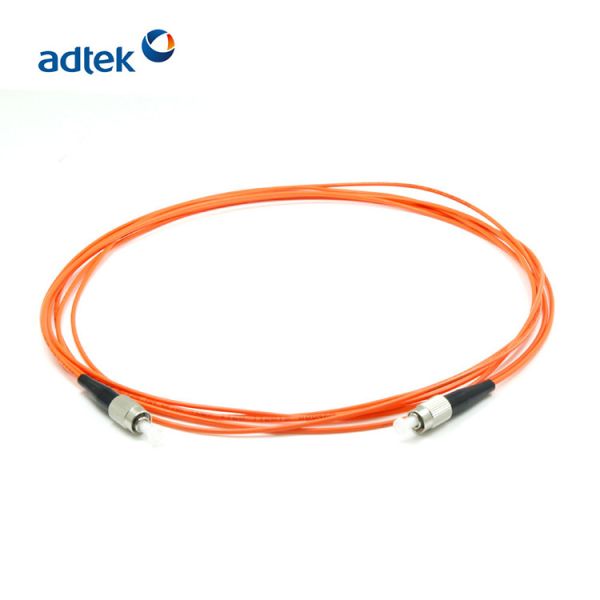

FC/UPC To FC/UPC SX Fiber Patch Cable OM1 OM2 Orange Test Wavelength 1310nm / 1550nm

It is a device used to make removable (movable) connections between optical fibers. It is a precision buttressing of the two ends of an optical fiber so that the optical energy output from the transmitting fiber can be coupled to the receiving fiber to the maximum extent possible and the impact on the system caused by its intervention in the optical link can be minimized. Fiber optic patch cable is a passive optical device to achieve the active connection between optical fibers, it also has the function of connecting optical fibers to active devices, optical fibers to other passive devices, optical fibers to systems and instruments. It also has the function of connecting fiber to active devices, fiber to other passive devices, fiber to systems and instruments.

Description

A patch cord is a fiber optic cable used to attach one device to another for signal routing.
FC stands for Fixed Connection. It is fixed by way of a threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.

Characteristics
1. Simplex and duplex connector available
2. High precision of mechanical dimensions.
3. Good exchange ability and good durability;
4. Low Insertion Loss, High temperature Stability and Good exchangeability.
5 Fan-out Available, Pigtail Available, Various
Boot(cable) Size Available

1. Using imported ceramic pins, high-quality fiber optic cable, providing better insertion loss and return loss, avoiding the degradation of transmission performance and damage to optical transceiver devices.

2. Advanced foreign grinding technology and grinding equipment, to ensure that the optical fiber circular grinding offset, fiber depression, the surface of the fiber without scratches and defects, the size of the radius of curvature of the ceramic end face and other grade parameters in line with standard regulations.

3. Small insertion loss, high return loss, good interchangeability, excellent repetitive plugging performance, easy to use.

4. Provide a full set of customized services according to customer requirements

5. All components are optically tested and tested in accordance with ROHS standards.
6. Comply with ANSI / TIA / EIA and ISO / IEC for durability, moisture resistance, coupling stress, fiber optic tensile force and adaptability to harsh environments such as humidity, temperature extremes, plugging and unplugging forces and cable tensile stress, impact and vibration requirements.

7. Operating temperature (-40℃~+75℃), storage temperature (-40℃~+85℃)
